C-1549

LARGE STAINLESS STEEL PADLOCK

C-1549-RC

LARGE STAINLESS STEEL PADLOCK

LARGE STAINLESS STEEL PADLOCK

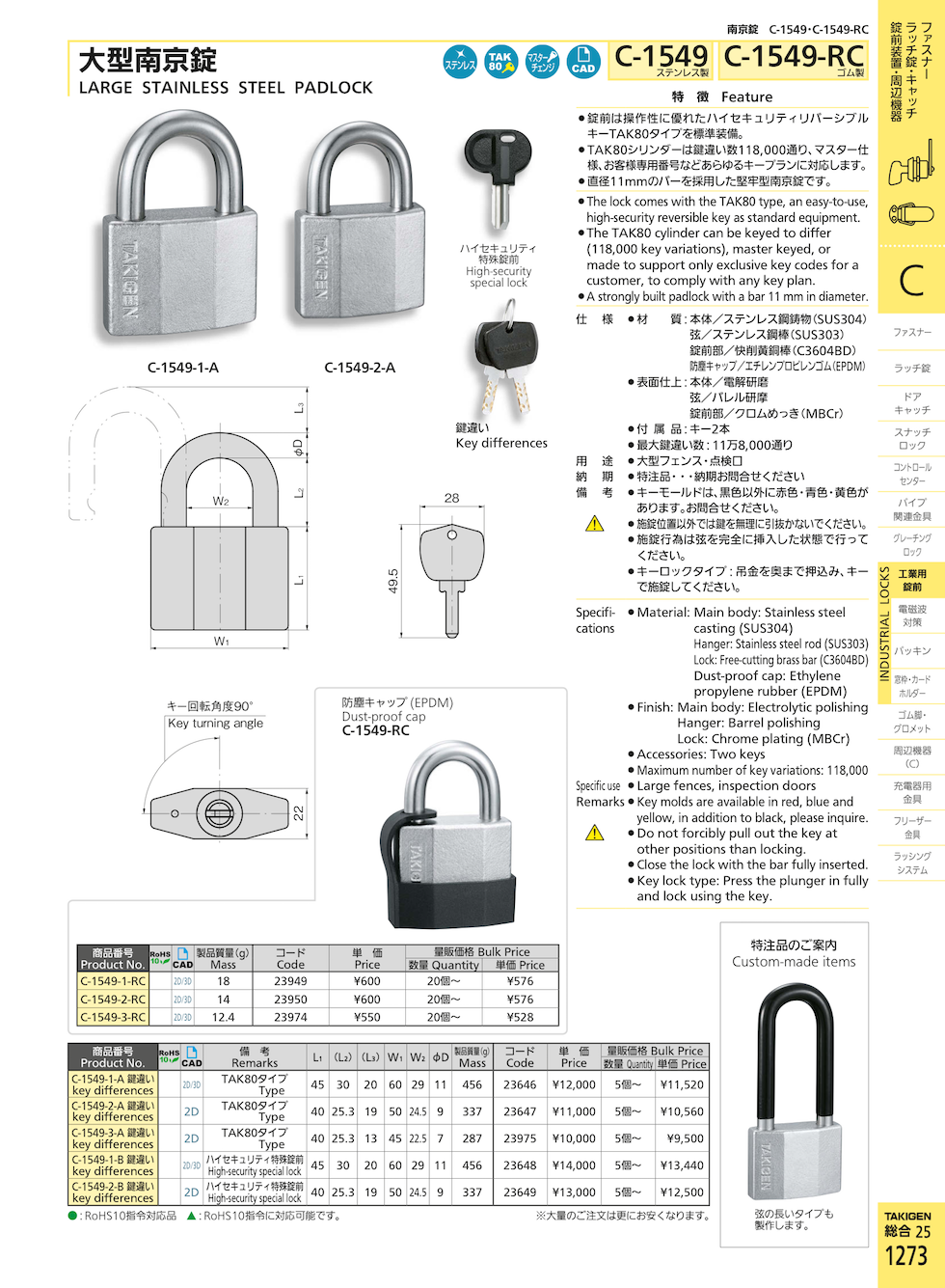

LARGE STAINLESS STEEL PADLOCK Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-1549-1-RC 23949

Request for Quote

C-1549-2-RC 23950

Request for Quote

C-1549-3-RC 23974

Request for Quote

C-1549-1-A key differences TAK80 Type 23646

Request for Quote

C-1549-2-A key differences TAK80 Type 23647

Request for Quote

C-1549-3-A key differences TAK80 Type 23975

Request for Quote

C-1549-1-B key differences High-security special lock 23648

Request for Quote

C-1549-2-B key differences High-security special lock 23649

Request for Quote

Features

    • The lock comes with the TAK80 type, an easy-to-use, high-security reversible key as standard equipment.
    • The TAK80 cylinder can be keyed to differ (118,000 key variations), master keyed, or made to support only exclusive key codes for a customer, to comply with any key plan.
    • A strongly built padlock with a bar 11 mm in diameter.

Specifications

    • Material: Main body: Stainless steel casting (SUS304)
      Hanger: Stainless steel rod (SUS303)
      Lock: Free-cutting brass bar (C3604BD)
      Dust-proof cap: Ethylene propylene rubber (EPDM)
    • Finish: Main body: Electrolytic polishing
      Hanger: Barrel polishing
      Lock: Chrome plating (MBCr)
    • Accessories: Two keys
    • Maximum number of key variations: 118,000

Specific Use

    • Large fences, inspection doors

Remarks

    • Key molds are available in red, blue and yellow, in addition to black, please inquire.
    • Do not forcibly pull out the key at other positions than locking.
    • Close the lock with the bar fully inserted.
    • Key lock type: Press the plunger in fully and lock using the key.
