C-466

CHANGE KEY COIN LOCKS

CHANGE KEY COIN LOCKS

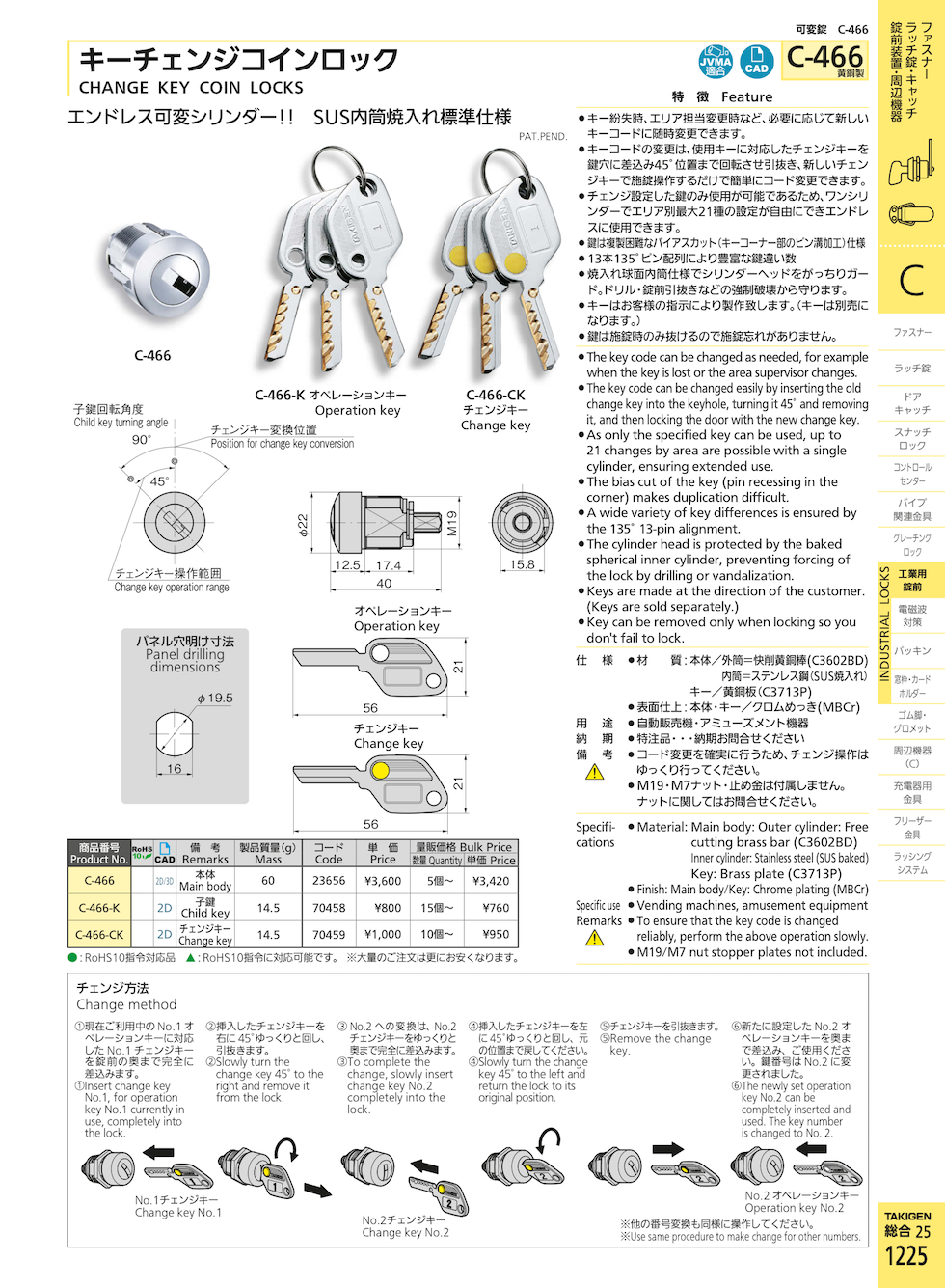

CHANGE KEY COIN LOCKS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-466 Main body 23656

Request for Quote

C-466-K Child key 70458

Request for Quote

C-466-CK Change key 70459

Request for Quote

Features

    • The key code can be changed as needed, for example when the key is lost or the area supervisor changes.
    • The key code can be changed easily by inserting the old change key into the keyhole, turning it 45° and removing it, and then locking the door with the new change key.
    • As only the specified key can be used, up to 21 changes by area are possible with a single cylinder, ensuring extended use.
    • The bias cut of the key (pin recessing in the corner) makes duplication difficult.
    • A wide variety of key differences is ensured by the 135° 13-pin alignment.
    • The cylinder head is protected by the baked spherical inner cylinder, preventing forcing of the lock by drilling or vandalization.
    • Keys are made at the direction of the customer. (Keys are sold separately.)
    • Key can be removed only when locking so you don't fail to lock.

Specifications

    • Material: Main body: Outer cylinder: Free
      cutting brass bar (C3602BD)
      Inner cylinder: Stainless steel (SUS baked)
      Key: Brass plate (C3713P)
    • Finish: Main body/Key: Chrome plating (MBCr)

Specific Use

    • Vending machines, amusement equipment

Remarks

    • To ensure that the key code is changed reliably, perform the above operation slowly.
    • M19/M7 nut stopper plates not included.
