C-1120

PANEL FASTENERS

C-120

PANEL FASTENERS

PANEL FASTENERS

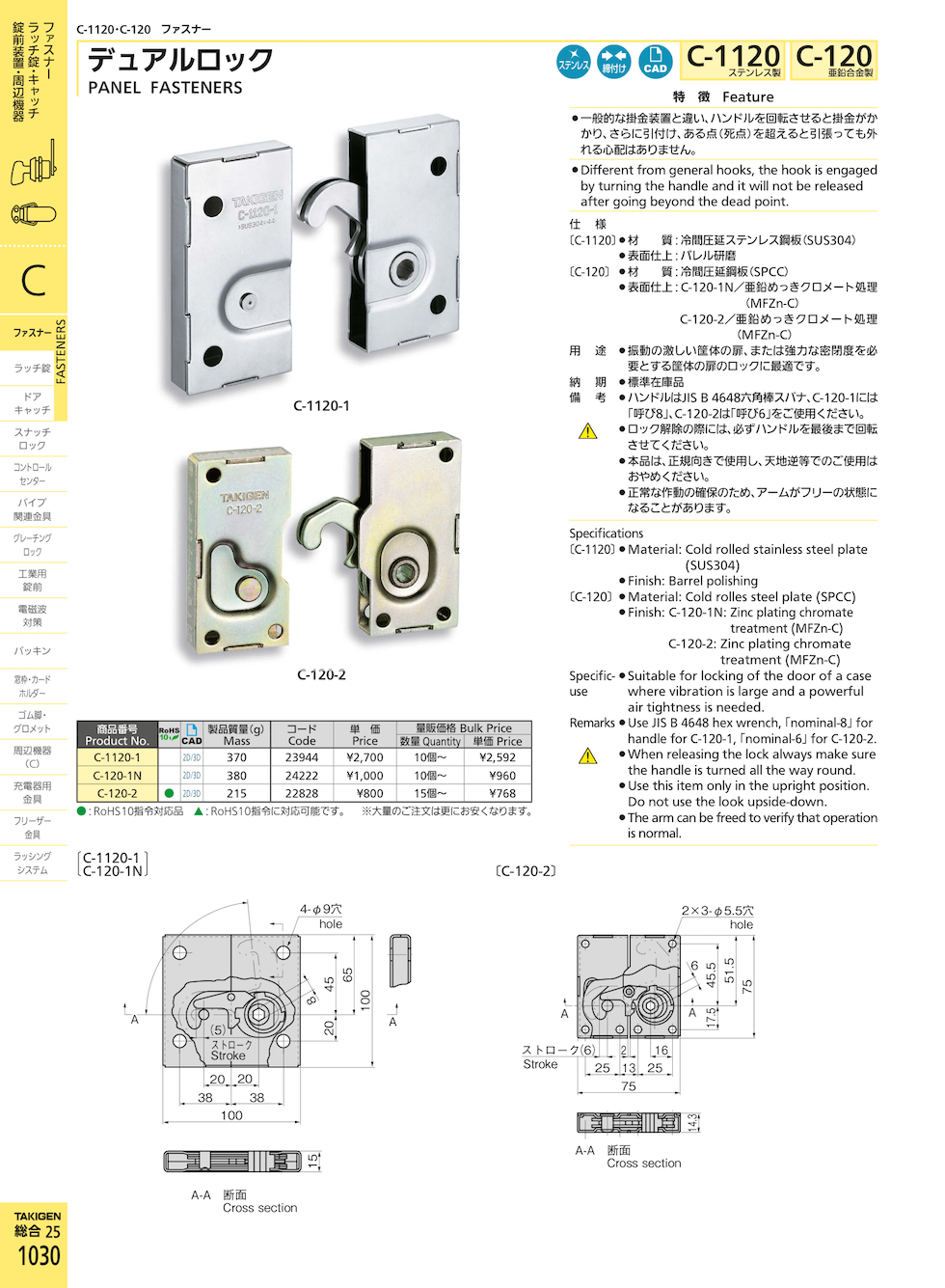

PANEL FASTENERS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-1120-1 23944

Request for Quote

C-120-1N 24222

Request for Quote

C-120-2 22828

Request for Quote

Features

    • Different from general hooks, the hook is engaged by turning the handle and it will not be released after going beyond the dead point.

Specifications

    C-120
    • Material: Cold rolles steel plate (SPCC)
    • Finish: C-120-1N: Zinc plating chromate treatment (MFZn-C)
      C-120-2: Zinc plating chromate treatment (MFZn-C)

    C-1120
    • Material: Cold rolled stainless steel plate (SUS304)
    • Finish: Barrel polishing

Specific Use

    • Suitable for locking of the door of a case where vibration is large and a powerful air tightness is needed.

Remarks

    • Use JIS B 4648 hex wrench, [nominal-8] for handle for C-120-1, [nominal-6] for C-120-2.
    • When releasing the lock always make sure the handle is turned all the way round.
    • Use this item only in the upright position. Do not use the look upside-down.
    • The arm can be freed to verify that operation is normal.
