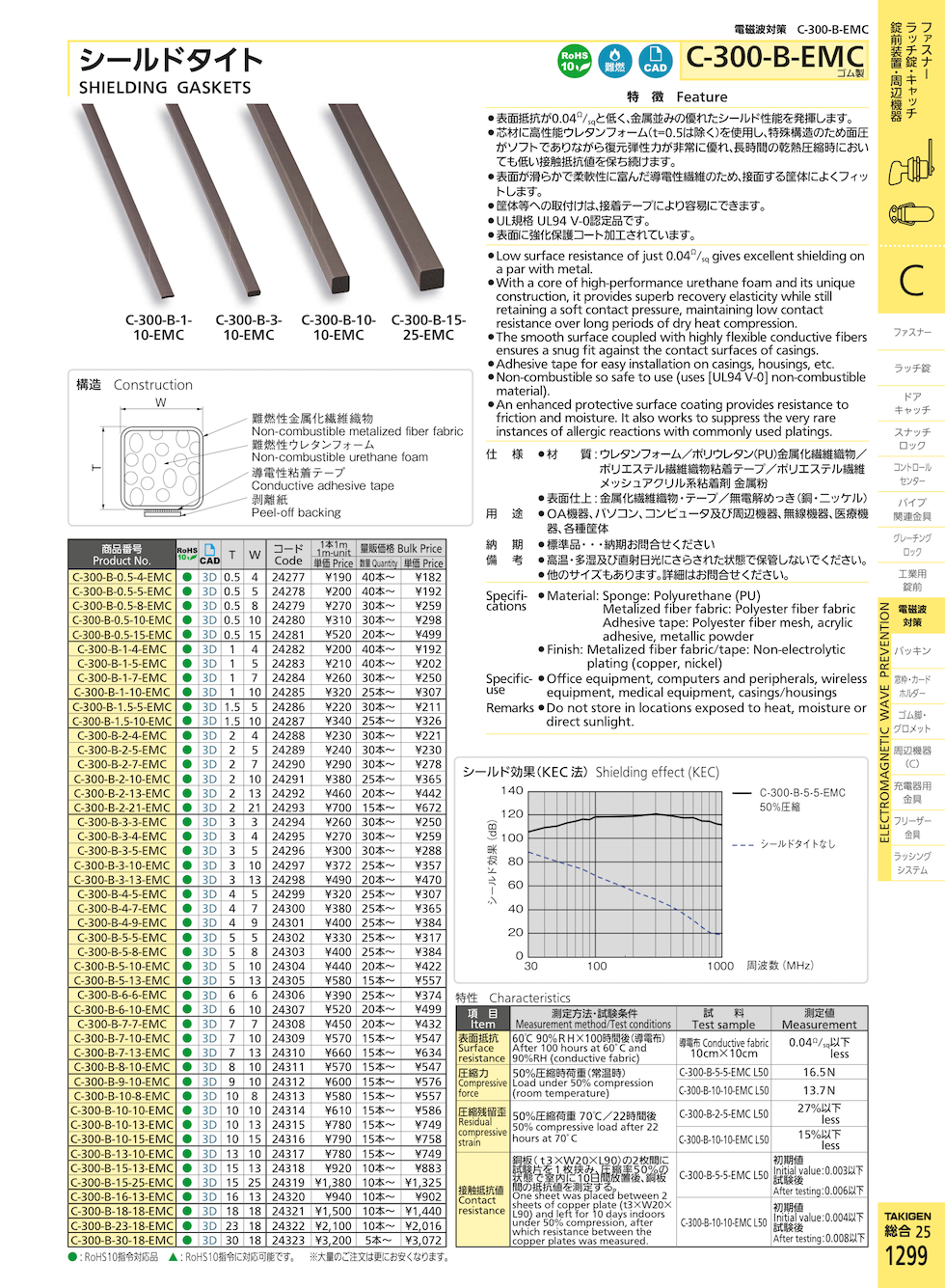

C-300-B-EMC

SHIELDING GASKETS

SHIELDING GASKETS
SHIELDING GASKETS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-300-B-0.5-4-EMC 24277

Request for Quote

C-300-B-0.5-5-EMC 24278

Request for Quote

C-300-B-0.5-8-EMC 24279

Request for Quote

C-300-B-0.5-10-EMC 24280

Request for Quote

C-300-B-0.5-15-EMC 24281

Request for Quote

C-300-B-1-4-EMC 24282

Request for Quote

C-300-B-1-5-EMC 24283

Request for Quote

C-300-B-1-7-EMC 24284

Request for Quote

C-300-B-1-10-EMC 24285

Request for Quote

C-300-B-1.5-5-EMC 24286

Request for Quote

C-300-B-1.5-10-EMC 24287

Request for Quote

C-300-B-2-4-EMC 24288

Request for Quote

C-300-B-2-5-EMC 24289

Request for Quote

C-300-B-2-7-EMC 24290

Request for Quote

C-300-B-2-10-EMC 24291

Request for Quote

C-300-B-2-13-EMC 24292

Request for Quote

C-300-B-2-21-EMC 24293

Request for Quote

C-300-B-3-3-EMC 24294

Request for Quote

C-300-B-3-4-EMC 24295

Request for Quote

C-300-B-3-5-EMC 24296

Request for Quote

C-300-B-3-10-EMC 24297

Request for Quote

C-300-B-3-13-EMC 24298

Request for Quote

C-300-B-4-5-EMC 24299

Request for Quote

C-300-B-4-7-EMC 24300

Request for Quote

C-300-B-4-9-EMC 24301

Request for Quote

C-300-B-5-5-EMC 24302

Request for Quote

C-300-B-5-8-EMC 24303

Request for Quote

C-300-B-5-10-EMC 24304

Request for Quote

C-300-B-5-13-EMC 24305

Request for Quote

C-300-B-6-6-EMC 24306

Request for Quote

C-300-B-6-10-EMC 24307

Request for Quote

C-300-B-7-7-EMC 24308

Request for Quote

C-300-B-7-10-EMC 24309

Request for Quote

C-300-B-7-13-EMC 24310

Request for Quote

C-300-B-8-10-EMC 24311

Request for Quote

C-300-B-9-10-EMC 24312

Request for Quote

C-300-B-10-8-EMC 24313

Request for Quote

C-300-B-10-10-EMC 24314

Request for Quote

C-300-B-10-13-EMC 24315

Request for Quote

C-300-B-10-15-EMC 24316

Request for Quote

C-300-B-13-10-EMC 24317

Request for Quote

C-300-B-15-13-EMC 24318

Request for Quote

C-300-B-15-25-EMC 24319

Request for Quote

C-300-B-16-13-EMC 24320

Request for Quote

C-300-B-18-18-EMC 24321

Request for Quote

C-300-B-23-18-EMC 24322

Request for Quote

C-300-B-30-18-EMC 24323

Request for Quote

Features

    • Low surface resistance of just 0.04Ω/sq gives excellent shielding on a par with metal.
    • With a core of high-performance urethane foam and its unique construction, it provides superb recovery elasticity while still retaining a soft contact pressure, maintaining low contact resistance over long periods of dry heat compression.
    • The smooth surface coupled with highly flexible conductive fibers ensures a snug fit against the contact surfaces of casings.
    • Adhesive tape for easy installation on casings, housings, etc.
    • Non-combustible so safe to use (uses [UL94 V-0] non-combustible material).
    • An enhanced protective surface coating provides resistance to friction and moisture. It also works to suppress the very rare instances of allergic reactions with commonly used platings.

Specifications

    • Material: Sponge: Polyurethane (PU)
      Metalized fiber fabric: Polyester fiber fabric
      Adhesive tape: Polyester fiber mesh, acrylic adhesive, metallic powder
    • Finish: Metalized fiber fabric/tape: Non-electrolytic plating (copper, nickel)

Specific Use

    • Office equipment, computers and peripherals, wireless equipment, medical equipment, casings/housings

Remarks

    • Do not store in locations exposed to heat, moisture or direct sunlight.
