C-1563-AK

D-CUT IT-FASTENERS

D-CUT IT-FASTENERS

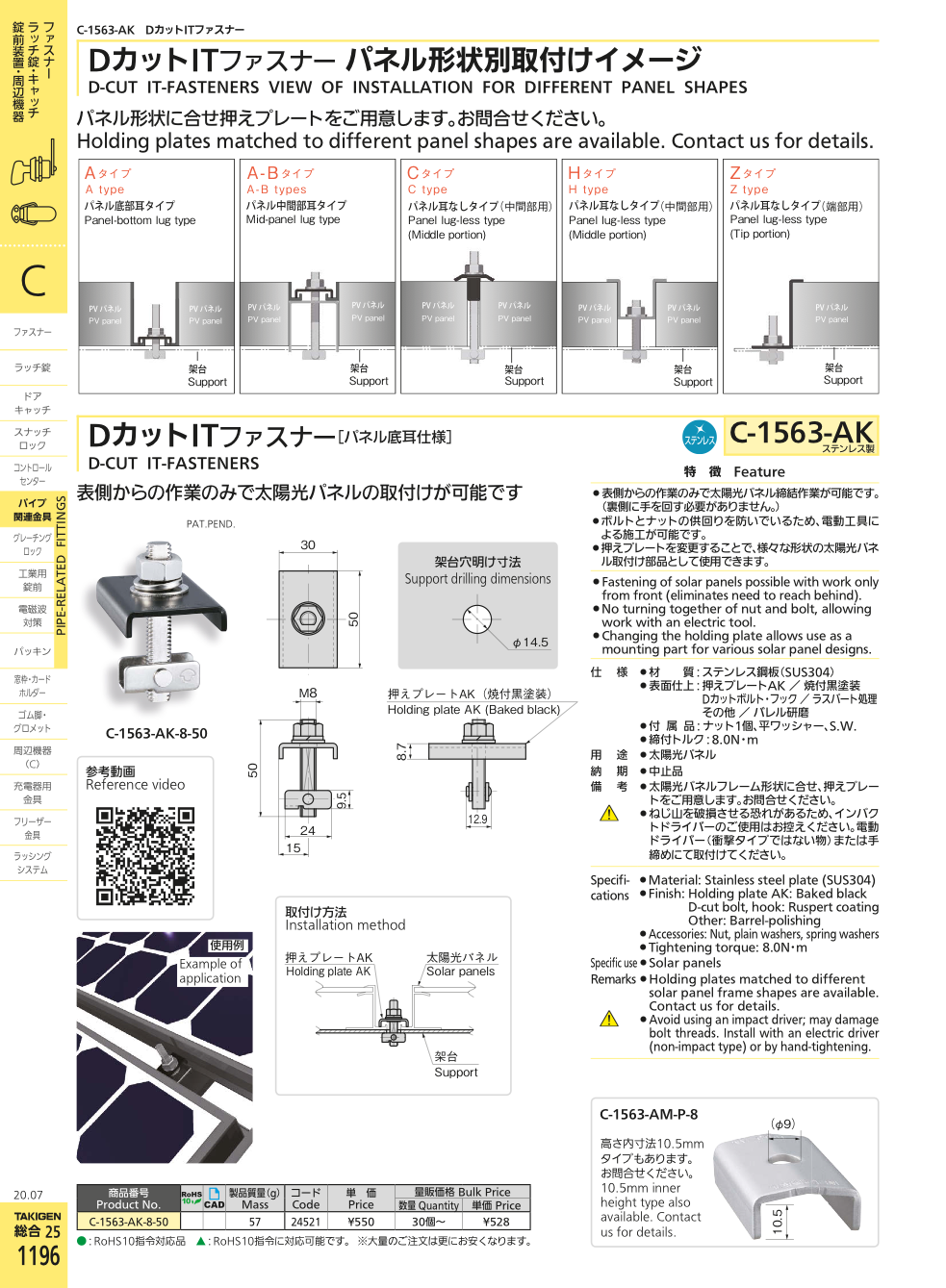

D-CUT IT-FASTENERS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-1563-AK-8-50 24521

Request for Quote

Features

    • Fastening of solar panels possible with work only from front (eliminates need to reach behind).
    • No turning together of nut and bolt, allowing work with an electric tool.
    • Changing the holding plate allows use as a mounting part for various solar panel designs.

Specifications

    • Material: Stainless steel plate (SUS304)
    • Finish: Holding plate AK: Baked black
      D-cut bolt, hook: Ruspert coating
      Other: Barrel-polishing
    • Accessories: Nut, plain washers, spring washers
    • Tightening torque: 8.0N·m

Specific Use

    • Solar panels

Remarks

    • Holding plates matched to different solar panel frame shapes are available. Contact us for details.
    • Avoid using an impact driver; may damage bolt threads. Install with an electric driver (non-impact type) or by hand-tightening.
