FA-810-C-4

ONE-TOUCH LOCK HANDLE CATCHES

ONE-TOUCH LOCK HANDLE CATCHES

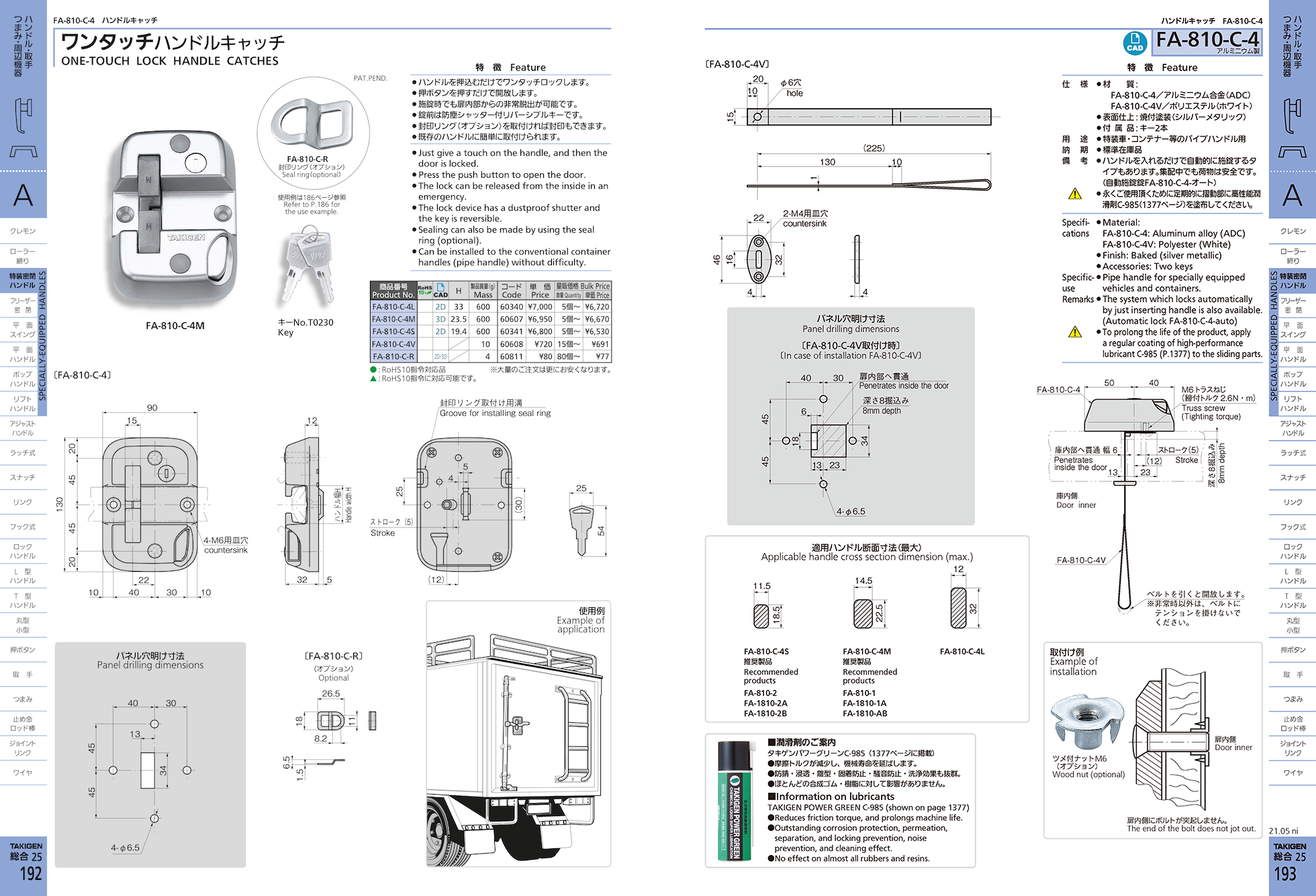

ONE-TOUCH LOCK HANDLE CATCHES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
FA-810-C-4L 60340

Request for Quote

FA-810-C-4M 60607

Request for Quote

FA-810-C-4S 60341

Request for Quote

FA-810-C-4V 60608

Request for Quote

Features

    • Just give a touch on the handle, and then the door is locked.
    • Press the push button to open the door.
    • The lock can be released from the inside in an emergency.
    • The lock device has a dustproof shutter and the key is reversible.
    • Sealing can also be made by using the seal ring (optional).
    • Can be installed to the conventional container handles (pipe handle) without difficulty.

Specifications

    • Material:
      FA-810-C-4: Aluminum alloy (ADC)
      FA-810-C-4V: Polyester (White)
    • Finish: Baked (silver metallic)
    • Accessories: Two keys

Specific Use

    • Pipe handle for specially equipped vehicles and containers.

Remarks

    • The system which locks automatically by just inserting handle is also available. (Automatic lock FA-810-C-4-auto)
    • To prolong the life of the product, apply a regular coating of high-performance lubricant C-985 (P.1377) to the sliding parts.
