B-1450

STAYS WITH STOPPERS FOR HEAVY-DUTY USE

B-450

STAYS WITH STOPPERS FOR HEAVY-DUTY USE

STAYS WITH STOPPERS FOR HEAVY-DUTY USE

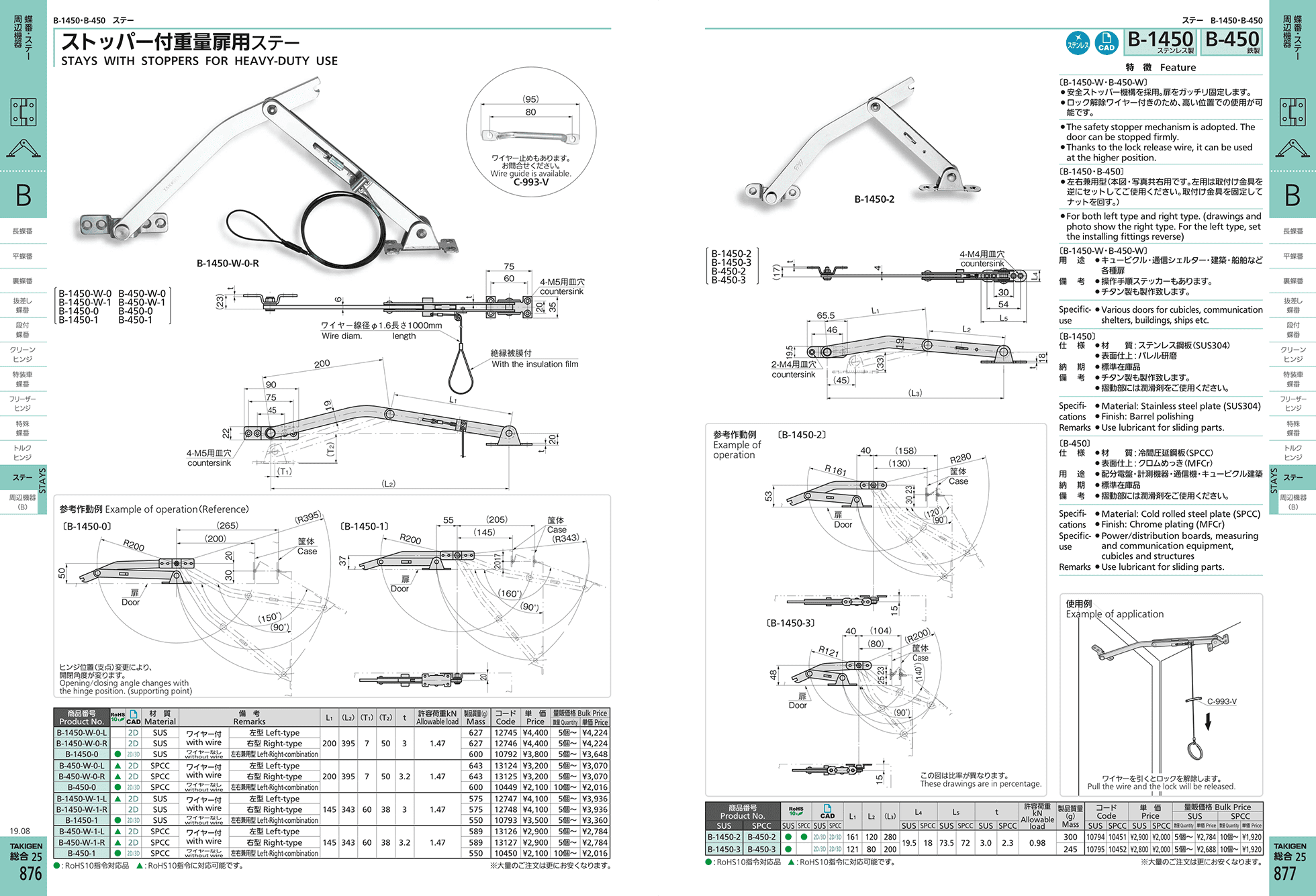

STAYS WITH STOPPERS FOR HEAVY-DUTY USE Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
B-1450-W-0-L with wire Left-type 12745

Request for Quote

B-1450-W-0-R with wire Right-type 12746

Request for Quote

B-1450-0 without wire Left-Right-combination 10792

Request for Quote

B-450-W-0-L with wire Left-type 13124

Request for Quote

B-450-W-0-R with wire Right-type 13125

Request for Quote

B-450-0 without wire Left-Right-combination 10449

Request for Quote

B-1450-W-1-L with wire Left-type 12747

Request for Quote

B-1450-W-1-R with wire Right-type 12748

Request for Quote

B-1450-1 without wire Left-Right-combination 10793

Request for Quote

B-450-W-1-L with wire Left-type 13126

Request for Quote

B-450-W-1-R with wire Right-type 13127

Request for Quote

B-450-1 without wire Left-Right-combination 10450

Request for Quote

B-1450-2 10794

Request for Quote

B-1450-3 10795

Request for Quote

B-450-2 10451

Request for Quote

B-450-3 10452

Request for Quote

Features

    • The safety stopper mechanism is adopted. The door can be stopped firmly.
    • Thanks to the lock release wire, it can be used at the higher position.
    • For both left type and right type. (drawings and photo show the right type. For the left type, set the installing fittings reverse)

Specifications

    B-450
    • Material: Cold rolled steel plate (SPCC)
    • Finish: Chrome plating (MFCr)

    B-1450
    • Material: Stainless steel plate (SUS304)
    • Finish: Barrel polishing

Specific Use

    B-450
    • Various doors for cubicles, communication shelters, buildings, ships etc.
    • Power/distribution boards, measuring and communication equipment, cubicles and structures

    B-1450
    • Various doors for cubicles, communication shelters, buildings, ships etc.

Remarks

    • Use lubricant for sliding parts.
