B-1482

FOOT-STYLE STOP STAY

B-482

FOOT-STYLE STOP STAY

FOOT-STYLE STOP STAY

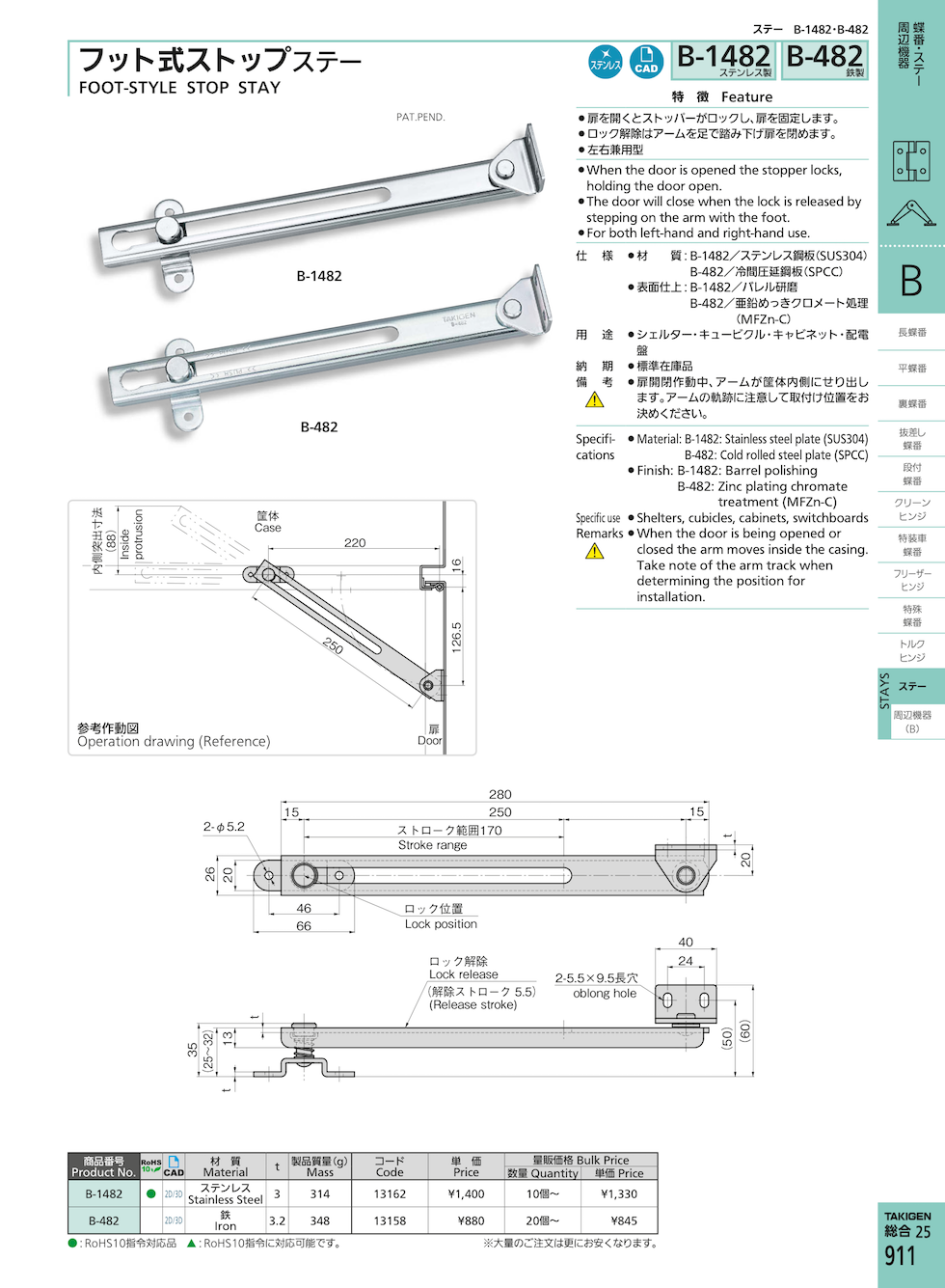

FOOT-STYLE STOP STAY Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
B-1482 13162

Request for Quote

B-482 13158

Request for Quote

Features

    • When the door is opened the stopper locks, holding the door open.
    • The door will close when the lock is released by stepping on the arm with the foot.
    • For both left-hand and right-hand use.

Specifications

    • Material: B-1482: Stainless steel plate (SUS304)
      B-482: Cold rolled steel plate (SPCC)
    • Finish: B-1482: Barrel polishing
      B-482: Zinc plating chromate treatment (MFZn-C)

Specific Use

    • Shelters, cubicles, cabinets, switchboards

Remarks

    • When the door is being opened or closed the arm moves inside the casing.
      Take note of the arm track when determining the position for installation.
