BP-418

FLEXIBLE LOCK

FLEXIBLE LOCK

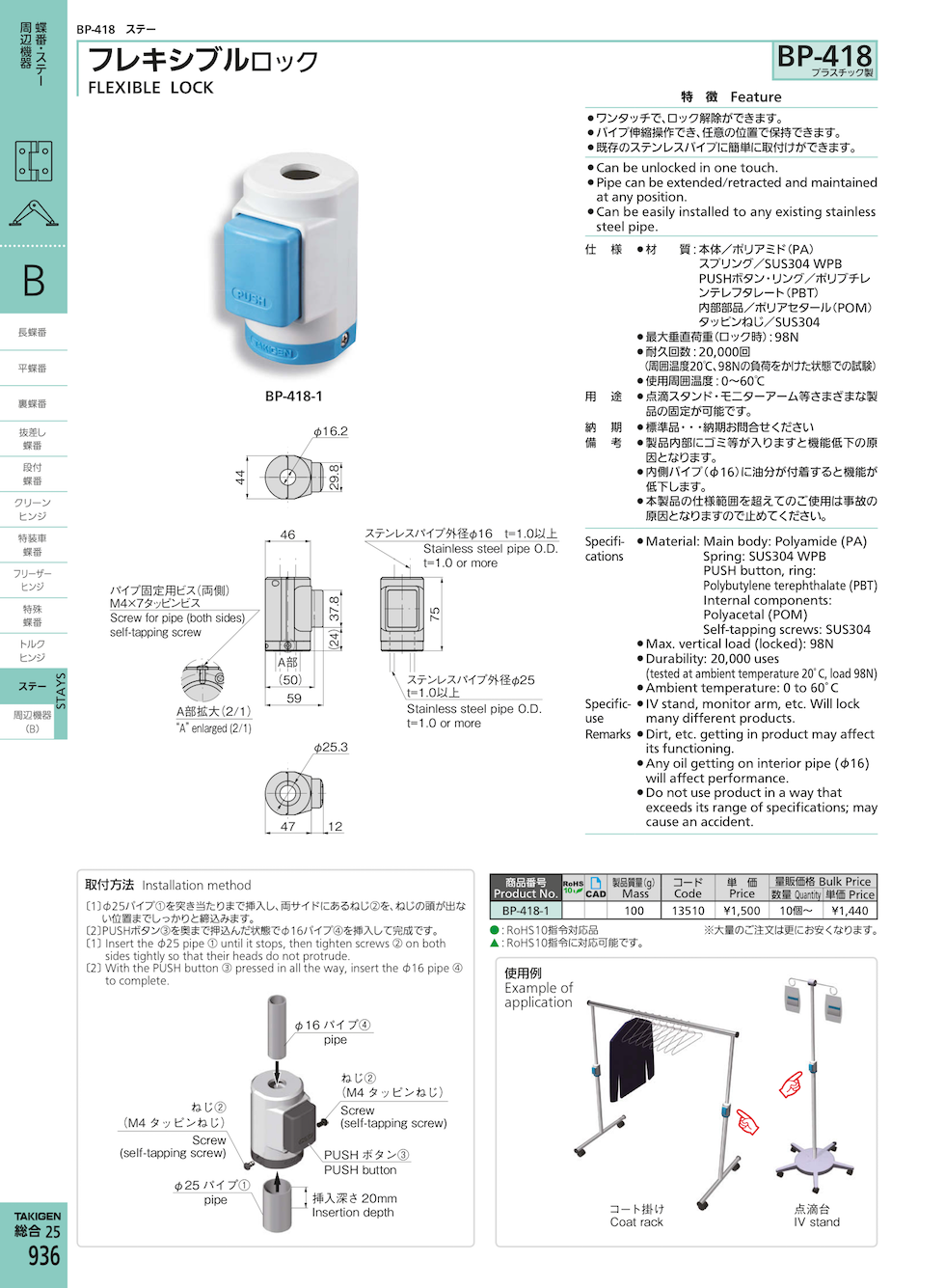

FLEXIBLE LOCK Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
BP-418-1 13510

Request for Quote

Features

    • Can be unlocked in one touch.
    • Pipe can be extended/retracted and maintained at any position.
    • Can be easily installed to any existing stainless steel pipe.

Specifications

    • Material: Main body: Polyamide (PA)
      Spring: SUS304 WPB
      PUSH button, ring: Polybutylene terephthalate (PBT)
      Internal components: Polyacetal (POM)
      Self-tapping screws: SUS304
    • Max. vertical load (locked): 98N
    • Durability: 20,000 uses
      (tested at ambient temperature 20°C, load 98N)
    • Ambient temperature: 0 to 60°C

Specific Use

    • IV stand, monitor arm, etc. Will lock many different products.

Remarks

    • Dirt, etc. getting in product may affect its functioning.
    • Any oil getting on interior pipe (φ16) will affect performance.
    • Do not use product in a way that exceeds its range of specifications; may cause an accident.
