C-1163

NET GLASS WINDOW FRAMES

NET GLASS WINDOW FRAMES

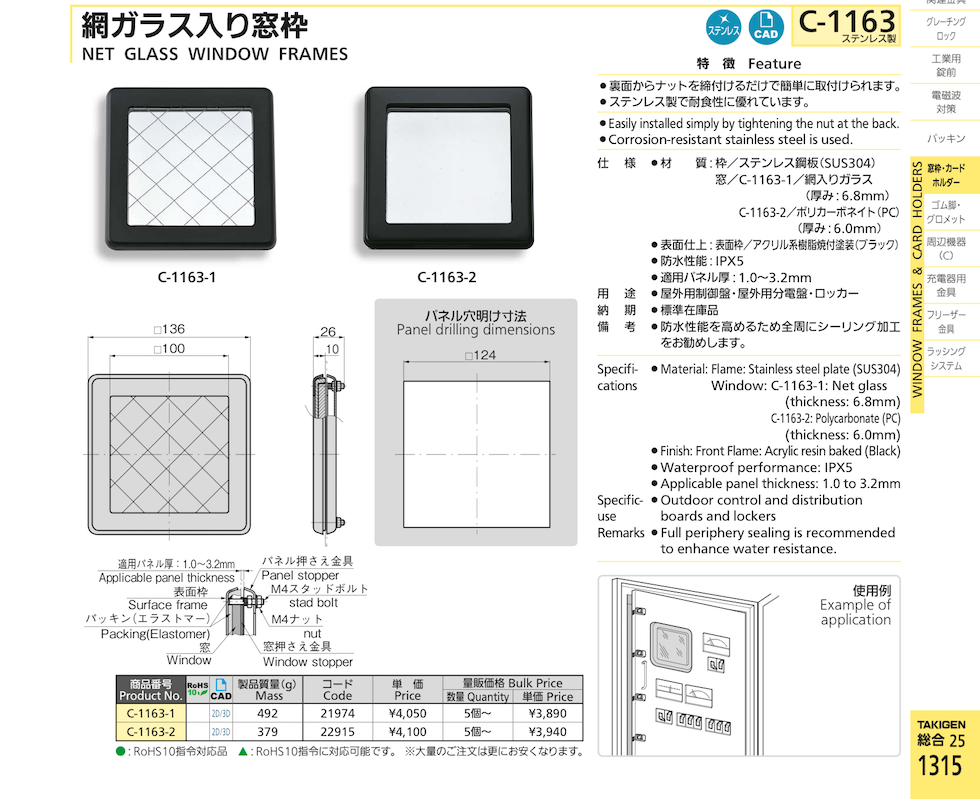

NET GLASS WINDOW FRAMES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-1163-1 21974

Request for Quote

C-1163-2 22915

Request for Quote

Features

    • Easily installed simply by tightening the nut at the back.
    • Corrosion-resistant stainless steel is used.

Specifications

    • Material: Flame: Stainless steel plate (SUS304)
      Window: C-1163-1: Net glass
      (thickness: 6.8mm)
      C-1163-2: Polycarbonate (PC)
      (thickness: 6.0mm)
    • Finish: Front Flame: Acrylic resin baked (Black)
    • Waterproof performance: IPX5
    • Applicable panel thickness: 1.0 to 3.2mm

Specific Use

    • Outdoor control and distribution boards and lockers

Remarks

    • Full periphery sealing is recommended to enhance water resistance.
