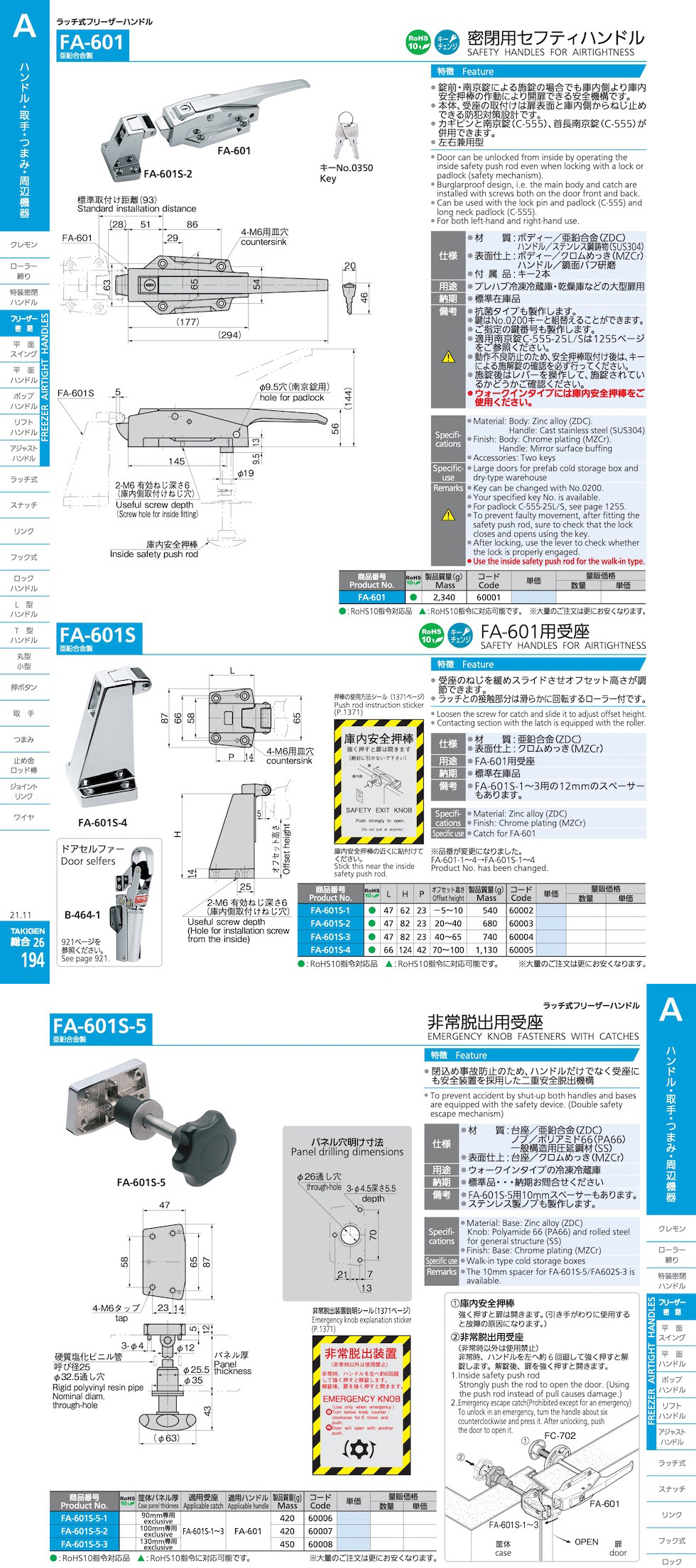

FA-601

SAFETY HANDLES FOR AIRTIGHTNESS

SAFETY HANDLES FOR AIRTIGHTNESS
SAFETY HANDLES FOR AIRTIGHTNESS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
FA-601 60001

Request for Quote

Features

    • Door can be unlocked from inside by operating the inside safety push rod even when locking with a lock or padlock (safety mechanism).
    • Burglarproof design, i.e. the main body and catch are installed with screws both on the door front and back.
    • Can be used with the lock pin and padlock (C-555) and long neck padlock (C-555).
    • For both left-hand and right-hand use.

Specifications

    • Material: Body: Zinc alloy (ZDC).
      Handle: Cast stainless steel (SUS304)
    • Finish: Body: Chrome plating (MZCr).
      Handle: Mirror surface buffing
    • Accessories: Two keys

Specific Use

    • Large doors for prefab cold storage box and dry-type warehouse

Remarks

    • Key can be changed with No.0200.
    • Your specified key No. is available.
    • For padlock C-555-25L/S, see page 1255.
    • To prevent faulty movement, after fitting the safety push rod, sure to check that the lock closes and opens using the key.
    • After locking, use the lever to check whether the lock is properly engaged.
    • Use the inside safety push rod for the walk-in type.
