LE-452

ELECTROMAGNETIC LOCK OUTSIDE FLUSH HANDLE

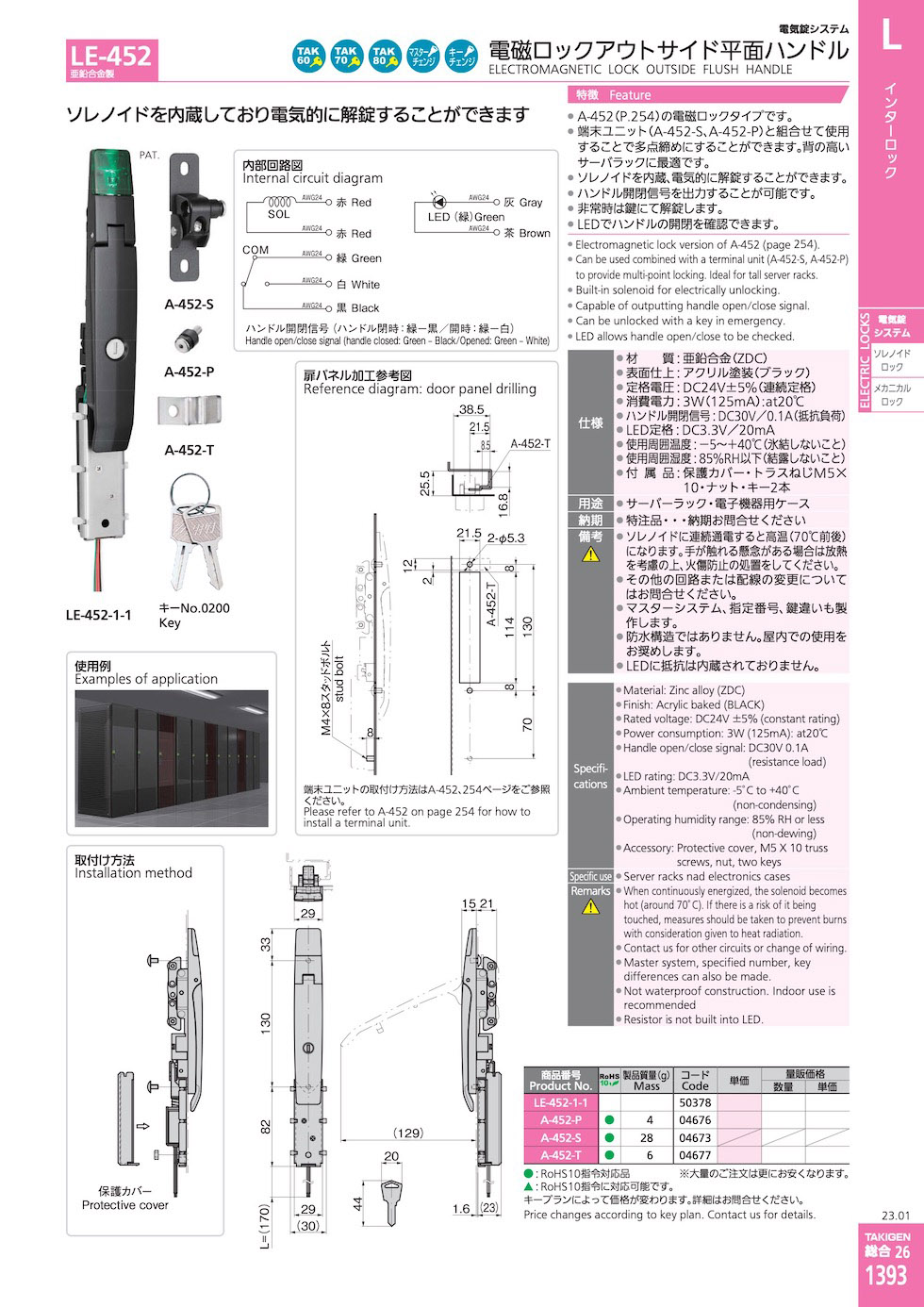

Catalogue View

ELECTROMAGNETIC LOCK OUTSIDE FLUSH HANDLE
ELECTROMAGNETIC LOCK OUTSIDE FLUSH HANDLE Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D

Features

    • Electromagnetic lock version of A-452 (page 254).
    • Can be used combined with a terminal unit (A-452-S, A-452-P) to provide multi-point locking. Ideal for tall server racks.
    • Built-in solenoid for electrically unlocking.
    • Capable of outputting handle open/close signal.
    • Can be unlocked with a key in emergency.
    • LED allows handle open/close to be checked.

Specifications

    • Material: Zinc alloy (ZDC)
    • Finish: Acrylic baked (BLACK)
    • Rated voltage: DC24V ±5% (constant rating)
    • Current power: 125mA
    • Power consumption: 3W
    • Handle open/close signal: DC30V 0.1A (resistance load)
    • LED rating: DC3.3V/20mA
    • Ambient temperature: -5°C to +40°C
      (non-condensing)
    • Operating humidity range: 85% RH or less
      (non-dewing)
    • Accessory: Protective cover, M5 X 10 truss screws, nut, two keys

Specific Use

    • Server racks nad electronics cases

Remarks

    • Contact us for other circuits or change of wiring.
    • Master system, specified number, key differences can also be made.
    • Not waterproof construction. Indoor use is recommended
    • Resistor is not built into LED.
