FB-1734

INTERLOCKING MULTIAXIAL HINGES FOR LARGE AIRTIGHT DOORS

INTERLOCKING MULTIAXIAL HINGES FOR LARGE AIRTIGHT DOORS

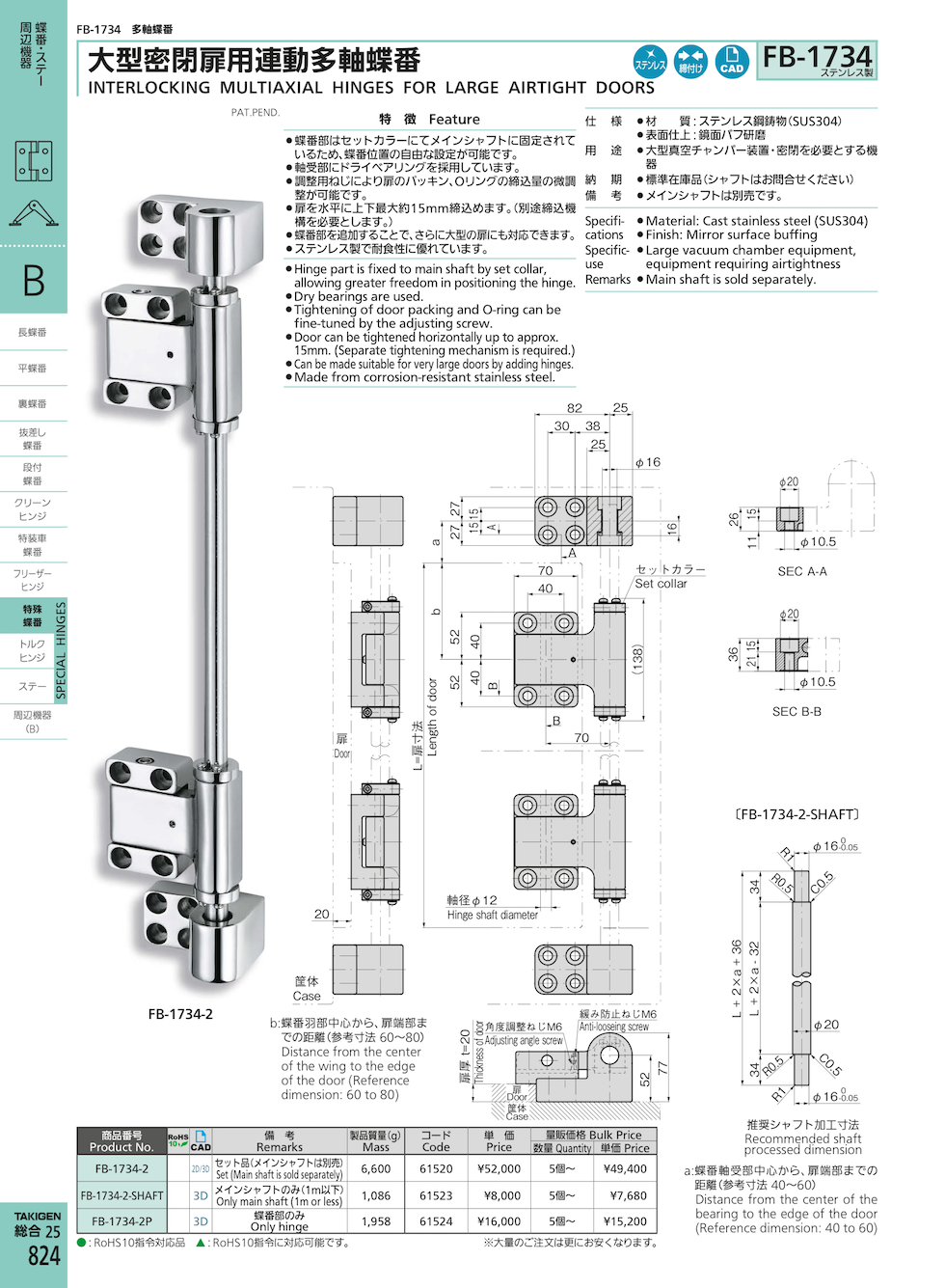

INTERLOCKING MULTIAXIAL HINGES FOR LARGE AIRTIGHT DOORS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
FB-1734-2 Set (Main shaft is sold separately) 61520

Request for Quote

FB-1734-2-SHAFT Only main shaft (1m or less) 61523

Request for Quote

FB-1734-2P Only hinge 61524

Request for Quote

Features

    • Hinge part is fixed to main shaft by set collar, allowing greater freedom in positioning the hinge.
    • Dry bearings are used.
    • Tightening of door packing and O-ring can be fine-tuned by the adjusting screw.
    • Door can be tightened horizontally up to approx. 15mm. (Separate tightening mechanism is required.)
    • Can be made suitable for very large doors by adding hinges.
    • Made from corrosion-resistant stainless steel.

Specifications

    • Material: Cast stainless steel (SUS304)
    • Finish: Mirror surface buffing

Specific Use

    • Large vacuum chamber equipment, equipment requiring airtightness

Remarks

    • Main shaft is sold separately.
