A-1325

HATCH CLIPS

HATCH CLIPS

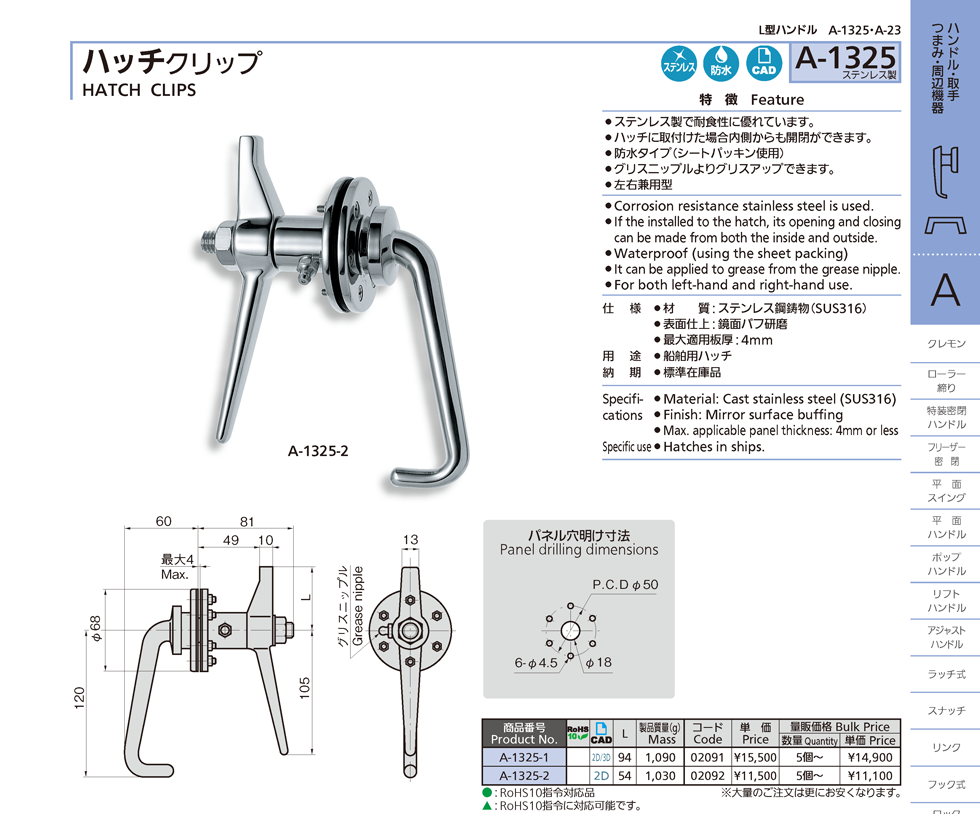

HATCH CLIPS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
A-1325-1 02091

Request for Quote

A-1325-2 02092

Request for Quote

Features

    • Corrosion resistance stainless steel is used.
    • If the installed to the hatch, its opening and closing can be made from both the inside and outside.
    • Waterproof (using the sheet packing)
    • It can be applied to grease from the grease nipple.
    • For both left-hand and right-hand use.

Specifications

    • Material: Cast stainless steel (SUS316)
    • Finish: Mirror surface buffing
    • Max. applicable panel thickness: 4mm or less

Specific Use

    • Hatches in ships.
