AP-566

HARD PVC PULLS

HARD PVC PULLS

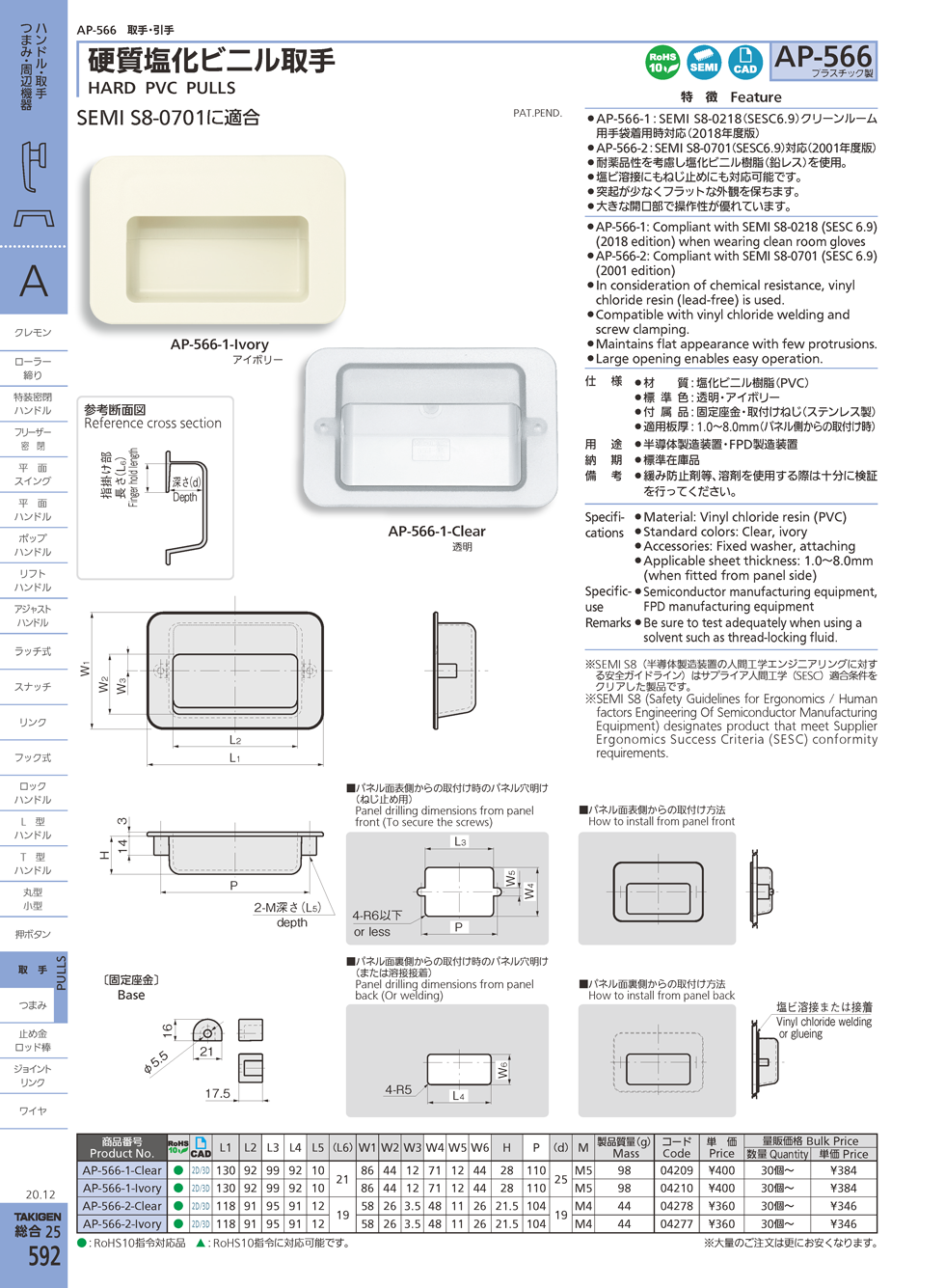

HARD PVC PULLS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
AP-566-1-Clear Clear 04209

Request for Quote

AP-566-1-Ivory Ivory 04210

Request for Quote

AP-566-2-Clear Clear 04278

Request for Quote

AP-566-2-Ivory Ivory 04277

Request for Quote

Features

    • AP-566-1: Compliant with SEMI S8-0218 (SESC 6.9) (2018 edition)
    • AP-566-2: Compliant with SEMI S8-0701 (SESC 6.9) (2001 edition)
    • In consideration of chemical resistance, vinyl chloride resin (lead-free) is used.
    • Compatible with vinyl chloride welding and screw clamping.
    • Maintains flat appearance with few protrusions.
    • Large opening enables easy operation.

Specifications

    • Material: Vinyl chloride resin (PVC)
    • Standard colors: Clear, ivory
    • Accessories: Fixed washer, attaching
    • Applicable sheet thickness: 1.0 to 8.0mm (when fitted from panel side)

Specific Use

    • Semiconductor manufacturing equipment, FPD manufacturing equipment

Remarks

    • Be sure to test adequately when using a solvent such as thread-locking fluid.
