CONCEALED HINGES FOR HEAVY-DUTY USE

B-63

CONCEALED HINGES FOR HEAVY-DUTY USE

CONCEALED HINGES FOR HEAVY-DUTY USE

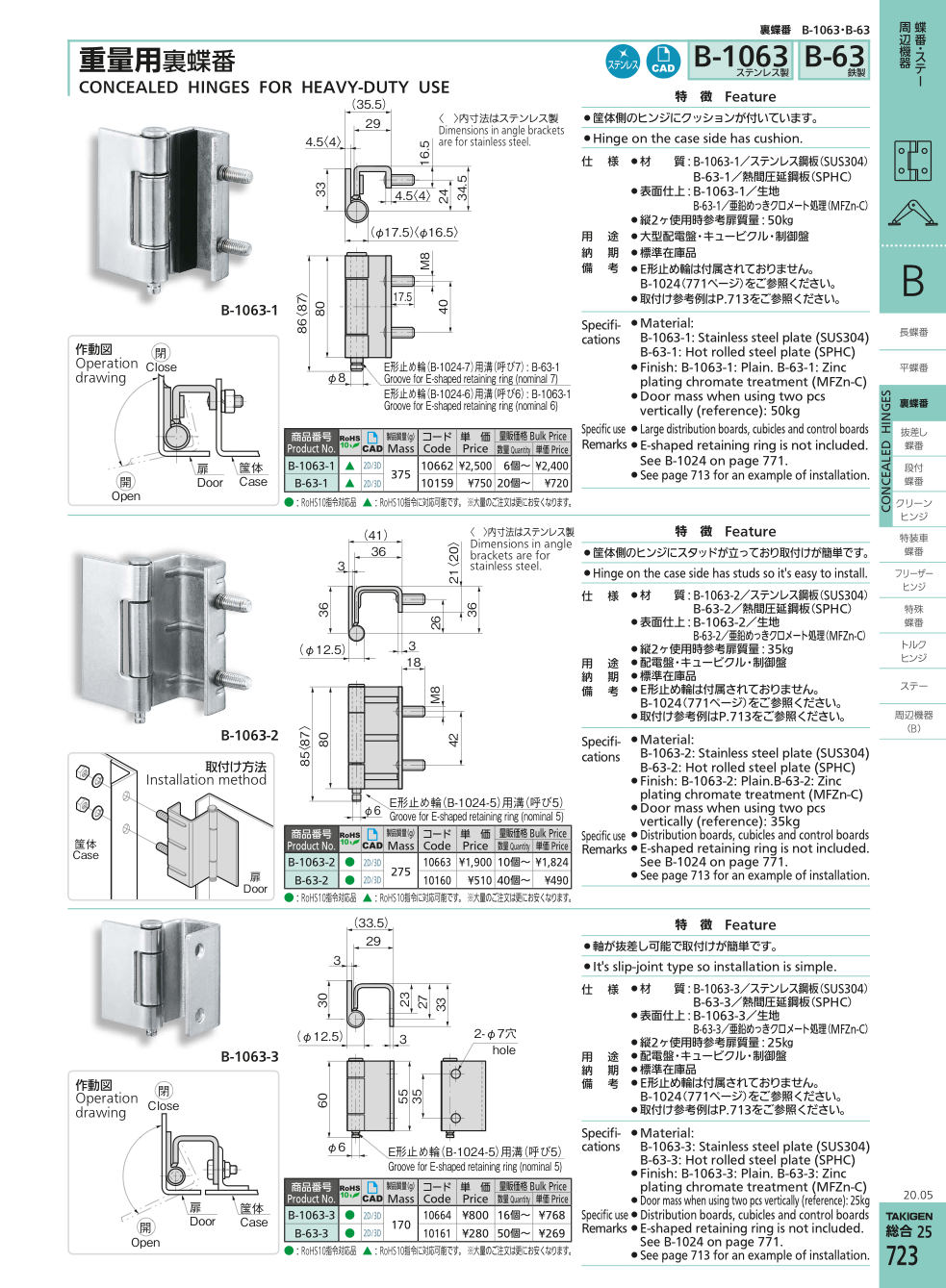

CONCEALED HINGES FOR HEAVY-DUTY USE Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
B-1063-1 10662

Request for Quote

B-63-1 10159

Request for Quote

B-1063-2 10663

Request for Quote

B-63-2 10160

Request for Quote

B-1063-3 10664

Request for Quote

B-63-3 10161

Request for Quote

Features

    • Hinge on the case side has cushion.
    • Hinge on the case side has studs so it's easy to install.
    • It's slip-joint type so installation is simple.

Specifications

    • Material: B-1063-1: Stainless steel plate (SUS304)
      B-63-1: Hot rolled steel plate (SPHC)
    • Finish: B-1063-1: Plain.
      B-63-1: Zinc plating chromate treatment (MFZn-C)
    • Door mass when using two pcs vertically (reference): 50kg
    • Material: B-1063-2: Stainless steel plate (SUS304)
      B-63-2: Hot rolled steel plate (SPHC)
    • Finish: B-1063-2: Plain.
      B-63-2: Zinc plating chromate treatment (MFZn-C)
    • Door mass when using two pcs vertically (reference): 35kg
    • Material: B-1063-3: Stainless steel plate (SUS304)
      B-63-3: Hot rolled steel plate (SPHC)
    • Finish: B-1063-3: Plain.
      B-63-3: Zinc plating chromate treatment (MFZn-C)
    • Door mass when using two pcs vertically (reference): 25kg

Specific Use

    • Large distribution boards, cubicles and control boards
    • Distribution boards, cubicles and control boards
    • Distribution boards, cubicles and control boards

Remarks

    • E-shaped retaining ring is not included.See B-1024 on page 756.
    • See page 697 for an example of installation.
    • E-shaped retaining ring is not included.See B-1024 on page 756.
    • See page 697 for an example of installation.
    • E-shaped retaining ring is not included.See B-1024 on page 756.
    • See page 697 for an example of installation.
