B-77

SLIDE POST HINGES

SLIDE POST HINGES

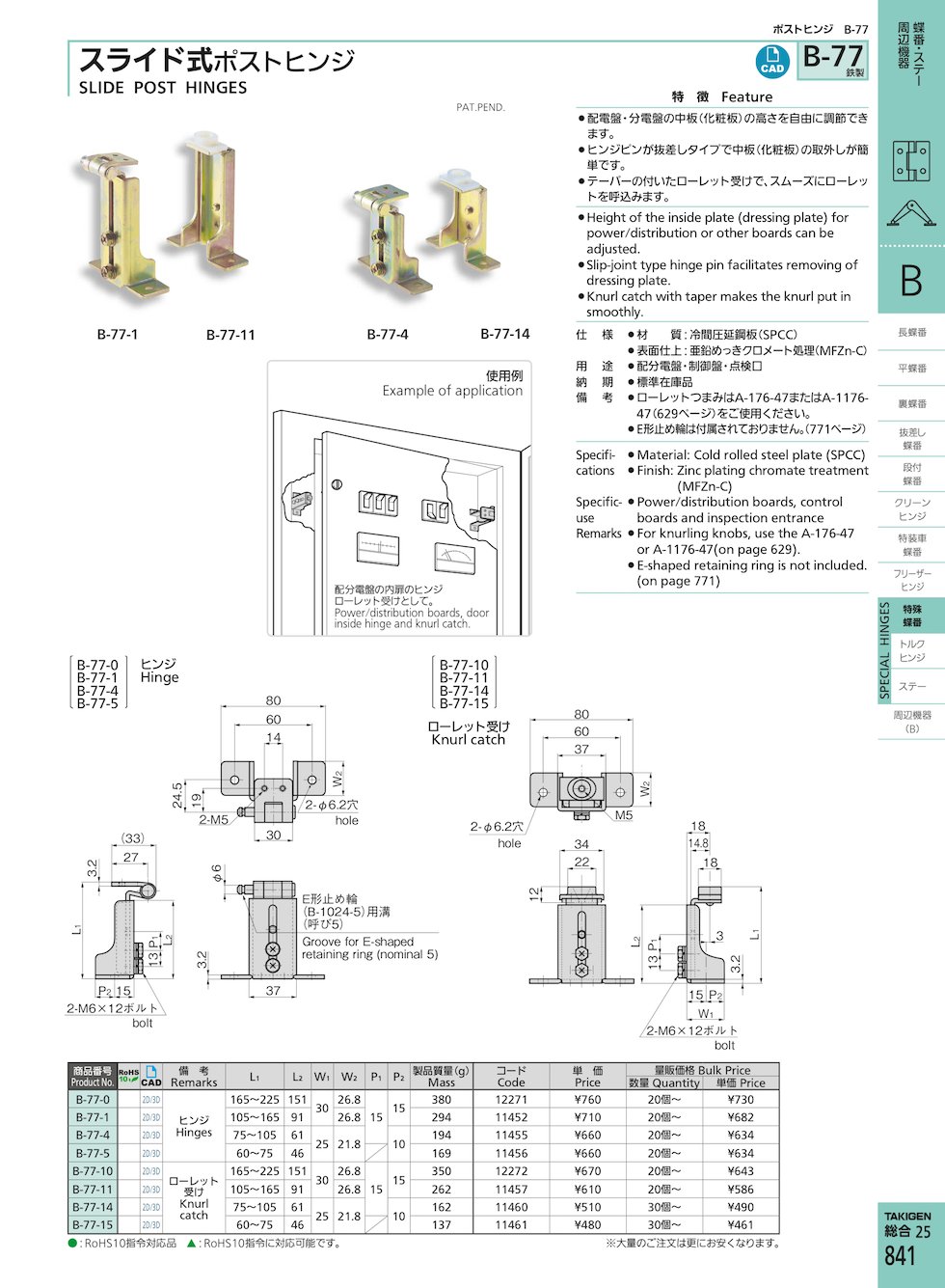

SLIDE POST HINGES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
B-77-0 Hinges 12271

Request for Quote

B-77-1 Hinges 11452

Request for Quote

B-77-4 Hinges 11455

Request for Quote

B-77-5 Hinges 11456

Request for Quote

B-77-10 Knurl catch 12272

Request for Quote

B-77-11 Knurl catch 11457

Request for Quote

B-77-14 Knurl catch 11460

Request for Quote

B-77-15 Knurl catch 11461

Request for Quote

Features

    • Height of the inside plate (dressing plate) for power/distribution or other boards can be adjusted.
    • Slip-joint type hinge pin facilitates removing of dressing plate.
    • Knurl catch with taper makes the knurl put in smoothly.

Specifications

    • Material: Cold rolled steel plate (SPCC)
    • Finish: Zinc plating chromate treatment (MFZn-C)

Specific Use

    • Power/distribution boards, control boards and inspection entrance

Remarks

    • For knurling knobs, use the A-176-47 or A-1176-47(on page 629).
    • E-shaped retaining ring is not included. (on page 771)
