B-1999

TORSION HINGES

TORSION HINGES

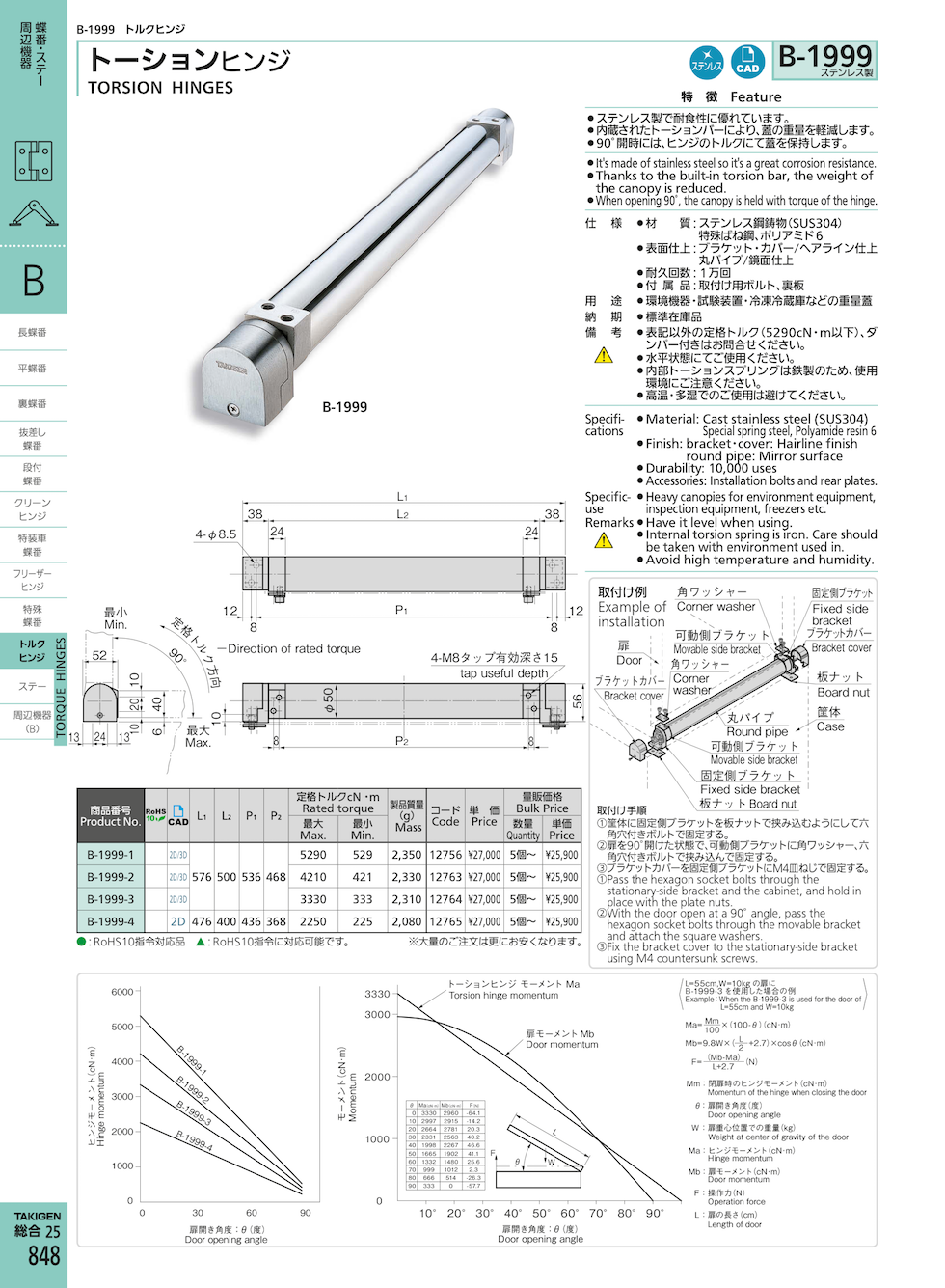

TORSION HINGES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
B-1999-1 12756

Request for Quote

B-1999-2 12763

Request for Quote

B-1999-3 12764

Request for Quote

B-1999-4 12765

Request for Quote

Features

    • It's made of stainless steel so it's a great corrosion resistance.
    • Thanks to the built-in torsion bar, the weight of the canopy is reduced.
    • When opening 90°, the canopy is held with torque of the hinge.

Specifications

    • Material: Cast stainless steel (SUS304)
      Special spring steel, Polyamide resin 6
    • Finish: bracket·cover: Hairline finish
      round pipe: Mirror surface
    • Durability: 10,000 uses
    • Accessories: Installation bolts and rear plates.

Specific Use

    • Heavy canopies for environment equipment, inspection equipment, freezers etc.

Remarks

    • Have it level when using.
    • Internal torsion spring is iron. Care should be taken with environment used in.
    • Avoid high temperature and humidity.
