B-1145

STOP STAYS

STOP STAYS

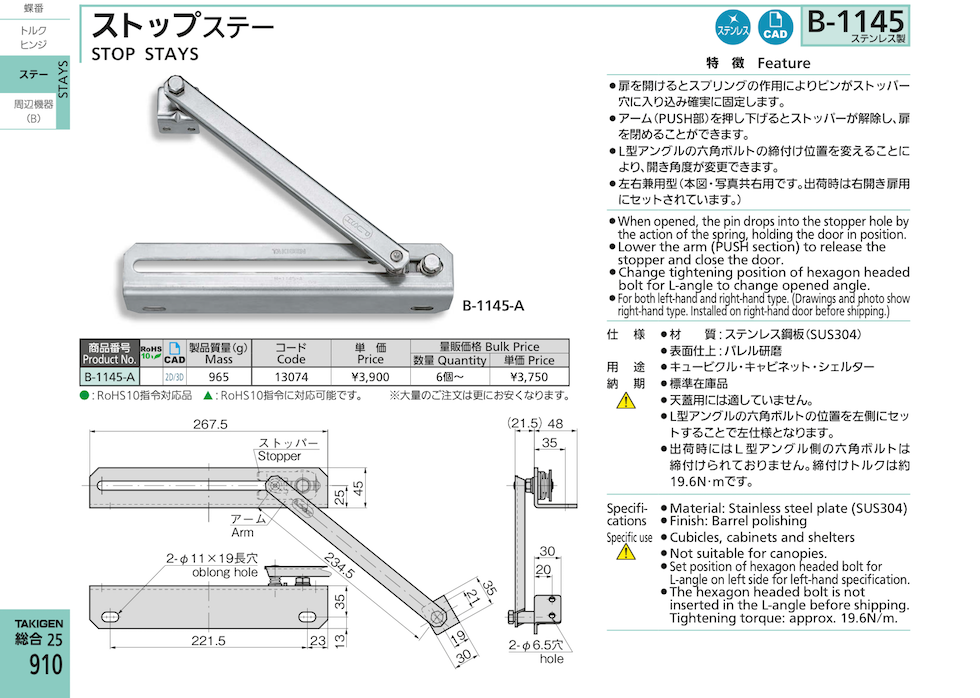

STOP STAYS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
B-1145-A 13074

Request for Quote

Features

    • When opened, the pin drops into the stopper hole by the action of the spring, holding the door in position.
    • Lower the arm (PUSH section) to release the stopper and close the door.
    • Change tightening position of hexagon headed bolt for L-angle to change opened angle.
    • For both left-hand and right-hand type. (Drawings and photo show right-hand type. Installed on right-hand door before shipping.)

Specifications

    • Material: Stainless steel plate (SUS304)
    • Finish: Barrel polishing

Specific Use

    • Cubicles, cabinets and shelters

Remarks

    • Not suitable for canopies.
    • Set position of hexagon headed bolt for L-angle on left side for left-hand specification.
    • The hexagon headed bolt is not inserted in the L-angle before shipping. Tightening torque: approx. 19.6N/m.
