B-1480-S

SPRING STOPPER STAYS

SPRING STOPPER STAYS

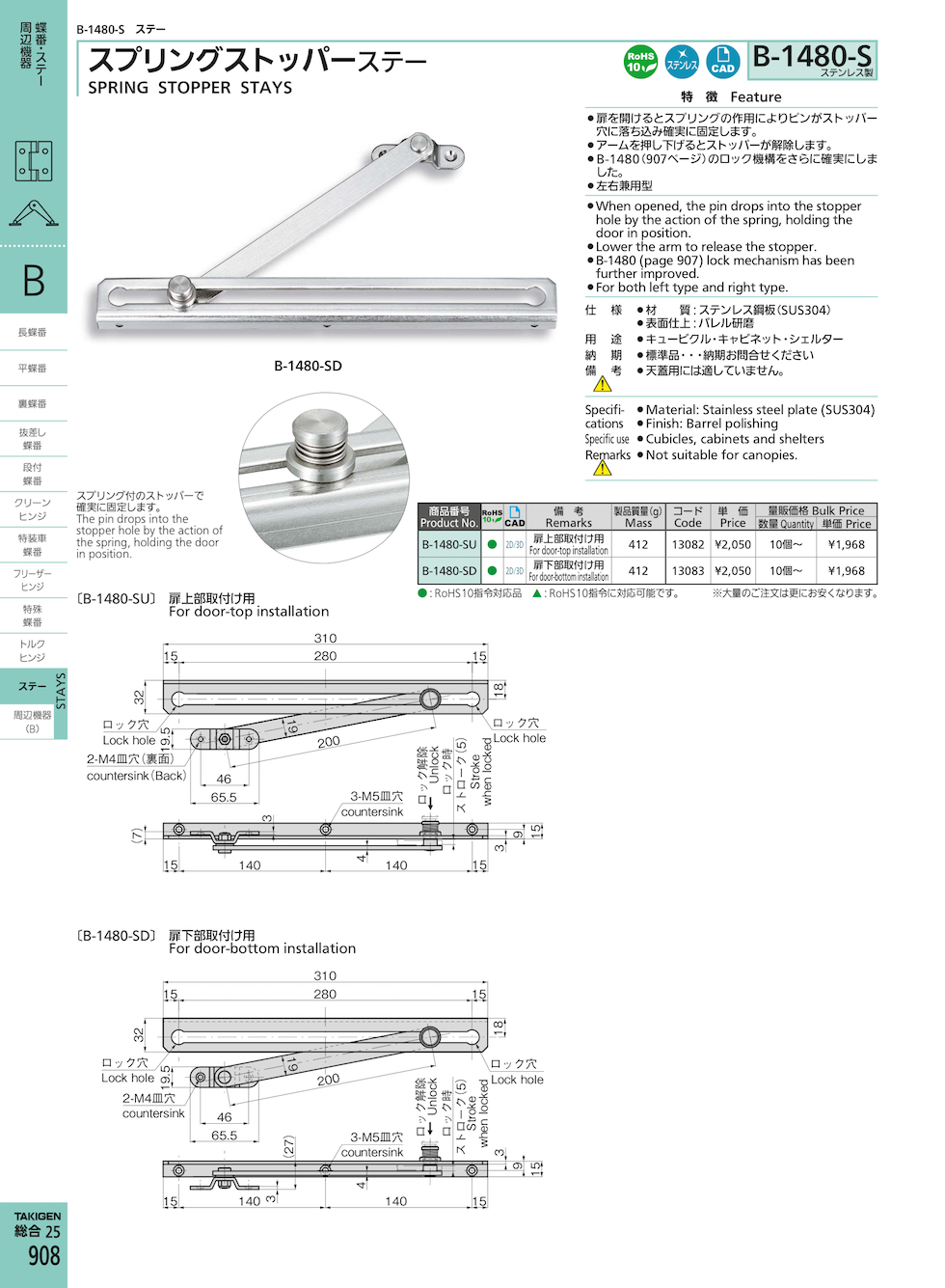

SPRING STOPPER STAYS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
B-1480-SU For door-top installation 13082

Request for Quote

B-1480-SD For door-bottom installation 13083

Request for Quote

Features

    • When opened, the pin drops into the stopper hole by the action of the spring, holding the door in position.
    • Lower the arm to release the stopper.
    • B-1480 (page 907) lock mechanism has been further improved.
    • For both left type and right type.

Specifications

    • Material: Stainless steel plate (SUS304)
    • Finish: Barrel polishing

Specific Use

    • Cubicles, cabinets and shelters

Remarks

    • Not suitable for canopies.
