AP-447

FLUSH CATTLE HANDLES

B-270

SERVER RACK HINGES

FLUSH CATTLE HANDLES

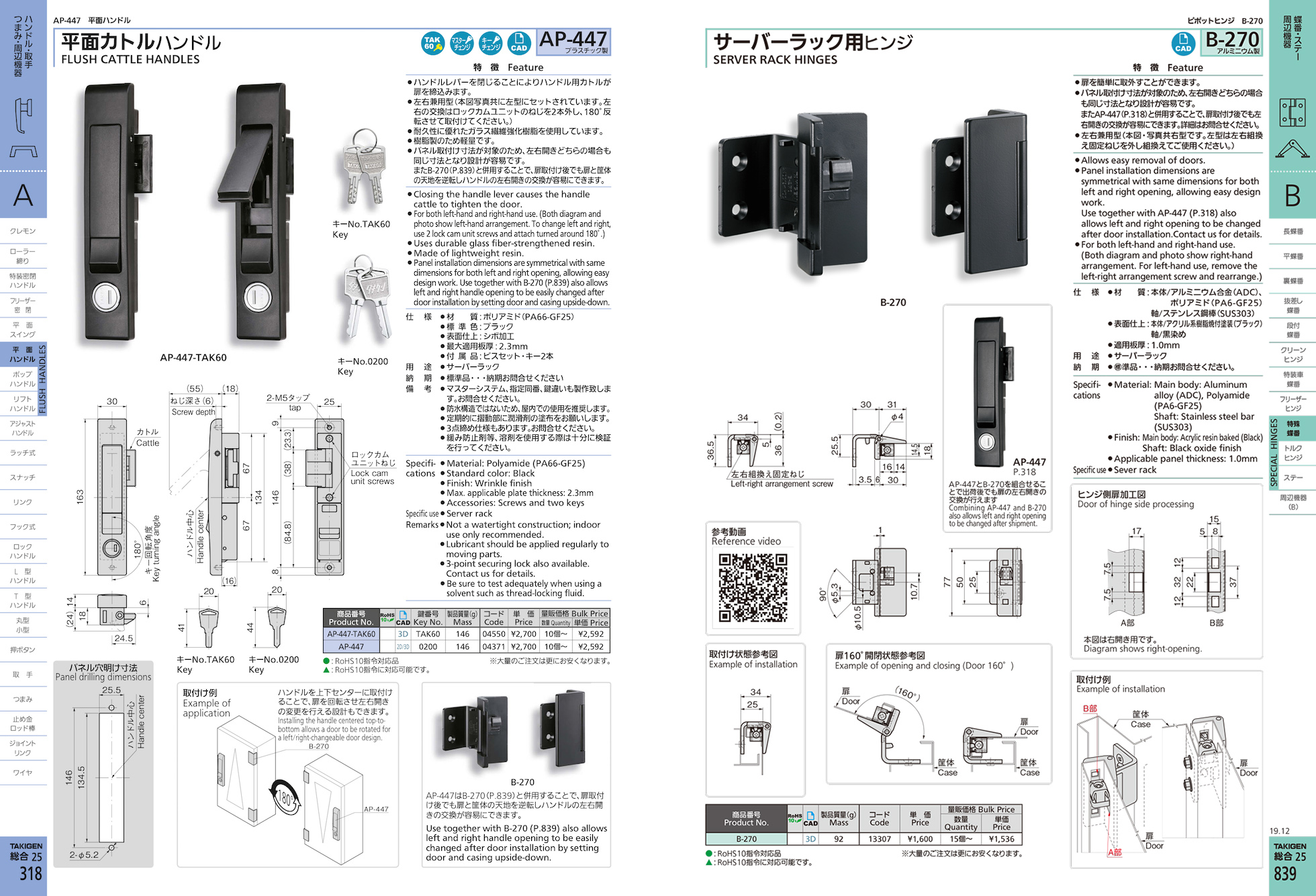

FLUSH CATTLE HANDLES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
AP-447-TAK60 04550

Request for Quote

AP-447 04371

Request for Quote

B-270 13307

Request for Quote

Features

    • Closing the handle lever causes the handle cattle to tighten the door.
    • For both left-hand and right-hand use. (Both diagram and photo show left-hand arrangement. To change left and right, use 2 lock cam unit screws and attach turned around 180°.)
    • Uses durable glass fiber-strengthened resin.
    • Made of lightweight resin.
    • Panel installation dimensions are symmetrical with same dimensions for both left and right opening, allowing easy design work. Use together with B-270 (P.839) also allows left and right handle opening to be easily changed after door installation by setting door and casing upside-down.

Specifications

    • Material: Polyamide (PA66-GF25)
    • Standard color: Black
    • Finish: Wrinkle finish
    • Max. applicable plate thickness: 2.3mm
    • Accessories: Screws and two keys

Specific Use

    • Server rack

Remarks

    • Not a watertight construction; indoor use only recommended.
    • Lubricant should be applied regularly to moving parts.
    • 3-point securing lock also available. Contact us for details.
    • Be sure to test adequately when using a solvent such as thread-locking fluid.
