C-1851

DOOR CATCHES

C-851

DOOR CATCHES

DOOR CATCHES

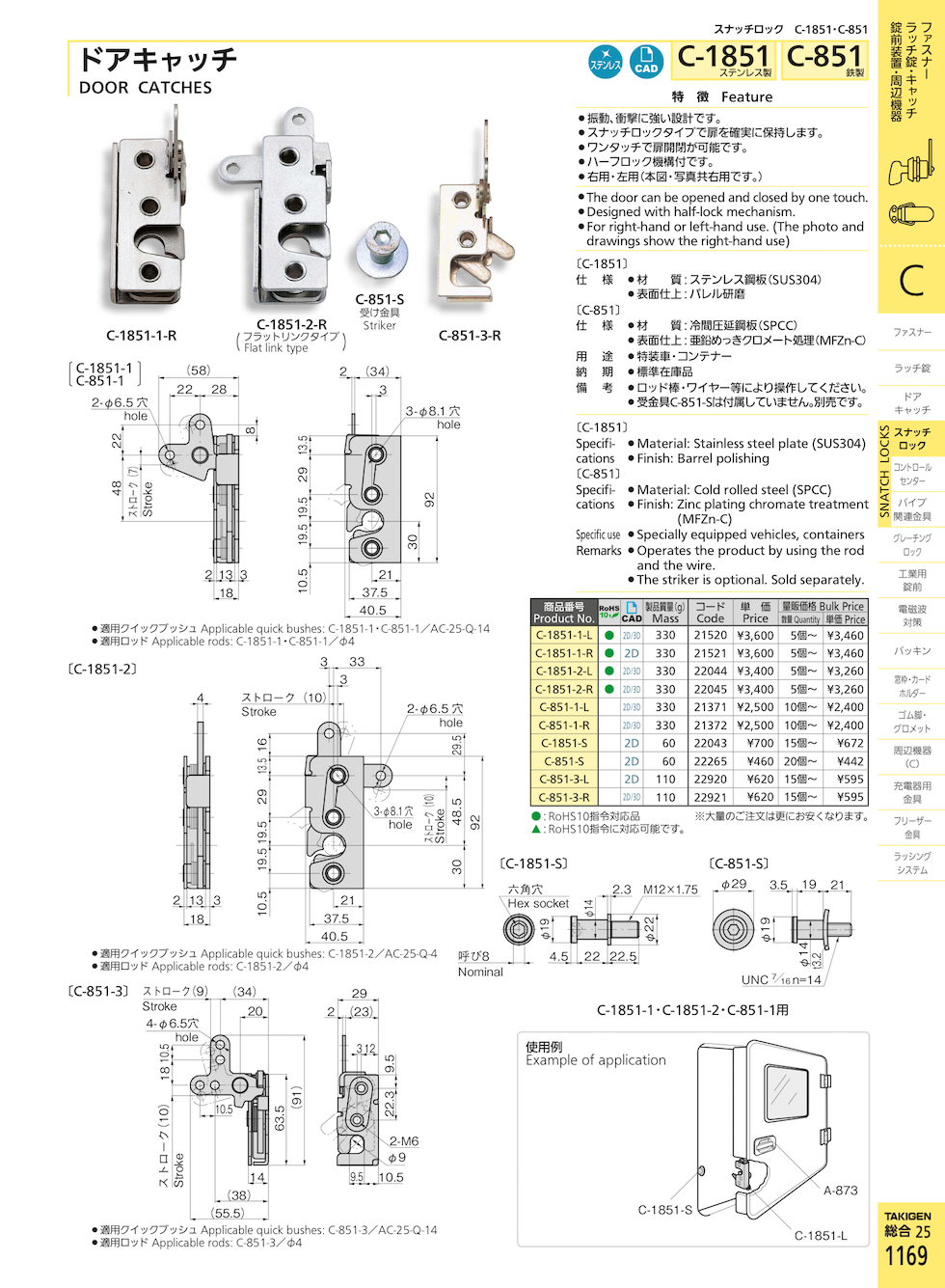

DOOR CATCHES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-1851-1-L 21520

Request for Quote

C-1851-1-R 21521

Request for Quote

C-1851-2-L 22044

Request for Quote

C-1851-2-R 22045

Request for Quote

C-851-1-L 21371

Request for Quote

C-851-1-R 21372

Request for Quote

C-1851-S 22043

Request for Quote

C-851-S 22265

Request for Quote

C-851-3-L 22920

Request for Quote

C-851-3-R 22921

Request for Quote

Features

    • The door can be opened and closed by one touch.
    • Designed with half-lock mechanism.
    • For right-hand or left-hand use. (The photo and drawings show the right-hand use)

Specifications

    C-851
    • Material: Cold rolled steel (SPCC)
    • Finish: Zinc plating chromate treatment (MFZn-C)

    C-1851
    • Material: Stainless steel plate (SUS304)
    • Finish: Barrel polishing

Specific Use

    • Specially equipped vehicles, containers

Remarks

    • Operates the product by using the rod and the wire.
    • The striker is optional. Sold separately.
