CP-325

FLUSH LATCHES

FLUSH LATCHES

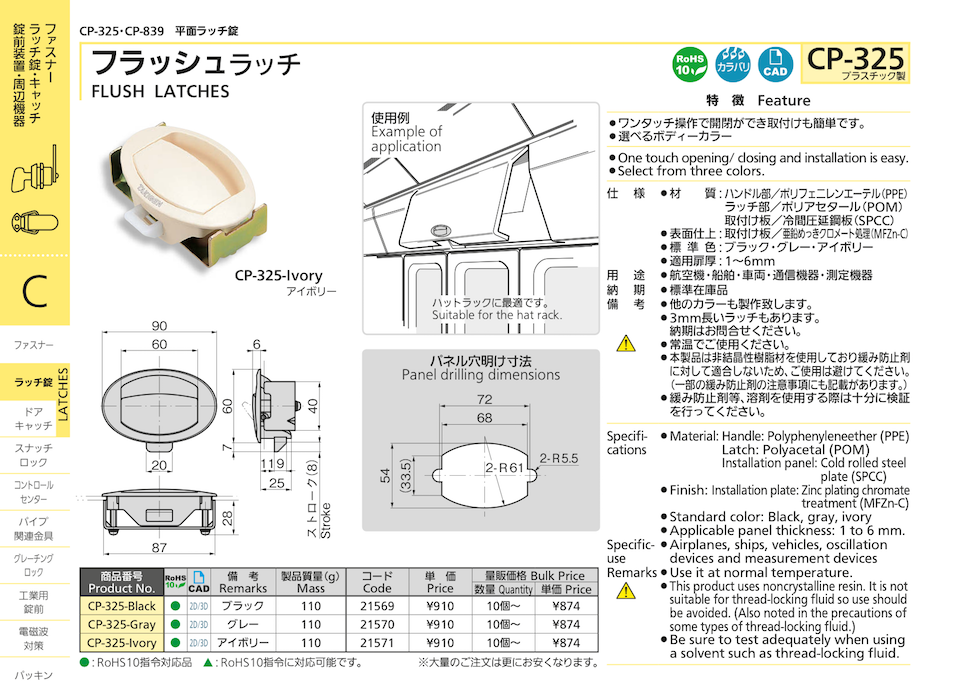

FLUSH LATCHES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
CP-325-Black Black 21569

Request for Quote

CP-325-Gray Gray 21570

Request for Quote

CP-325-Ivory Ivory 21571

Request for Quote

Features

    • One touch opening/ closing and installation is easy.
    • Select from three colors.

Specifications

    • Material: Handle: Polyphenyleneether (PPE)
      Latch: Polyacetal (POM)
      Installation panel: Cold rolled steel plate (SPCC)
    • Finish: Installation plate: Zinc plating chromate
      treatment (MFZn-C)
    • Standard color: Black, gray, ivory
    • Applicable panel thickness: 1 to 6 mm.

Specific Use

    • Airplanes, ships, vehicles, oscillation devices and measurement devices

Remarks

    • Use it at normal temperature.
    • This product uses noncrystalline resin. It is not suitable for thread-locking fluid so use should be avoided. (Also noted in the precautions of some types of thread-locking fluid.)
    • Be sure to test adequately when using a solvent such as thread-locking fluid.
