CP-316-A

PLASTIC BIT LOCKS

Catalogue View

PLASTIC BIT LOCKS

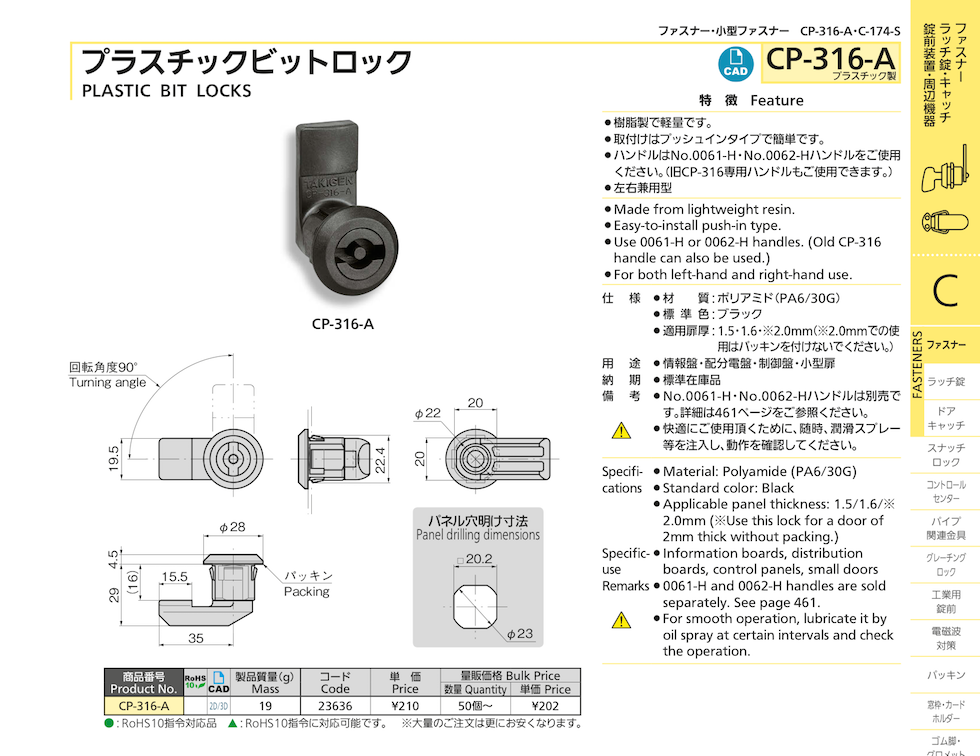

PLASTIC BIT LOCKS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
CP-316-A 23636

Request for Quote

Features

    • Made from lightweight resin.
    • Easy-to-install push-in type.
    • Use 0061-H or 0062-H handles. (Old CP-316 handle can also be used.)
    • For both left-hand and right-hand use.

Specifications

    • Material: Polyamide (PA6/30G)
    • Standard color: Black
    • Applicable panel thickness: 1.5/1.6/※2.0mm (※Use this lock for a door of 2mm thick without packing.)

Specific Use

    • Information boards, distribution boards, control panels, small doors

Remarks

    • 0061-H and 0062-H handles are sold separately. See page 458.
    • For smooth operation, lubricate it by oil spray at certain intervals and check the operation.
