C-444

LOCKS FOR SERVER RACK

LOCKS FOR SERVER RACK

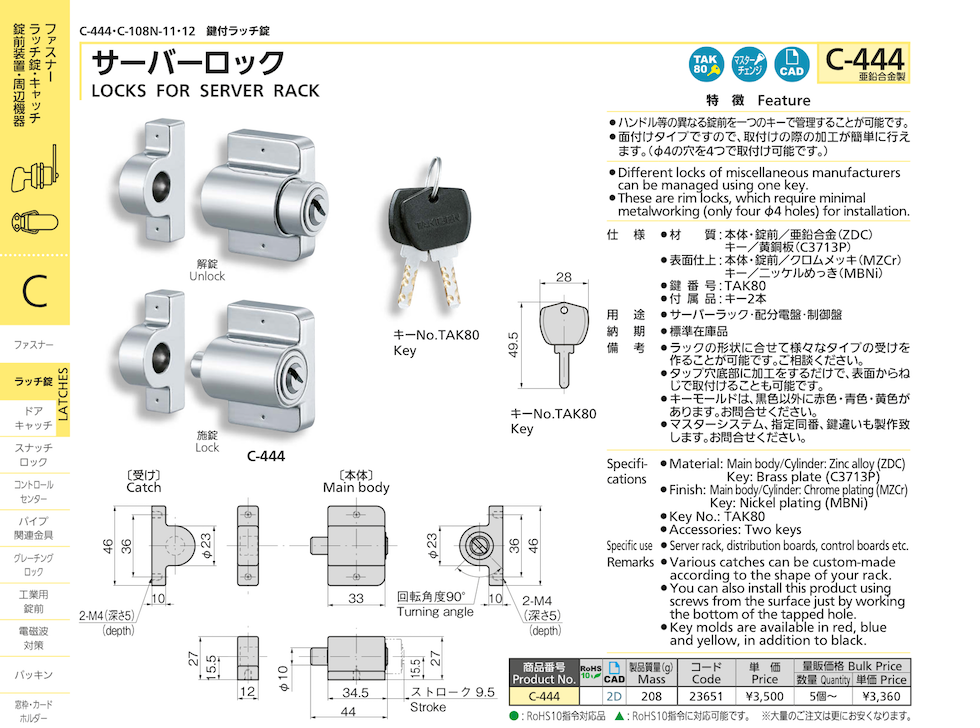

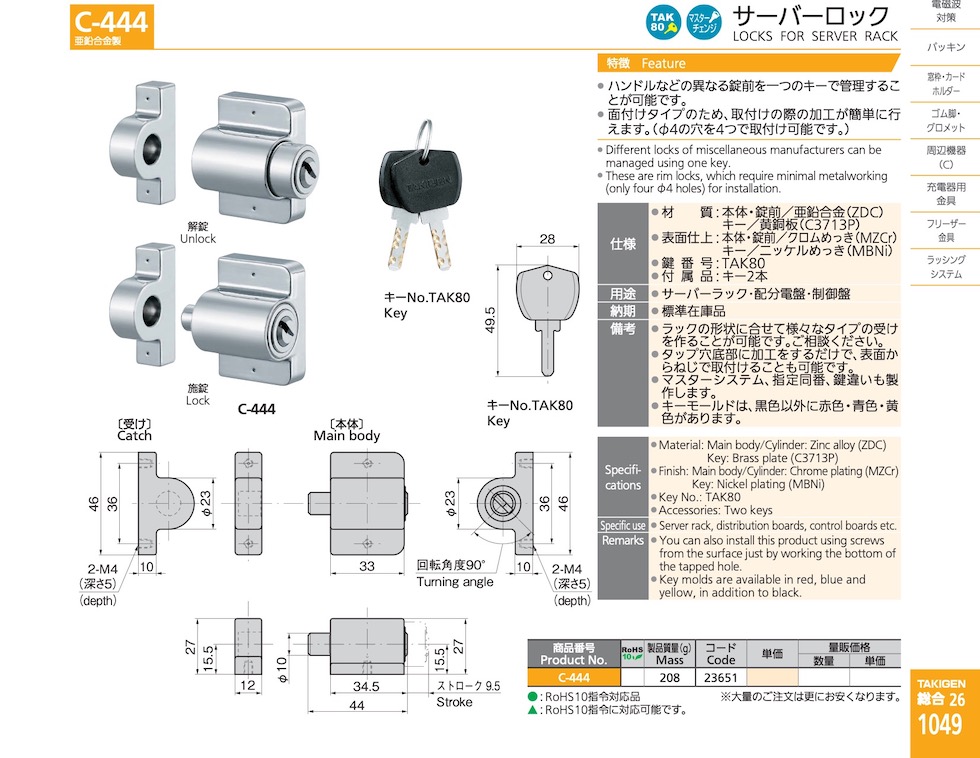

LOCKS FOR SERVER RACK Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-444 23651

Request for Quote

Features

    • Different locks of miscellaneous manufacturers can be managed using one key.
    • These are rim locks, which require minimal metalworking (only four φ4 holes) for installation.

Specifications

    • Material: Main body/Cylinder: Zinc alloy (ZDC)
      Key: Brass plate (C3713P)
    • Finish: Main body/Cylinder: Chrome plating (MZCr)
      Key: Nickel plating (MBNi)
    • Key No.: TAK80
    • Accessories: Two keys

Specific Use

    • Server rack, distribution boards, control boards etc.

Remarks

    • Various catches can be custom-made according to the shape of your rack.
    • You can also install this product using screws from the surface just by working the bottom of the tapped hole.
    • Key molds are available in red, blue and yellow, in addition to black.
