C-56-C

MAGNETIC CATCHES

MAGNETIC CATCHES

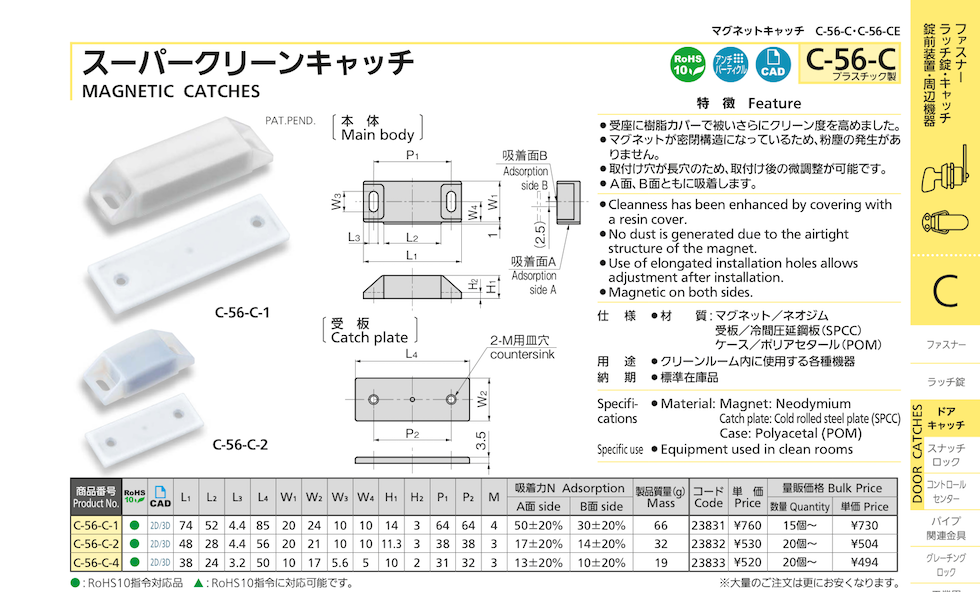

MAGNETIC CATCHES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-56-C-1 23831

Request for Quote

C-56-C-2 23832

Request for Quote

C-56-C-4 23833

Request for Quote

Features

    • Cleanness has been enhanced by covering with a resin cover.
    • No dust is generated due to the airtight structure of the magnet.
    • Use of elongated installation holes allows adjustment after installation.
    • Magnetic on both sides.

Specifications

    • Material: Magnet: Neodymium
      Catch plate: Cold rolled steel plate (SPCC)
      Case: Polyacetal (POM)

Specific Use

    • Equipment used in clean rooms
