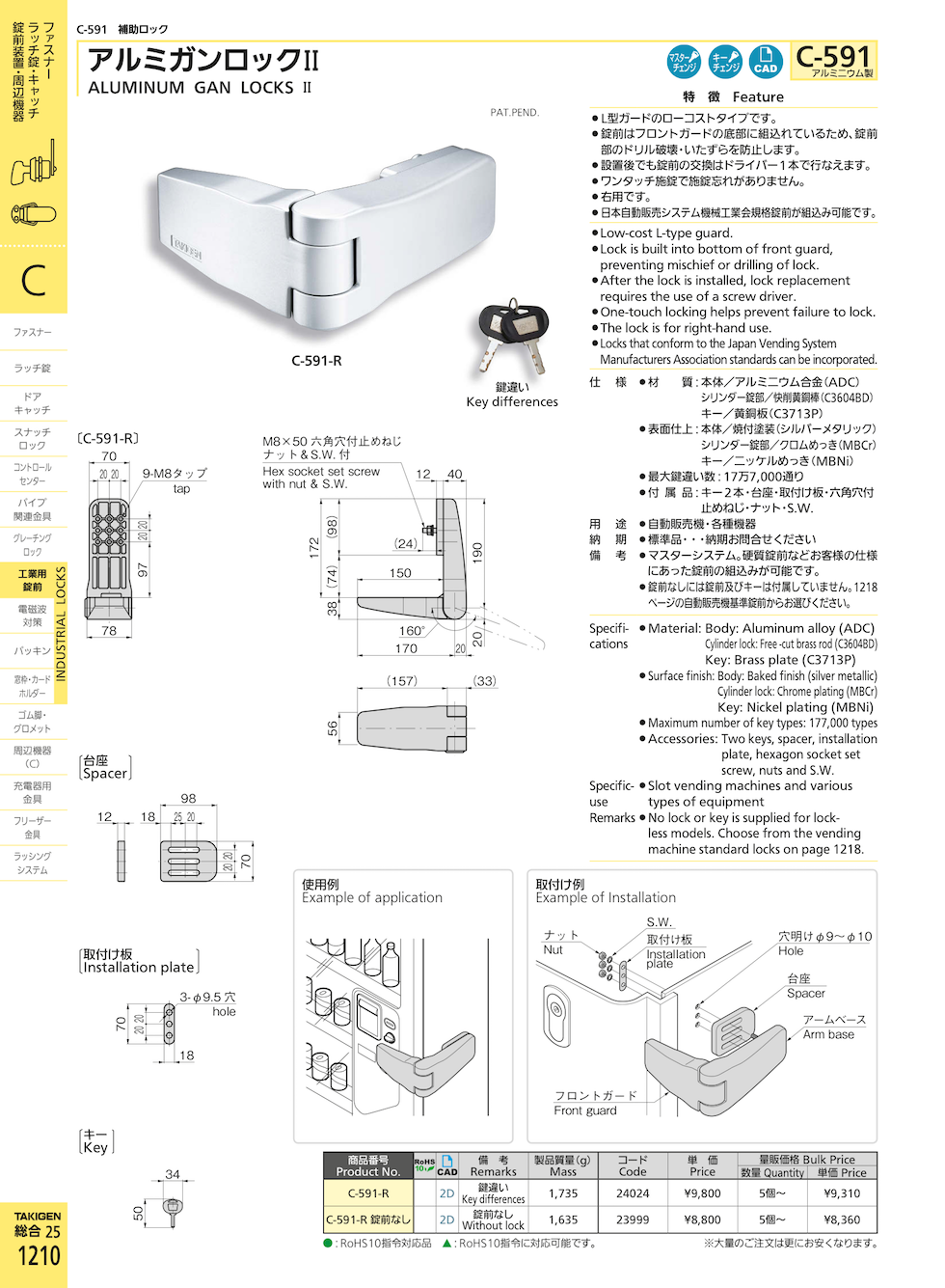

C-591

ALUMINUM GAN LOCKS II

ALUMINUM GAN LOCKS II
ALUMINUM GAN LOCKS II Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-591-R Key differences 24024

Request for Quote

C-591-R Without lock 23999

Request for Quote

Features

    • Low-cost L-type guard.
    • Lock is built into bottom of front guard, preventing mischief or drilling of lock.
    • After the lock is installed, lock replacement requires the use of a screw driver.
    • One-touch locking helps prevent failure to lock.
    • The lock is for right-hand use.
    • Locks that conform to the Japan Vending System Manufacturers Association standards can be incorporated.

Specifications

    • Material: Body: Aluminum alloy (ADC)
      Cylinder lock: Free -cut brass rod (C3604BD)
      Key: Brass plate (C3713P)
    • Surface finish: Body: Baked finish (silver metallic)
      Cylinder lock: Chrome plating (MBCr)
      Key: Nickel plating (MBNi)
    • Maximum number of key types: 177,000 types
    • Accessories: Two keys, spacer, installation plate, hexagon socket set screw, nuts and S.W.

Specific Use

    • Slot vending machines and various types of equipment

Remarks

    • No lock or key is supplied for lock-less models. Choose from the vending machine standard locks on page 1218.
