C-1556

STAINLESS STEEL DIAL PADLOCK

C-1556-RC

STAINLESS STEEL DIAL PADLOCK

STAINLESS STEEL DIAL PADLOCK

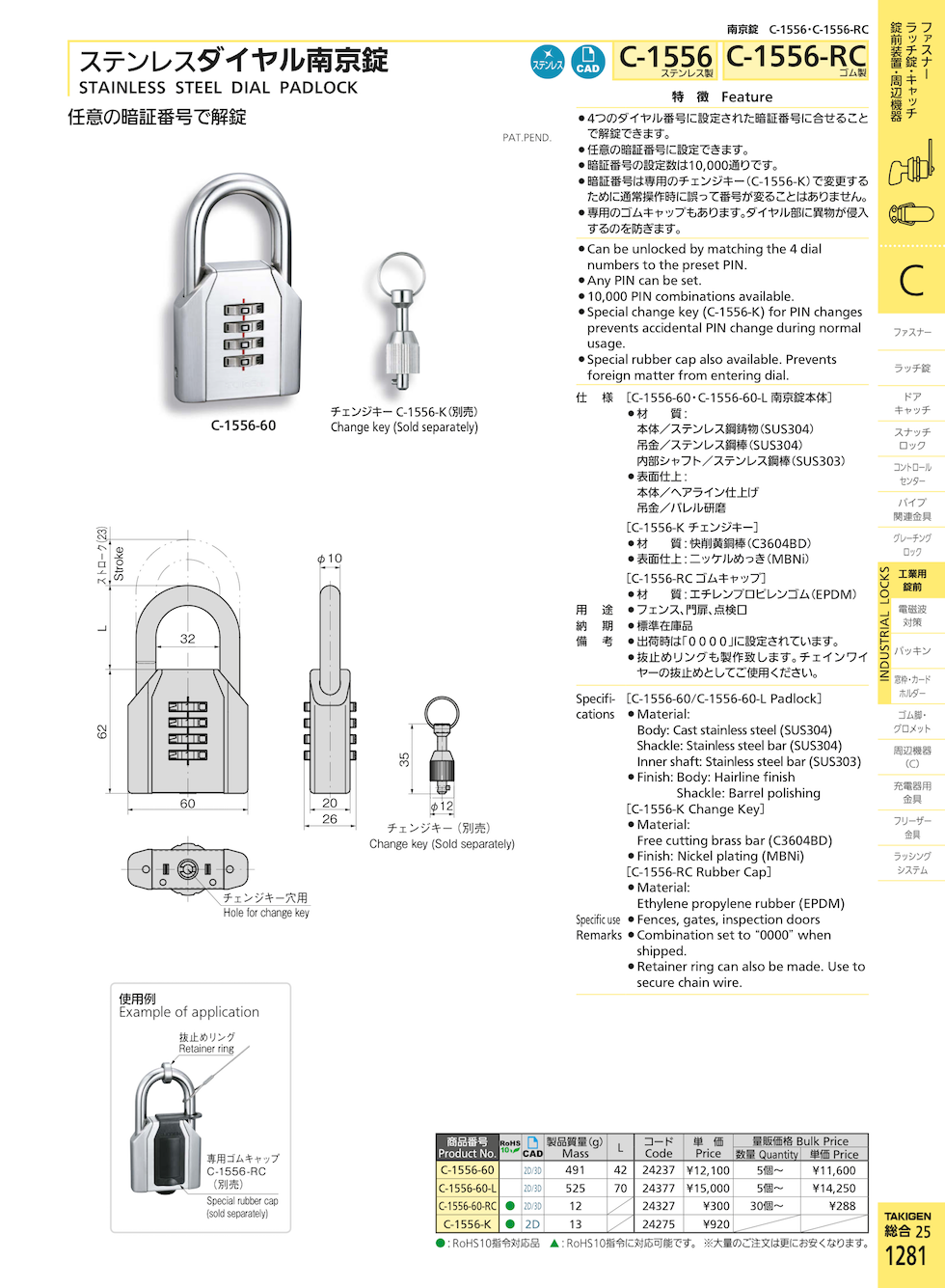

STAINLESS STEEL DIAL PADLOCK Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-1556-60 24237

Request for Quote

C-1556-60-L 24377

Request for Quote

C-1556-60-RC 24327

Request for Quote

C-1556-K 24275

Request for Quote

Features

    • Can be unlocked by matching the 4 dial numbers to the preset PIN.
    • Any PIN can be set.
    • 10,000 PIN combinations available.
    • Special change key (C-1556-K) for PIN changes prevents accidental PIN change during normal usage.
    • Special rubber cap also available. Prevents foreign matter from entering dial.

Specifications

    • [C-1556-60/C-1556-60-L Padlock]
    • Material:
      Body: Cast stainless steel (SUS304)
      Shackle: Stainless steel bar (SUS304)
      Inner shaft: Stainless steel bar (SUS303)
    • Finish: Body: Hairline finish
      Shackle: Barrel polishing
      [C-1556-K Change Key]
    • Material:
      Free cutting brass bar (C3604BD)
    • Finish: Nickel plating (MBNi)
      [C-1556-RC Rubber Cap]
    • Material:
      Ethylene propylene rubber (EPDM)

Specific Use

    • Fences, gates, inspection doors

Remarks

    • Combination set to "0000" when shipped.
    • Retainer ring can also be made. Use to secure chain wire.
