C-300-MCU-T

SHIELDING TAPE (masking)

C-300-MCU-M

SHIELDING TAPE (masking)

SHIELDING TAPE (masking)

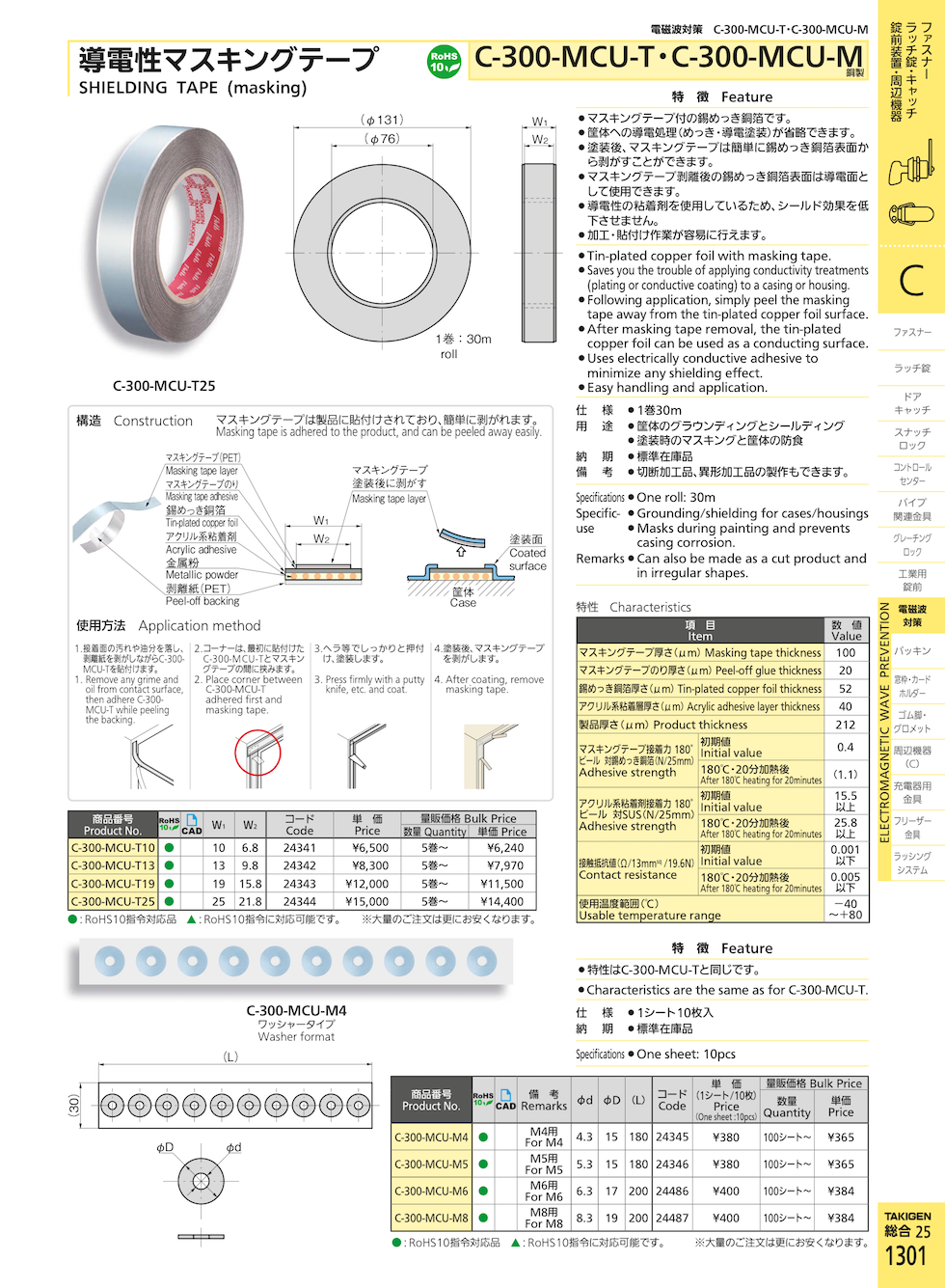

SHIELDING TAPE (masking) Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
C-300-MCU-T10 30m 24341

Request for Quote

C-300-MCU-T13 30m 24342

Request for Quote

C-300-MCU-T19 30m 24343

Request for Quote

C-300-MCU-T25 30m 24344

Request for Quote

C-300-MCU-M4 For M4 24345

Request for Quote

C-300-MCU-M5 For M5 24346

Request for Quote

C-300-MCU-M6 For M6 24486

Request for Quote

C-300-MCU-M8 For M8 24487

Request for Quote

Features

    • Tin-plated copper foil with masking tape.
    • Saves you the trouble of applying conductivity treatments (plating or conductive coating) to a casing or housing.
    • Following application, simply peel the masking tape away from the tin-plated copper foil surface.
    • After masking tape removal, the tin-plated copper foil can be used as a conducting surface.
    • Uses electrically conductive adhesive to minimize any shielding effect.
    • Easy handling and application.

Specifications

    C-300-MCU-T
    • One roll: 30m

    C-300-MCU-M
    • One sheet: 10pcs

Specific Use

    • Grounding/shielding for cases/housings
    • Masks during painting and prevents casing corrosion.

Remarks

    • Can also be made as a cut product and in irregular shapes.
