CP-468

CONNECTOR LOCK SERIES FOR RAPID RECHARGER

LE-468

CONNECTOR LOCK SERIES FOR RAPID RECHARGER

CONNECTOR LOCK SERIES FOR RAPID RECHARGER

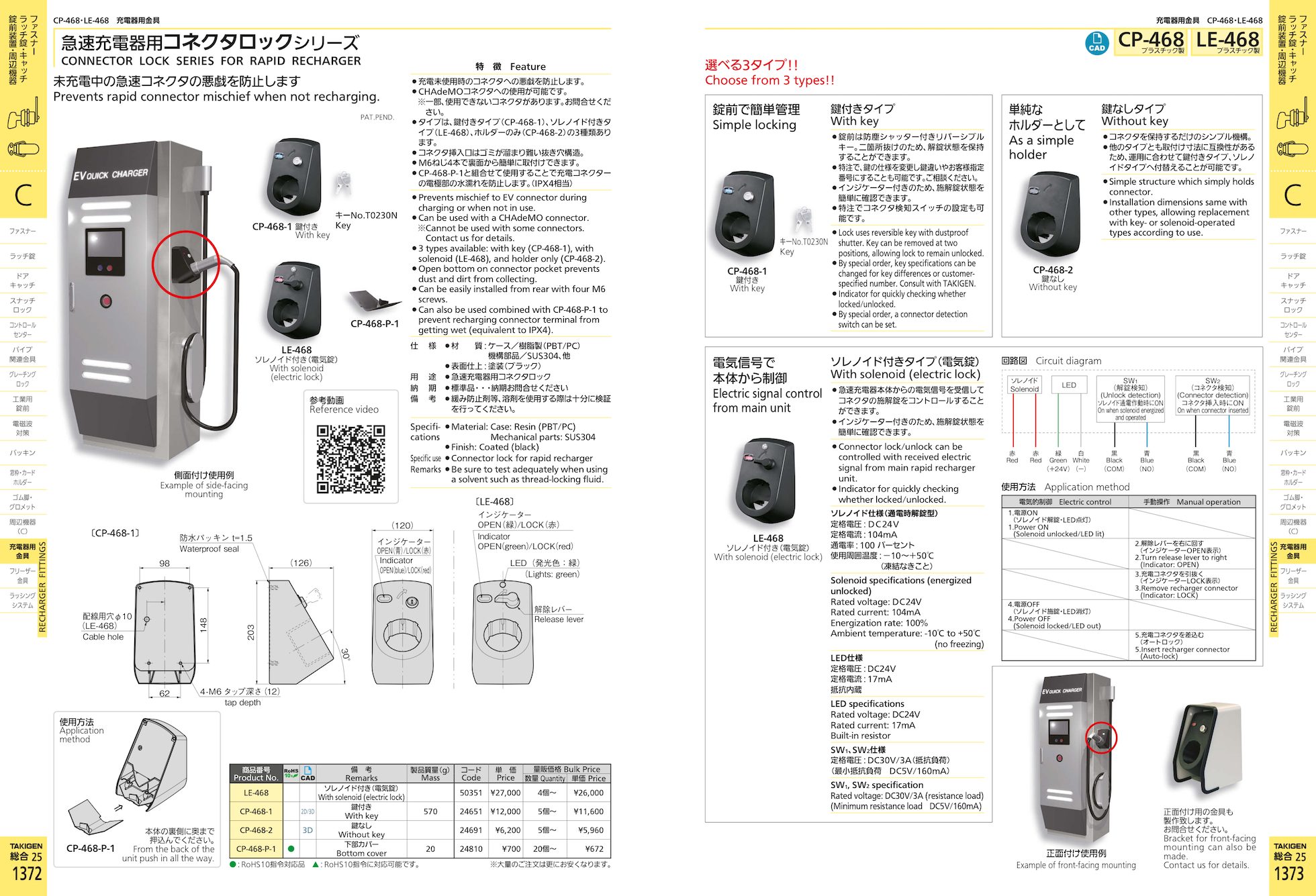

CONNECTOR LOCK SERIES FOR RAPID RECHARGER Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
LE-468 With solenoid (electric lock) 50351

Request for Quote

CP-468-1 With key 24651

Request for Quote

CP-468-2 Without key 24691

Request for Quote

CP-468-P-1 Bottom cover 24810

Request for Quote

Features

    CP-468
    • Prevents mischief to EV connector during charging or when not in use.
    • Can be used with a CHAdeMO connector.
      *Cannot be used with some connectors. Contact us for details.
    • 3 types available: with key (CP-468-1), with solenoid (LE-468), and holder only (CP-468-2).
    • Open bottom on connector pocket prevents dust and dirt from collecting.
    • Can be easily installed from rear with four M6 screws.
    • Can also be used combined with CP-468-P-1 to prevent recharging connector terminal from getting wet (equivalent to IPX4).
    • Lock uses reversible key with dustproof shutter. Key can be removed at two positions, allowing lock to remain unlocked.
    • By special order, key specifications can be changed for key differences or customer-specified number. Consult with TAKIGEN.
    • Indicator for quickly checking whether locked/unlocked.
    • By special order, a connector detection switch can be set.
    • Simple structure which simply holds connector.
    • Installation dimensions same with other types, allowing replacement with key- or solenoid-operated types according to use.

    LE-468
    • Prevents mischief to EV connector during charging or when not in use.
    • Can be used with a CHAdeMO connector.
      *Cannot be used with some connectors. Contact us for details.
    • 3 types available: with key (CP-468-1), with solenoid (LE-468), and holder only (CP-468-2).
    • Open bottom on connector pocket prevents dust and dirt from collecting.
    • Can be easily installed from rear with four M6 screws.
    • Can also be used combined with CP-468-P-1 to prevent recharging connector terminal from getting wet (equivalent to IPX4).
    • Connector lock/unlock can be controlled with received electric signal from main rapid recharger unit.
    • Indicator for quickly checking whether locked/unlocked.
      Solenoid specifications (energized unlocked)
      Rated voltage: DC24V
      Rated current: 104mA
      Energization rate: 100%
      Ambient temperature: -10°C to +50°C
      (no freezing)
      LED specifications
      Rated current: 17mA
      Built-in resistor
      SW1, SW2 specification
      Rated voltage: DC30V/3A (resistance load)
      (Minimum resistance load DC5V/160mA)

Specifications

    • Material: Case: Resin (PBT/PC)
      Mechanical parts: SUS304
    • Finish: Coated (black)

Specific Use

    • Connector lock for rapid recharger

Remarks

    • Be sure to test adequately when using a solvent such as thread-locking fluid.
