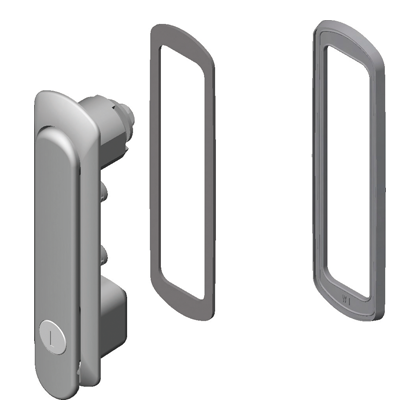

A-464-PC
PLASTIC COVERS FOR A-464
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| A-464-PC-1 |
|
03567 | ||||
| A-464-PC-2 |
|
03959 | ||||
| A-464-PC-3 |
|
04220 |
Features
- Applicable to the A-464 series.
- Provides better corrosion resistance and dust proofness when installed on the 464 series.
Specifications
- Material: AES resin
- Finish: Grained pattern
- Standard color: 5Y7/1 (Ivory)
Remarks
- This product was developed to improve corrosion resistance and dust proofness of the A-464 series. Note that it is not watertight although it can be used outdoors without any major problem. (IPX3)
- For level of protection of waterproofing and testing conditions, please see P.1718
- Sheet packing is not included.Use the sheet packing attached to the handle incorporated between the door and this product.
- It is recommended that thread-locking fluid be used to prevent loosening of the mounting screws for the catch.
