A-1900
STAINLESS STEEL FLUSH HANDLES

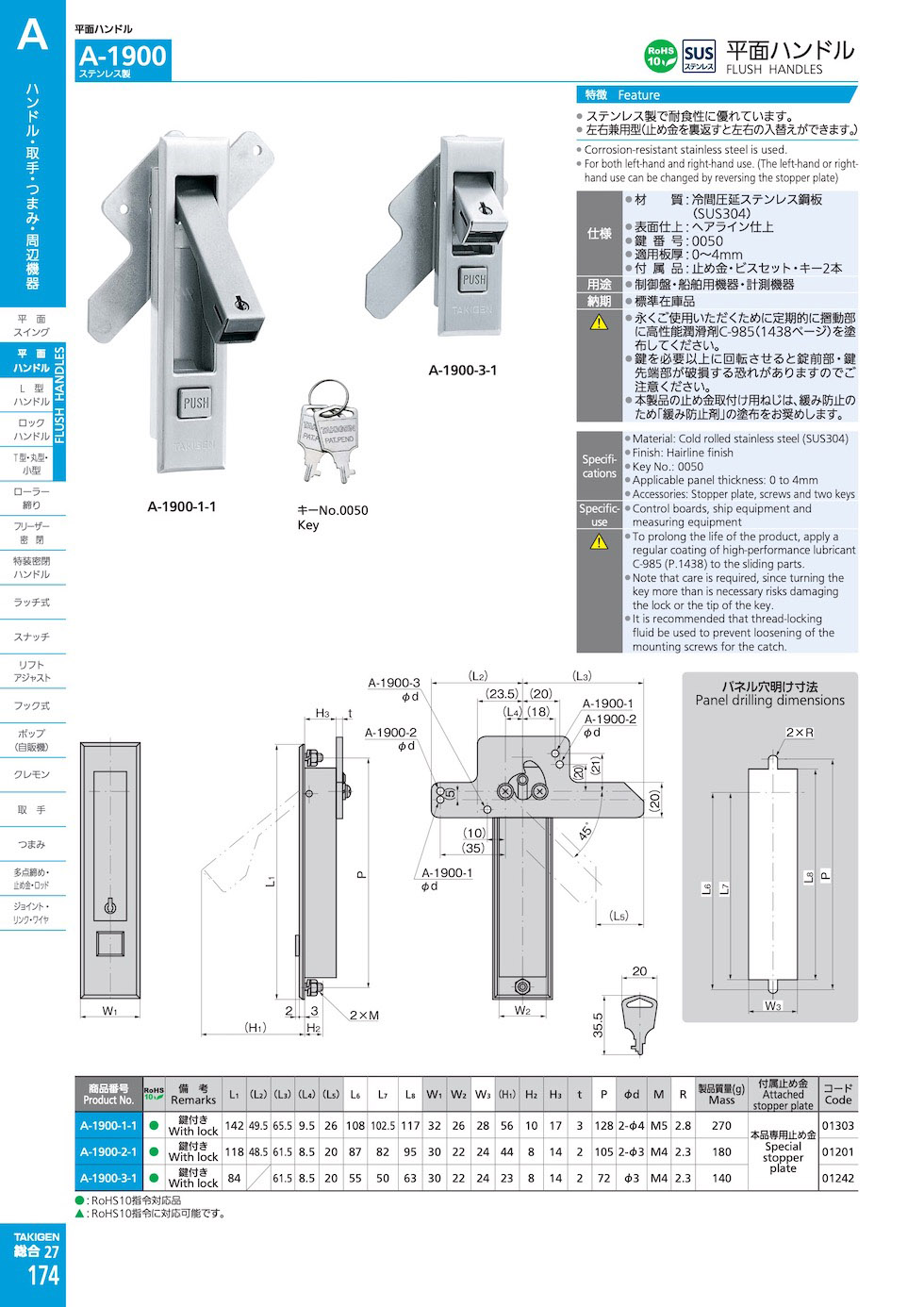

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| A-1900-1-1 |
|
With lock | 01303 | |||
| A-1900-2-1 |
|
With lock | 01201 | |||
| A-1900-3-1 |
|
With lock | 01242 |
Features
- Corrosion-resistant stainless steel is used.
- For both left-hand and right-hand use. (The left-hand or right-hand use can be changed by reversing the stopper plate)
Specifications
- Material: Cold rolled stainless steel (SUS304)
- Finish: Hairline finish
- Key No.: 0050
- Applicable panel thickness: 0 to 4mm
- Accessories: Stopper plate, screws and two keys
Specific Use
- Control boards, ship equipment and measuring equipment
Remarks
- To prolong the life of the product, apply a regular coating of high-performance lubricant C-985 (P.1438) to the sliding parts.
- Note that care is required, since turning the key more than is necessary risks damaging the lock or the tip of the key.
- It is recommended that thread-locking fluid be used to prevent loosening of the mounting screws for the catch.
