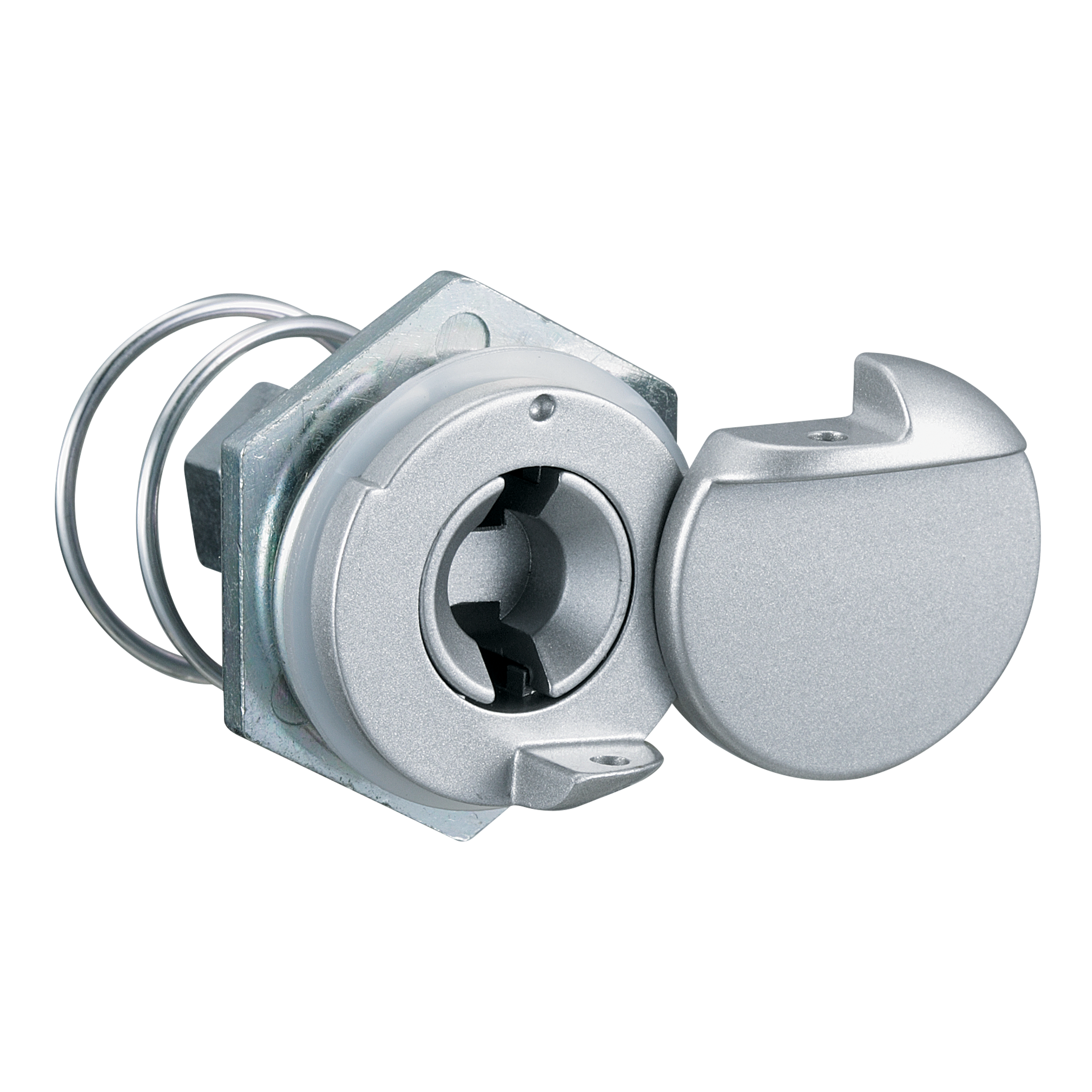

A-120-2
LOCK HANDLES
A-120-3
LOCK HANDLES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| A-120-2 |
|
00258 | ||||
| A-120-2-H |
|
00259 | ||||
| A-120-2 |
|
cap A-1147-2 cap | 00260 | |||
| A-120-3 |
|
00261 | ||||
| A-120-3-H |
|
00262 | ||||
| A-120-3 |
|
cap | 00263 |
Features
- For both left-hand and right-hand use.
Specifications
-
A-120-3
- Material: Main body: Free cutting bross bar (C3602BD)
Handle: Cold rolled steel plate (SPCC)
Cap: Brass plate (C3604BD) - Finish: Main body·Cap: Chrome plating (MBCr)
Handle: Chrome plating (MFCr)
-
A-120-2
- Material: Main body: Zinc alloy (ZDC)
Handle: Cold rolled steel plate (SPCC)
Cap: Cold rolled stainless steel plate (SUS304) - Finish: Main body: Chrome plating (MZCr)
Handle: Chrome plating (MFCr)
Cap: Gloss barrel polishing
Specific Use
- Small power/distribution and control boards
Remarks
- Use special stopper plate for A-120-3.(optional)
- Set the torque of the M8 nut for stopper plate within 6.2N·m.
- It is recommended that thread-locking fluid be used to prevent loosening of the mounting screws for the catch.
