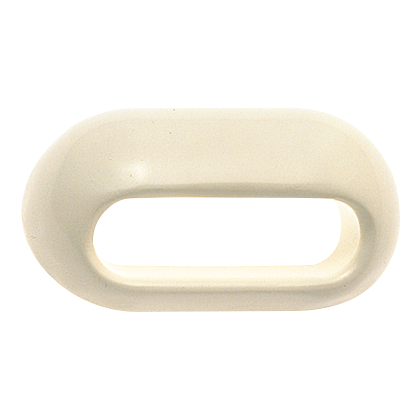

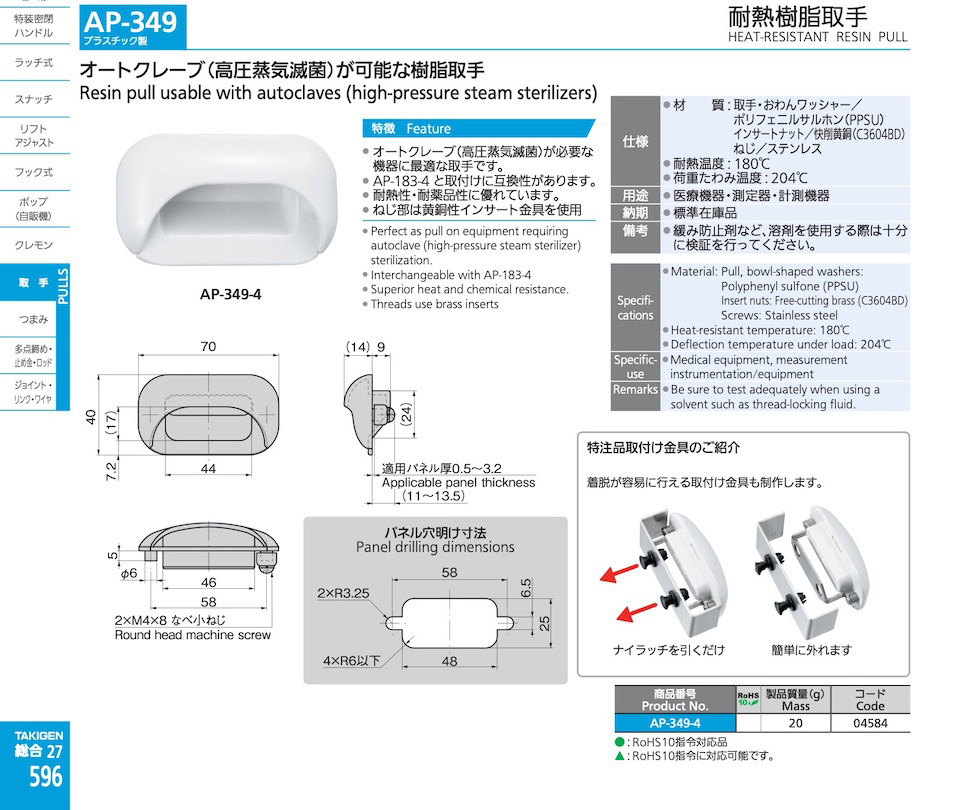

AP-349
HEAT-RESISTANT RESIN PULL
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| AP-349-4 |
|
04584 |
Features
- Perfect as pull on equipment requiring autoclave (high-pressure steam sterilizer) sterilization.
- Interchangeable with AP-183-4
- Superior heat and chemical resistance.
- Threads use brass inserts
Specifications
- Material: Pull, bowl-shaped washers: Polyphenyl sulfone (PPSU)
Insert nuts: Free-cutting brass (C3604BD)
Screws: Stainless steel - Heat-resistant temperature: 180°C
- Deflection temperature under load: 204°C
Specific Use
- Medical equipment, measurement instrumentation/equipment
Remarks
- Be sure to test adequately when using a solvent such as thread-locking fluid.
