BP-13

MARINE HINGES

MARINE HINGES

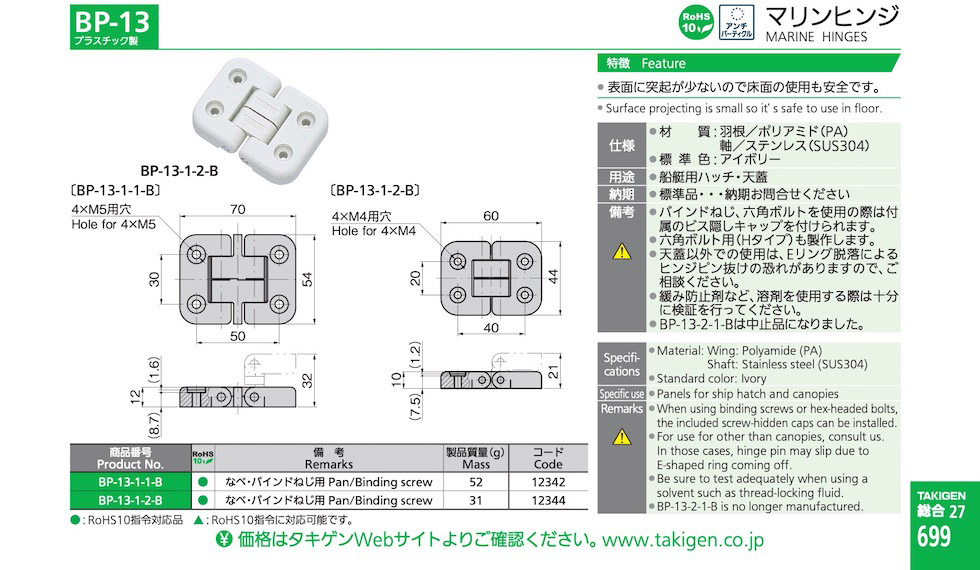

MARINE HINGES Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
BP-13-1-1-B Pan/Binding screw 12342

Request for Quote

BP-13-1-2-B Pan/Binding screw 12344

Request for Quote

Features

    • Surface projecting is small so it's safe to use in floor.

Specifications

    • Material: Wing: Polyamide (PA)
      Shaft: Stainless steel (SUS304)
    • Standard color: Ivory

Specific Use

    • Panels for ship hatch and canopies

Remarks

    • When using binding screws or hex-headed bolts, the included screw-hidden caps can be installed.
    • For use for other than canopies, consult us. In those cases, hinge pin may slip due to E-shaped ring coming off.
    • Be sure to test adequately when using a solvent such as thread-locking fluid.
    • BP-13-2-1-B is no longer manufactured.
