B-592
CONCEALED HINGES

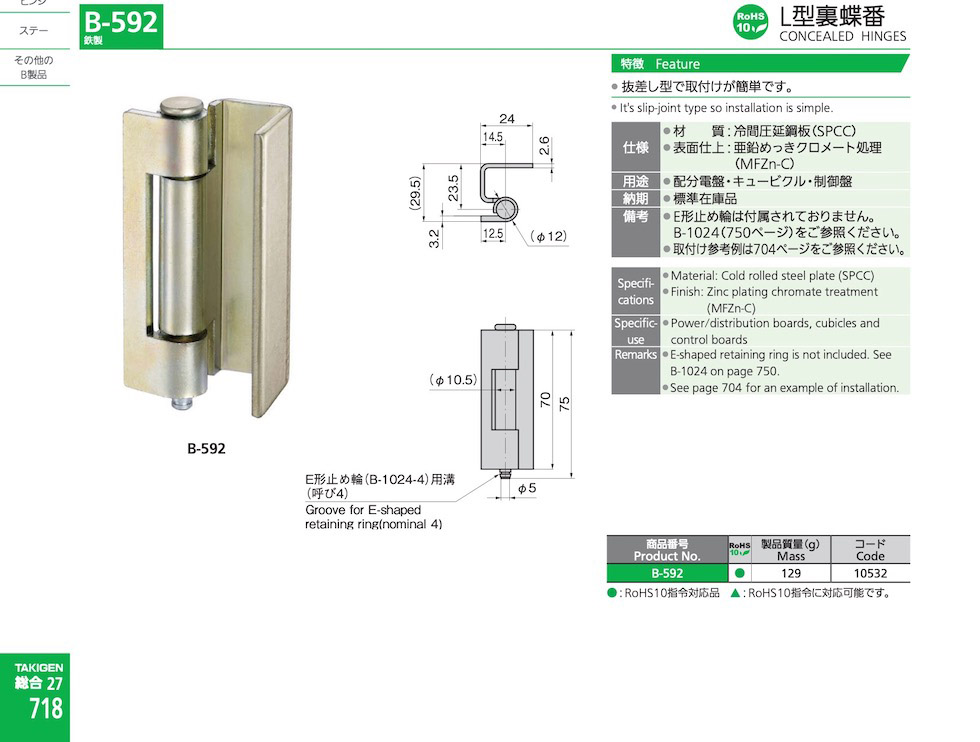

Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-592 |
|
10532 |
Features
- It's slip-joint type so installation is simple.
Specifications
- Material: Cold rolled steel plate (SPCC)
- Finish: Zinc plating chromate treatment (MFZn-C)
Specific Use
- Power/distribution boards, cubicles and control boards
Remarks
- E-shaped retaining ring is not included. See B-1024 on page 750.
- See page 704 for an example of installation.
