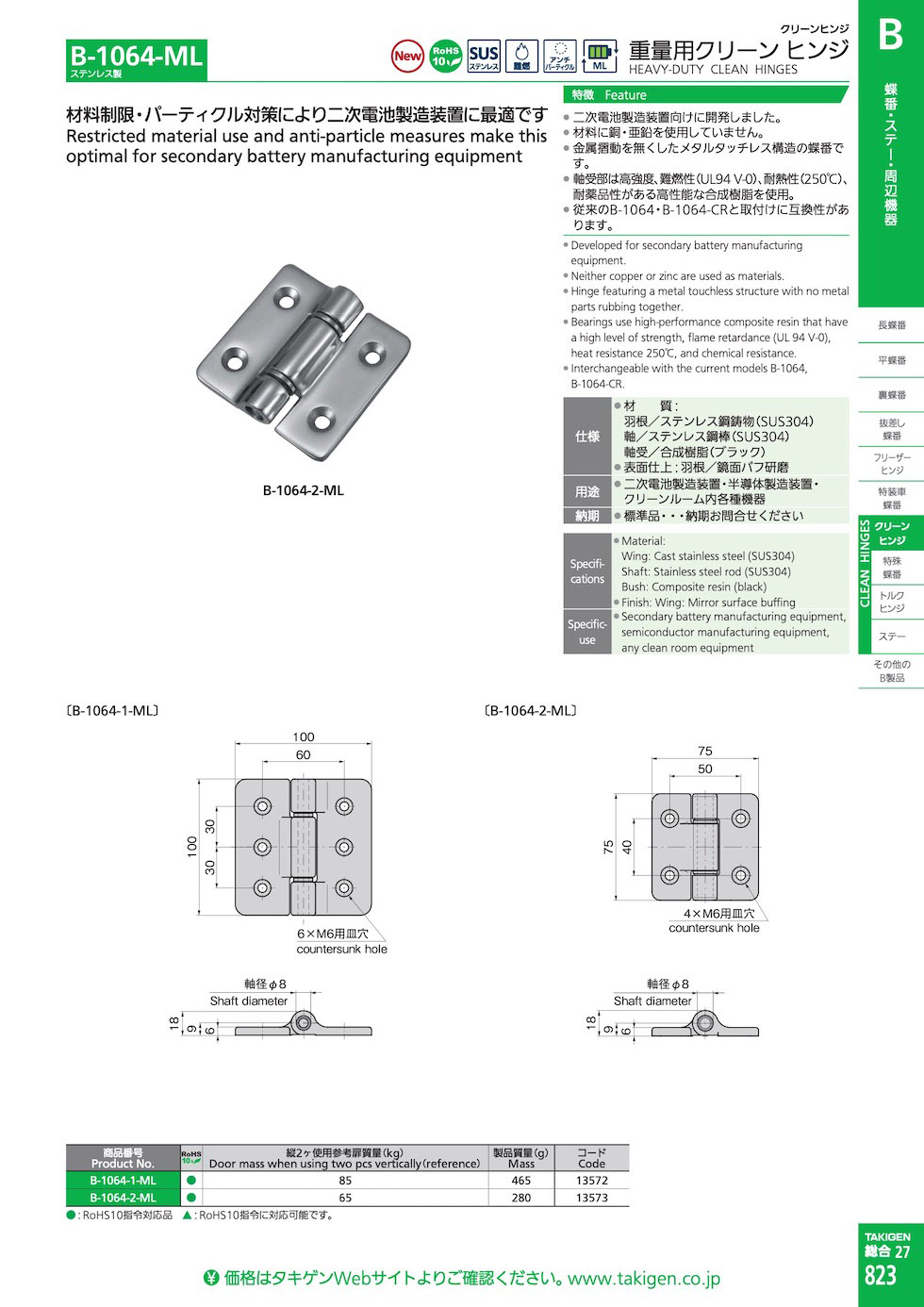

B-1064-ML
STAINLESS STEEL HEAVY-DUTY CLEAN HINGES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-1064-1-ML |
|
13572 | ||||
| B-1064-2-ML |
|
13573 |
Features
- Developed for secondary battery manufacturing equipment.
- Neither copper or zinc are used as materials.
- Hinge featuring a metal touchless structure with no metal parts rubbing together.
- Bearings use high-performance composite resin that have a high level of strength, flame retardance (UL 94 V-0), heat resistance 250°C, and chemical resistance.
- Interchangeable with the current models B-1064,
B-1064-CR.
Specifications
- Material:
Wing: Cast stainless steel (SUS304)
Shaft: Stainless steel rod (SUS304)
Bush: Composite resin (black) - Finish: Wing: Mirror surface buffing
Specific Use
- Secondary battery manufacturing equipment, semiconductor manufacturing equipment, any clean room equipment
