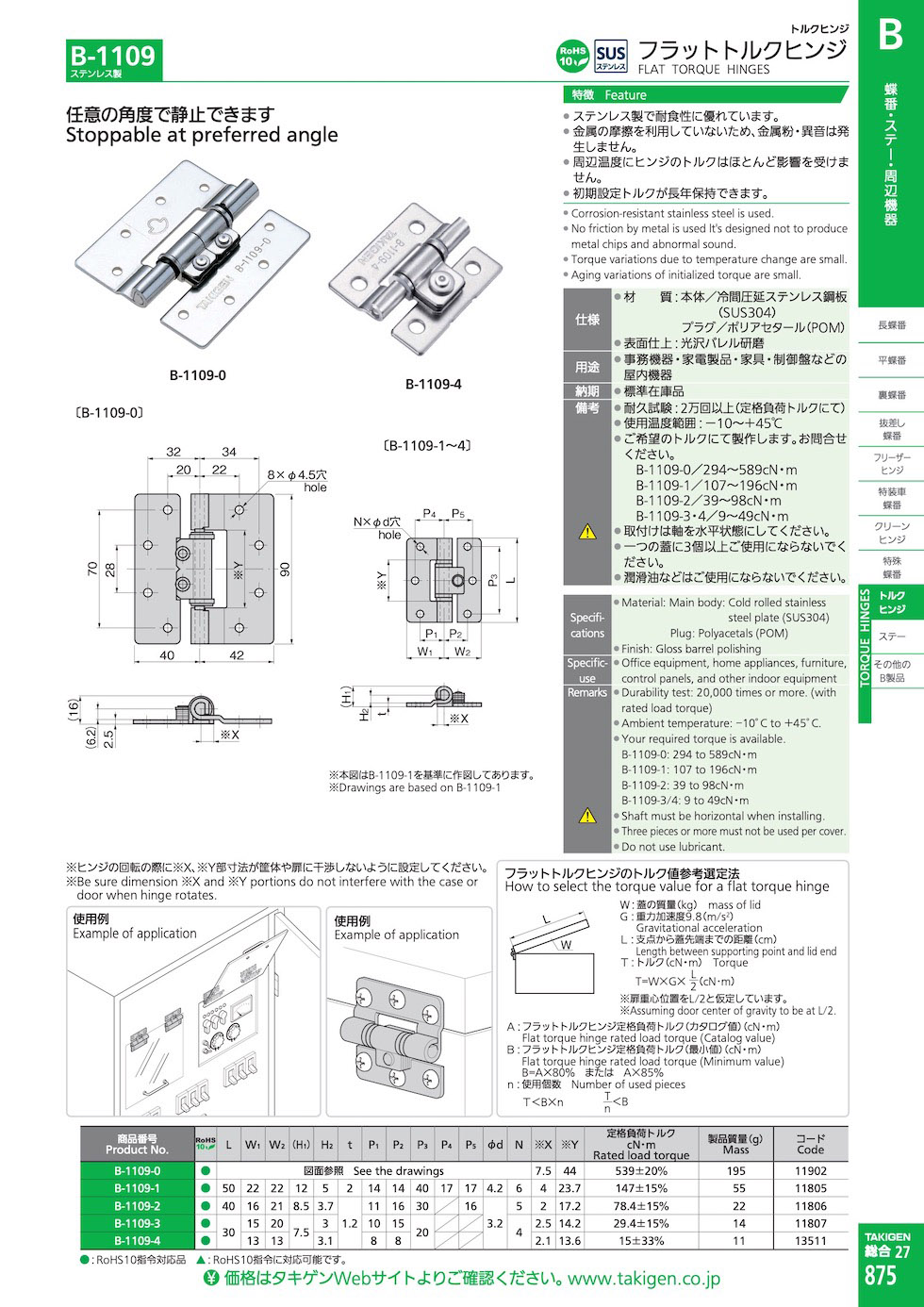

B-1109
STAINLESS STEEL FLAT TORQUE HINGES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-1109-0 |
|
11902 | ||||
| B-1109-1 |
|
11805 | ||||
| B-1109-2 |
|
11806 | ||||
| B-1109-3 |
|
11807 | ||||
| B-1109-4 |
|
13511 |
Features
- Corrosion-resistant stainless steel is used.
- No friction by metal is used lt's designed not to produce metal chips and abnormal sound.
- Torque variations due to temperature change are small.
- Aging variations of initialized torque are small.
Specifications
- Material: Main body: Cold rolled stainless steel plate (SUS304)
Plug: Polyacetals (POM) - Finish: Gloss barrel polishing
Specific Use
- Office equipment, home appliances, furniture, control panels, and other indoor equipment
Remarks
- Durability test: 20,000 times or more. (with rated load torque)
- Ambient temperature: -10°C to +45°C.
- Your required torque is available.
B-1109-0: 294 to 589cN·m
B-1109-1: 107 to 196cN·m
B-1109-2: 39 to 98cN·m
B-1109-3/4: 9 to 49cN·m - Shaft must be horizontal when installing.
- Three pieces or more must not be used per cover.
- Do not use lubricant.
