B-894

SLIDE STAYS WITH LOCK RELEASE BELTS

Catalogue View

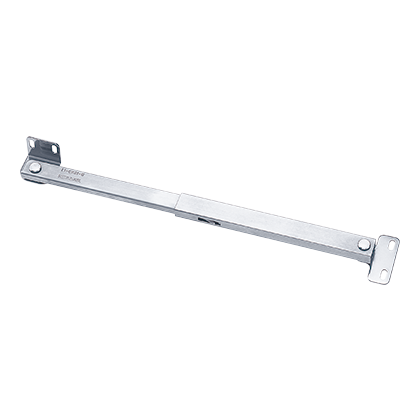

SLIDE STAYS WITH LOCK RELEASE BELTS

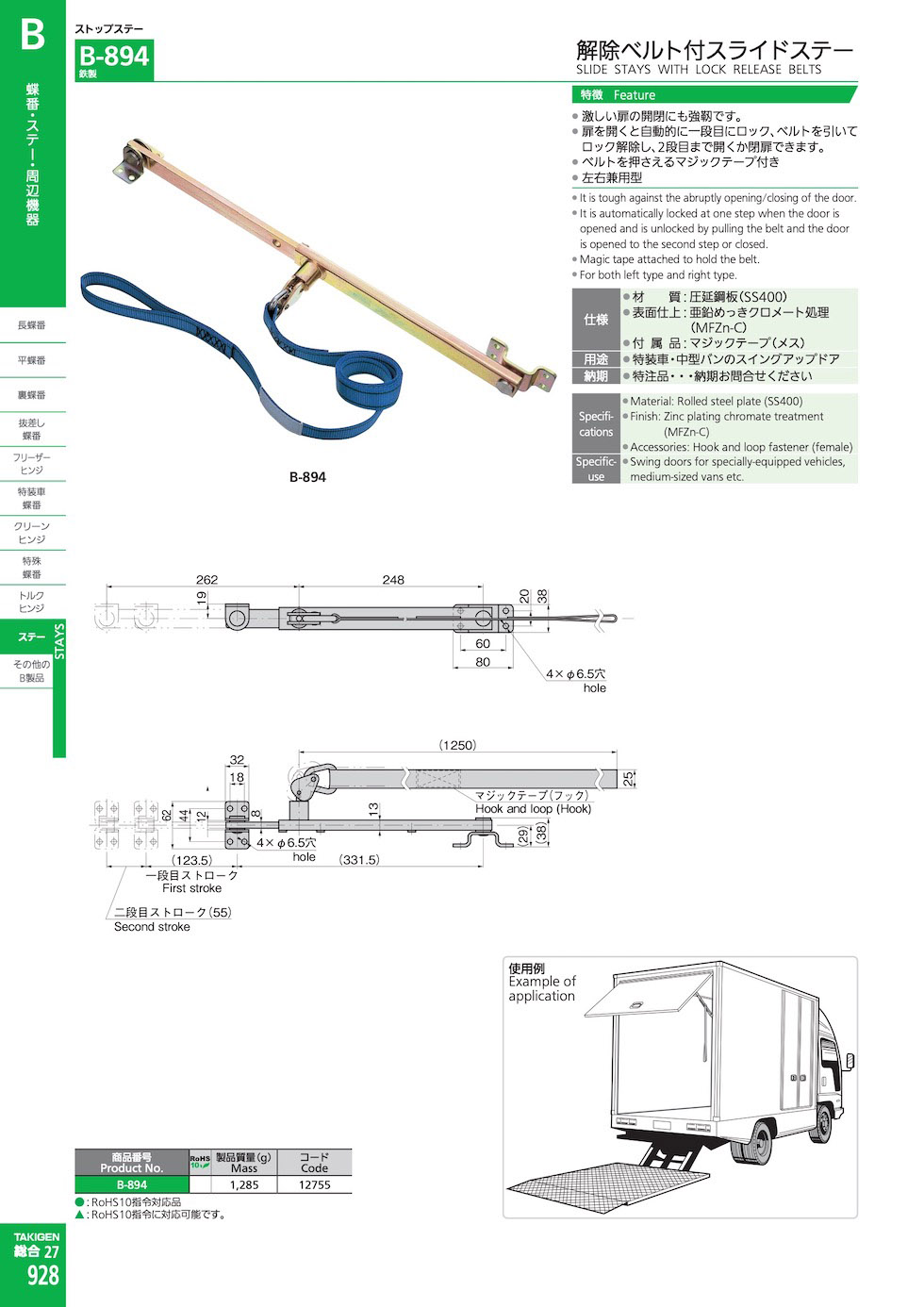

SLIDE STAYS WITH LOCK RELEASE BELTS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
B-894 12755

Request for Quote

Features

    • It is tough against the abruptly opening/closing of the door.
    • It is automatically locked at one step when the door is opened and is unlocked by pulling the belt and the door is opened to the second step or closed.
    • Magic tape attached to hold the belt.
    • For both left type and right type.

Specifications

    • Material: Rolled steel plate (SS400)
    • Finish: Zinc plating chromate treatment (MFZn-C)
    • Accessories: Hook and loop fastener (female)

Specific Use

    • Swing doors for specially-equipped vehicles, medium-sized vans etc.
