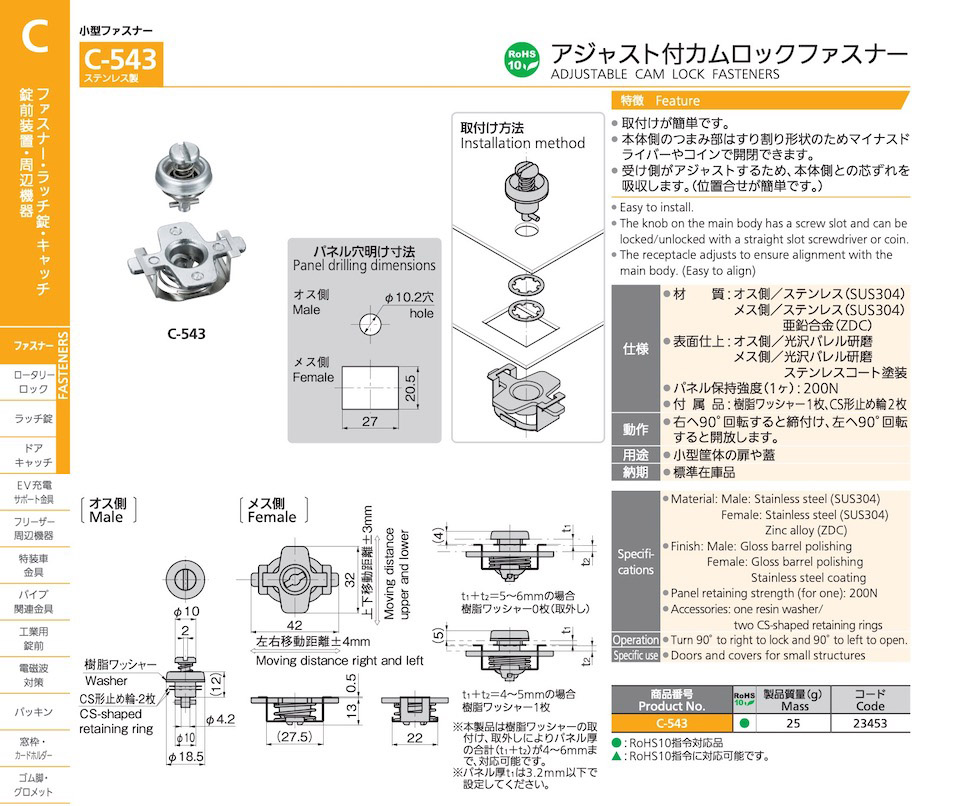

C-543
ADJUSTABLE CAM LOCK FASTENERS
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| C-543 |
|
23453 |
Features
- Easy to install.
- The knob on the main body has a screw slot and can be locked/unlocked with a straight slot screwdriver or coin.
- The receptacle adjusts to ensure alignment with the main body. (Easy to align)
Specifications
- Material: Male: Stainless steel (SUS304)
Female: Stainless steel (SUS304)
Zinc alloy (ZDC) - Finish: Male: Gloss barrel polishing
Female: Gloss barrel polishing
Stainless steel coating - Panel retaining strength (for one): 200N
- Accessories: one resin washer/
two CS-shaped retaining rings
Specific Use
- Doors and covers for small structures
