CP-645-1

LOW-PROFILE PANEL LOCKS

Catalogue View

LOW-PROFILE PANEL LOCKS

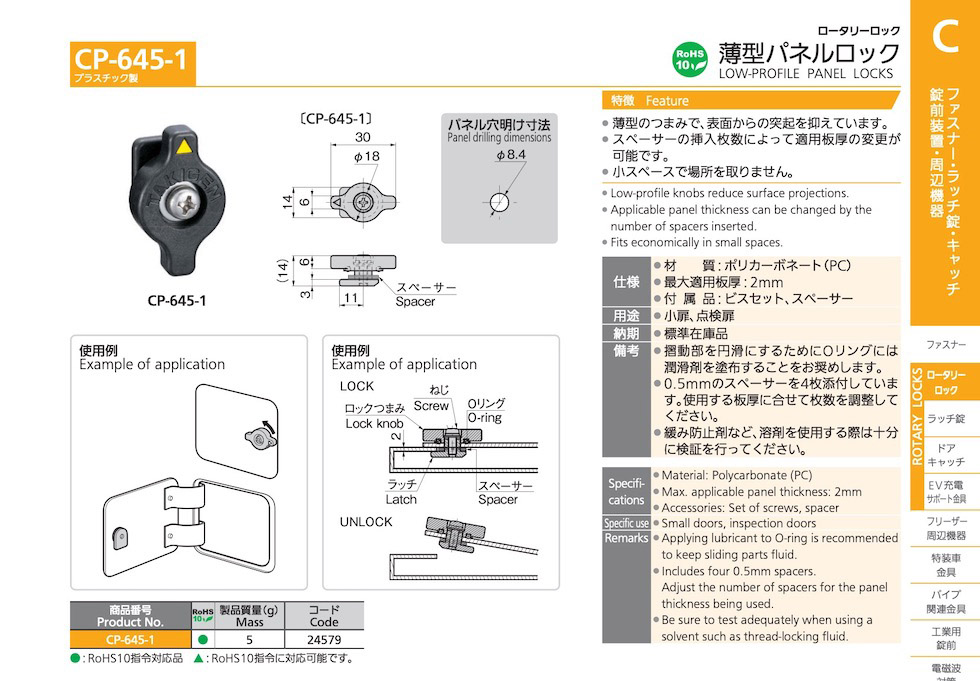

LOW-PROFILE PANEL LOCKS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
CP-645-1 24579

Request for Quote

Features

    • Low-profile knobs reduce surface projections.
    • Applicable panel thickness can be changed by the number of spacers inserted.
    • Fits economically in small spaces.

Specifications

    • Material: Polycarbonate (PC)
    • Max. applicable panel thickness: 2mm
    • Accessories: Set of screws, spacer

Specific Use

    • Small doors, inspection doors

Remarks

    • Applying lubricant to O-ring is recommended to keep sliding parts fluid.
    • Includes four 0.5mm spacers.
      Adjust the number of spacers for the panel thickness being used.
    • Be sure to test adequately when using a solvent such as thread-locking fluid.
