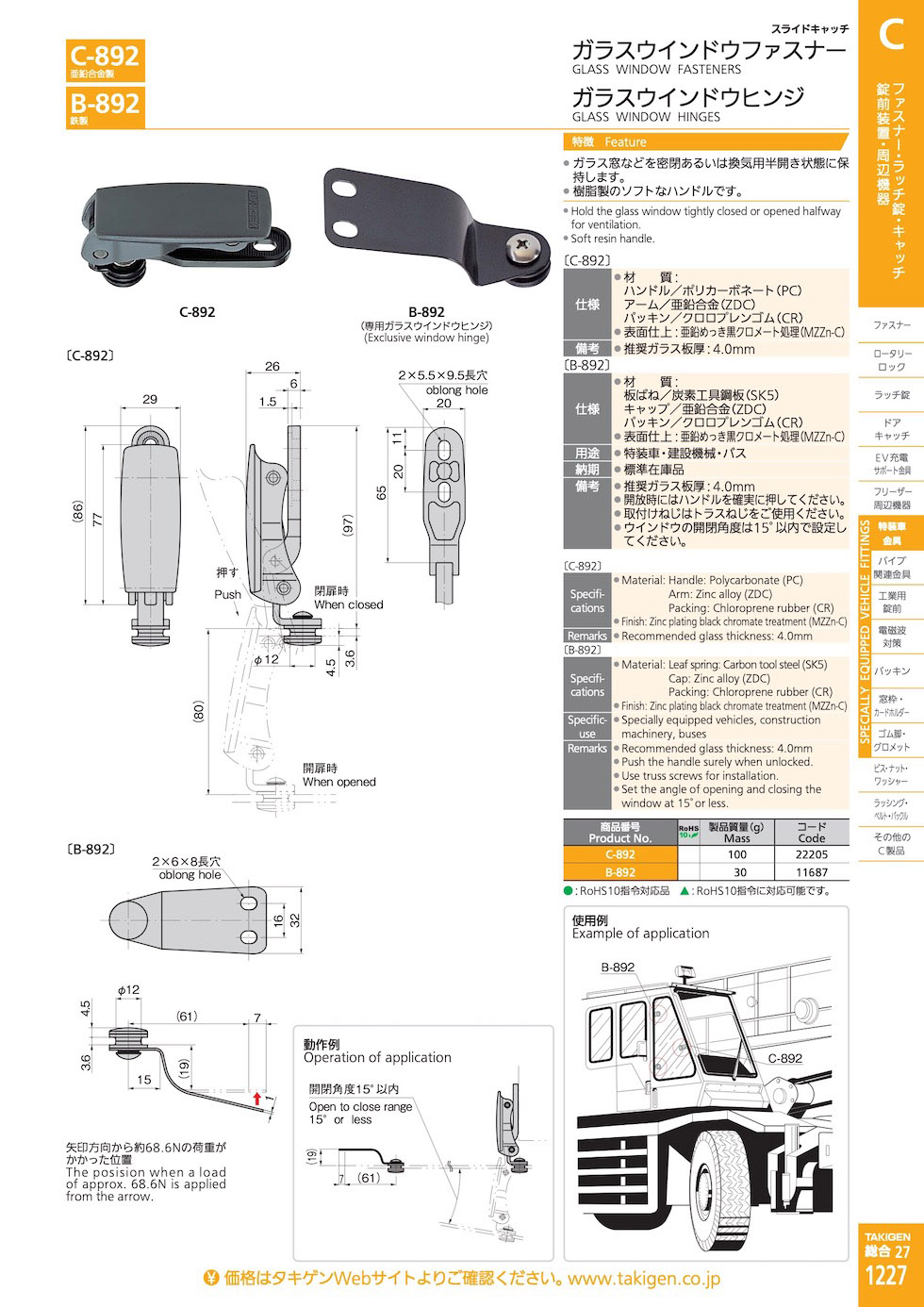

C-892
GLASS WINDOW FASTENERS
B-892
GLASS WINDOW HINGES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| C-892 | 22205 | |||||
| B-892 | 11687 | |||||
| B-892 | 11687 |
Features
- Hold the glass window tightly closed or opened halfway for ventilation.
- Soft resin handle.
Specifications
-
C-892
- Material: Handle: Polycarbonate (PC)
Arm: Zinc alloy (ZDC)
Packing: Chloroprene rubber (CR) - Finish: Zinc plating black chromate treatment (MZZn-C)
-
B-892
- Material: Leaf spring: Carbon tool steel (SK5)
Cap: Zinc alloy (ZDC)
Packing: Chloroprene rubber (CR) - Finish: Zinc plating black chromate treatment (MZZn-C)
Specific Use
- Specially equipped vehicles, construction machinery, buses
Remarks
- Recommended glass thickness: 4.0mm
- Push the handle surely when unlocked.
- Use truss screws for installation.
- Set the angle of opening and closing the window at 15°or less.
