K-251-HD

SLIDE RAILS WITH HOLDING MECHANISM

SLIDE RAILS WITH HOLDING MECHANISM

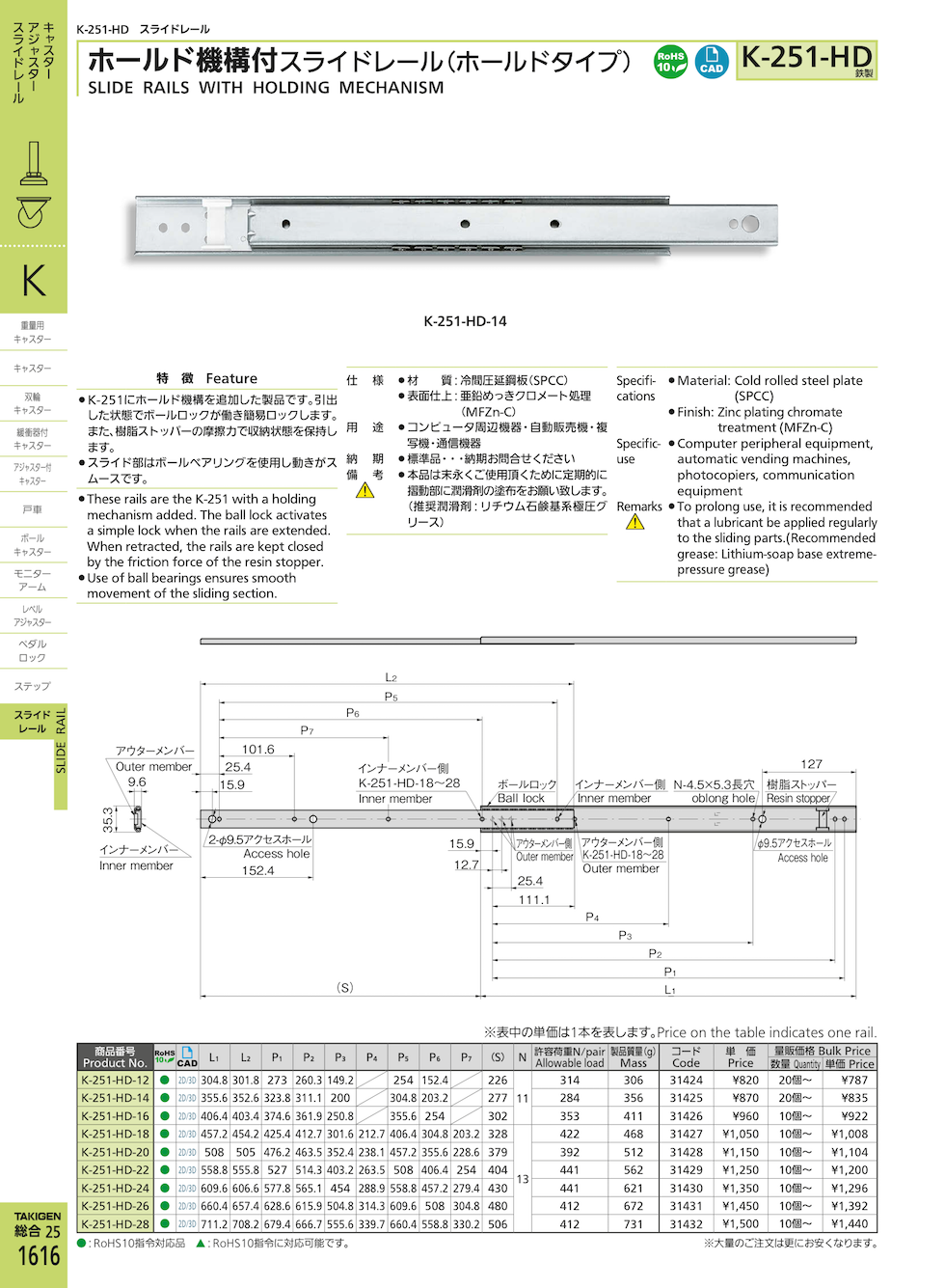

SLIDE RAILS WITH HOLDING MECHANISM Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
K-251-HD-12 31424

Request for Quote

K-251-HD-14 31425

Request for Quote

K-251-HD-16 31426

Request for Quote

K-251-HD-18 31427

Request for Quote

K-251-HD-20 31428

Request for Quote

K-251-HD-22 31429

Request for Quote

K-251-HD-24 31430

Request for Quote

K-251-HD-26 31431

Request for Quote

K-251-HD-28 31432

Request for Quote

Features

    • These rails are the K-251 with a holding mechanism added. The ball lock activates a simple lock when the rails are extended. When retracted, the rails are kept closed by the friction force of the resin stopper.
    • Use of ball bearings ensures smooth movement of the sliding section.

Specifications

    • Material: Cold rolled steel plate (SPCC)
    • Finish: Zinc plating chromate treatment (MFZn-C)

Specific Use

    • Computer peripheral equipment, automatic vending machines, photocopiers, communication equipment

Remarks

    • To prolong use, it is recommended that a lubricant be applied regularly to the sliding parts.(Recommended grease: Lithium-soap base extreme-pressure grease)
