K-1560G

CASTERS WITH SHOCK ABSORBERS

K-1560R

CASTERS WITH SHOCK ABSORBERS

CASTERS WITH SHOCK ABSORBERS

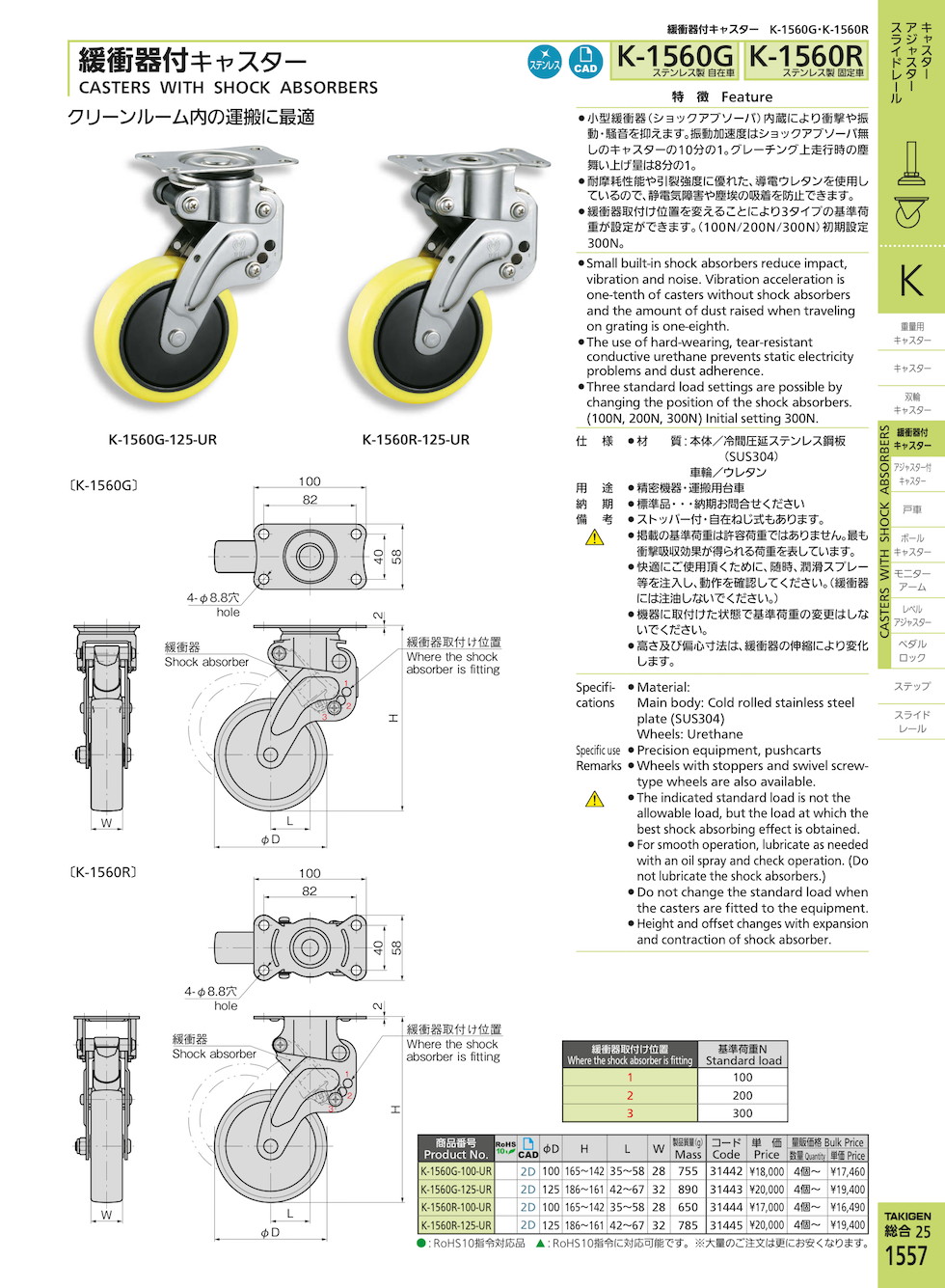

CASTERS WITH SHOCK ABSORBERS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
K-1560G-100-UR 31442

Request for Quote

K-1560G-125-UR 31443

Request for Quote

K-1560R-100-UR 31444

Request for Quote

K-1560R-125-UR 31445

Request for Quote

Features

    • Small built-in shock absorbers reduce impact, vibration and noise. Vibration acceleration is one-tenth of casters without shock absorbers and the amount of dust raised when traveling on grating is one-eighth.
    • The use of hard-wearing, tear-resistant conductive urethane prevents static electricity problems and dust adherence.
    • Three standard load settings are possible by changing the position of the shock absorbers. (100N, 200N, 300N) Initial setting 300N.

Specifications

    • Material:
      Main body: Cold rolled stainless steel plate (SUS304)
      Wheels: Urethane

Specific Use

    • Precision equipment, pushcarts

Remarks

    • Wheels with stoppers and swivel screw-type wheels are also available.
    • The indicated standard load is not the allowable load, but the load at which the best shock absorbing effect is obtained.
    • For smooth operation, lubricate as needed with an oil spray and check operation. (Do not lubricate the shock absorbers.)
    • Do not change the standard load when the casters are fitted to the equipment.
    • Height and offset changes with expansion and contraction of shock absorber.
