KC-1280

FLAME-RETARDANT AND CONDUCTIVE LEVEL ADJUSTERS

KC-280

FLAME-RETARDANT AND CONDUCTIVE LEVEL ADJUSTERS

KC-1280-E

FLAME-RETARDANT AND CONDUCTIVE LEVEL ADJUSTERS

FLAME-RETARDANT AND CONDUCTIVE LEVEL ADJUSTERS

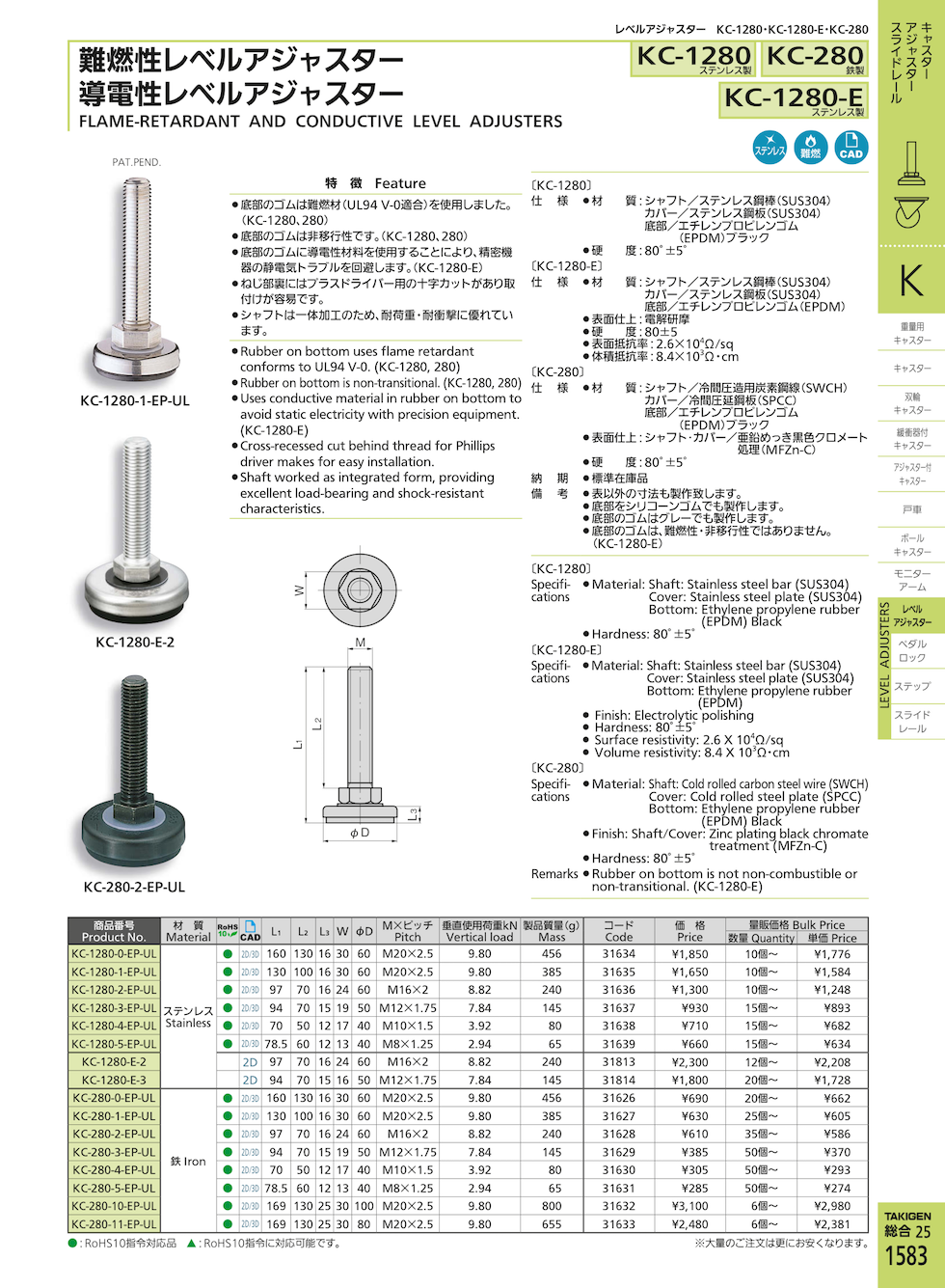

FLAME-RETARDANT AND CONDUCTIVE LEVEL ADJUSTERS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
KC-1280-0-EP-UL 31634

Request for Quote

KC-1280-1-EP-UL 31635

Request for Quote

KC-1280-2-EP-UL 31636

Request for Quote

KC-1280-3-EP-UL 31637

Request for Quote

KC-1280-4-EP-UL 31638

Request for Quote

KC-1280-5-EP-UL 31639

Request for Quote

KC-1280-E-2 31813

Request for Quote

KC-1280-E-3 31814

Request for Quote

KC-280-0-EP-UL 31626

Request for Quote

KC-280-1-EP-UL 31627

Request for Quote

KC-280-2-EP-UL 31628

Request for Quote

KC-280-3-EP-UL 31629

Request for Quote

KC-280-4-EP-UL 31630

Request for Quote

KC-280-5-EP-UL 31631

Request for Quote

KC-280-10-EP-UL 31632

Request for Quote

KC-280-11-EP-UL 31633

Request for Quote

Features

    • Rubber on bottom uses flame retardant conforms to UL94 V-0. (KC-1280, 280)
    • Rubber on bottom is non-transitional. (KC-1280, 280)
    • Uses conductive material in rubber on bottom to avoid static electricity with precision equipment. (KC-1280-E)
    • Cross-recessed cut behind thread for Phillips driver makes for easy installation.
    • Shaft worked as integrated form, providing excellent load-bearing and shock-resistant characteristics.

Specifications

    KC-1280
    • Material: Shaft: Stainless steel bar (SUS304)
      Cover: Stainless steel plate (SUS304)
      Bottom: Ethylene propylene rubber (EPDM) Black
    • Hardness: 80°±5°

    KC-280
    • Material: Shaft: Cold rolled carbon steel wire (SWCH)
      Cover: Cold rolled steel plate (SPCC)
      Bottom: Ethylene propylene rubber (EPDM) Black
    • Finish: Shaft/Cover: Zinc plating black chromate treatment (MFZn-C)
    • Hardness: 80°±5°

    KC-1280-E
    • Material: Shaft: Stainless steel bar (SUS304)
      Cover: Stainless steel plate (SUS304)
      Bottom: Ethylene propylene rubber (EPDM)
    • Finish: Electrolytic polishing
    • Hardness: 80°±5°
    • Surface resistivity: 2.6 X 104Ω/sq
    • Volume resistivity: 8.4 X 103Ω·cm

Remarks

    • Rubber on bottom is not non-combustible or non-transitional. (KC-1280-E)
