LE-500

SURFACE-MOUNTING ELECTRIC LOCK

SURFACE-MOUNTING ELECTRIC LOCK

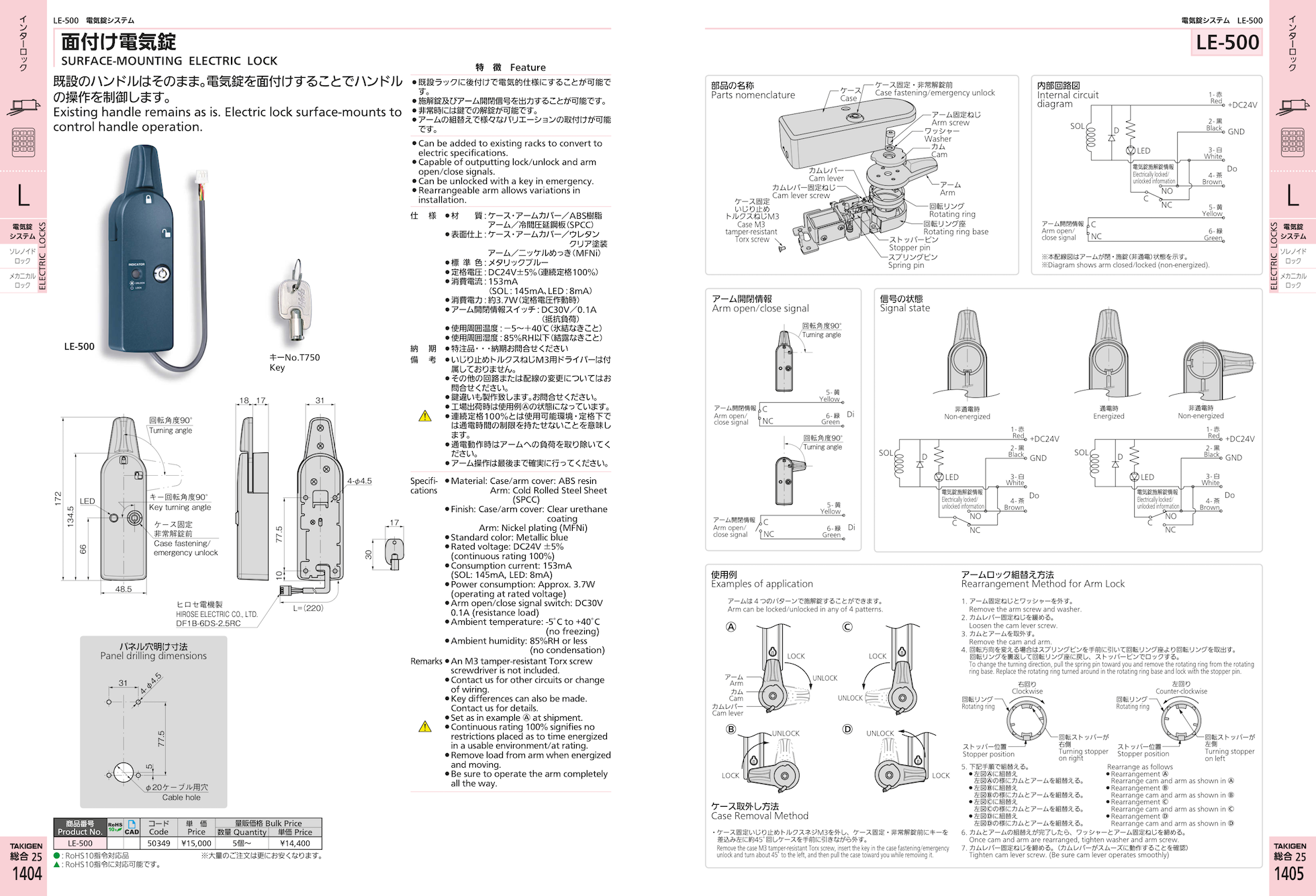

SURFACE-MOUNTING ELECTRIC LOCK Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
LE-500 50349

Request for Quote

Features

    • Can be added to existing racks to convert to electric specifications.
    • Capable of outputting lock/unlock and arm open/close signals.
    • Can be unlocked with a key in emergency.
    • Rearrangeable arm allows variations in installation.

Specifications

    • Material: Case/arm cover: ABS resin
      Arm: Cold Rolled Steel Sheet (SPCC)
    • Finish: Case/arm cover: Clear urethane coating
      Arm: Nickel plating (MFNi)
    • Standard color: Metallic blue
    • Rated voltage: DC24V ±5% (continuous rating 100%)
    • Consumption current: 153mA
      (SOL: 145mA, LED: 8mA)
    • Power consumption: Approx. 3.7W (operating at rated voltage)
    • Arm open/close signal switch: DC30V 0.1A (resistance load)
    • Ambient temperature: -5°C to +40°C (no freezing)
    • Ambient humidity: 85%RH or less
      (no condensation)

Remarks

    • An M3 tamper-resistant Torx screw screwdriver is not included.
    • Contact us for other circuits or change of wiring.
    • Key differences can also be made. Contact us for details.
    • Set as in example (A) at shipment.
    • Continuous rating 100% signifies no restrictions placed as to time energized in a usable environment/at rating.
    • Remove load from arm when energized and moving.
    • Be sure to operate the arm completely all the way.
