FE-462-0

GRILL FOR LARGE-SIZE PANELS

GRILL FOR LARGE-SIZE PANELS

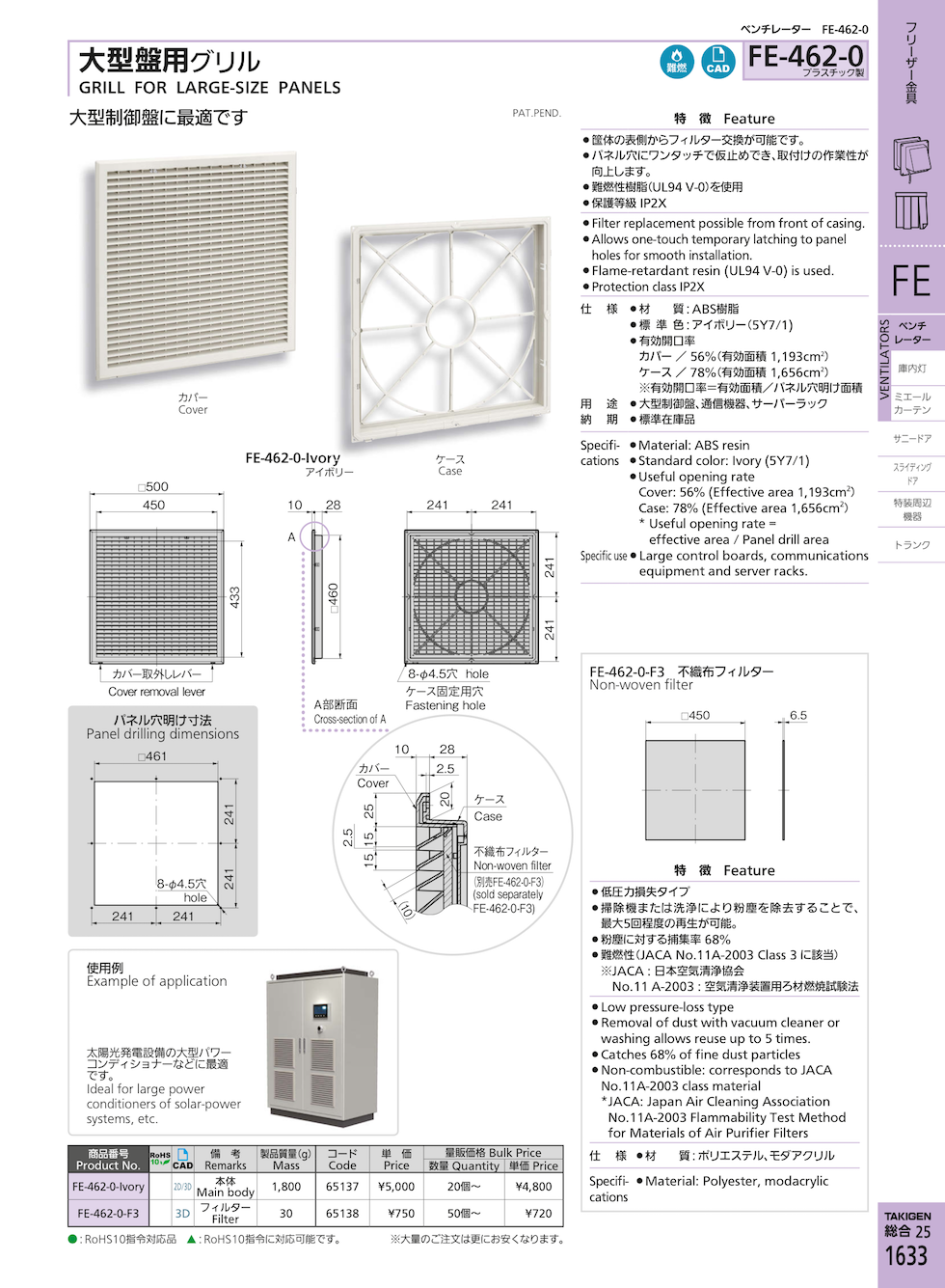

GRILL FOR LARGE-SIZE PANELS Spec Sheet
Product No. RoHS Remarks Code Ask Price 2D 3D
FE-462-0-Ivory Main body Ivory 65137

Request for Quote

FE-462-0-F3 Filter 65138

Request for Quote

Features

    • Filter replacement possible from front of casing.
    • Allows one-touch temporary latching to panel holes for smooth installation.
    • Flame-retardant resin (UL94 V-0) is used.
    • Protection class IP2X

Specifications

    • Material: ABS resin
    • Standard color: Ivory (5Y7/1)
    • Useful opening rate
      Cover: 56% (Effective area 1,193cm2)
      Case: 78% (Effective area 1,656cm2)
      * Useful opening rate =
      effective area / Panel drill area

Specific Use

    • Large control boards, communications equipment and server racks.
