A-1372-F
WATERPROOF DOUBLE-LOCK HANDLES
A-372-F
WATERPROOF DOUBLE-LOCK HANDLES
A-372-S
WATERPROOF DOUBLE-LOCK HANDLES
A-372-RC
WATERPROOF DOUBLE-LOCK HANDLES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| A-1372-F-1-TAK60 |
|
04145 | ||||
| A-1372-F-1 |
|
04506 | ||||
| A-1372-F-2-TAK60 |
|
04146 | ||||
| A-1372-F-2 |
|
04507 | ||||
| A-1372-F-3-TAK60 |
|
04147 | ||||
| A-1372-F-3 |
|
04508 | ||||
| A-372-F-1-TAK60 |
|
04063 | ||||
| A-372-F-1 |
|
04328 | ||||
| A-372-F-2-TAK60 |
|
04064 | ||||
| A-372-F-2 |
|
04329 | ||||
| A-372-F-3-TAK60 |
|
04065 | ||||
| A-372-F-3 |
|
04330 | ||||
| A-372-3-S | 03196 | |||||
| A-372-1-H |
|
00376 | ||||
| A-372-2 ・3-H |
|
01664 | ||||
| A-372-RC-1-F |
|
03740 | ||||
| A-372-RC-2-F |
|
03741 | ||||
| A-372-RC-3-F |
|
03742 |
Features
- Safety mechanism: locked/unlocked by both key and insertion/removing handle.
- The lock comes standard with the TAK60, a new-style reversible key with an easy-to-use dustproof shutter.
- It is made of stainless steel for great corrosion resistance. (A-1372-F)
- Waterproof (using O-ring and sheet packing)
- For both left-hand and right-hand use. (standard: the right-hand use. Specify the left-hand use as needed.)
Specifications
-
A-372-S · A-372-F · A-1372-F
- Material: A-1372-F: Cast stainless steel (SUS304)
A-372-F・A-372-3-S: Aluminum alloy (ADC) - Finish: A-1372-F: Hairline finish
A-372-F・A-372-3-S: Silver metallic coating - Key No.: TAK60
- Accessories: Two keys, big nut, screws.
-

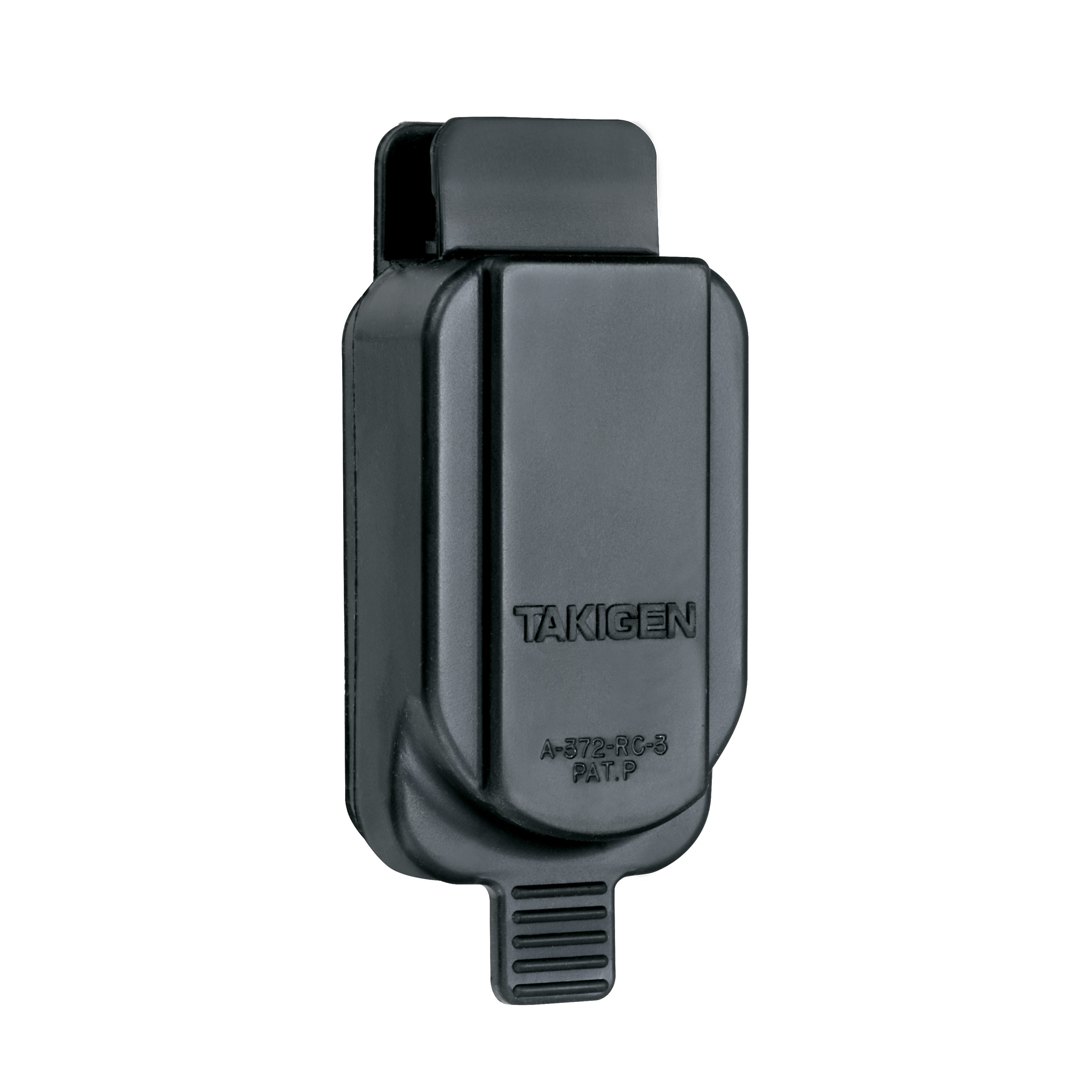

A-372-RC
- Material: Ethylene Propylene rubber (EPDM)
Specific Use
- Cubicles, distribution boards, control boards etc.
Remarks
- It is recommended that thread-locking fluid be used to prevent loosening of the mounting screws for the catch.
