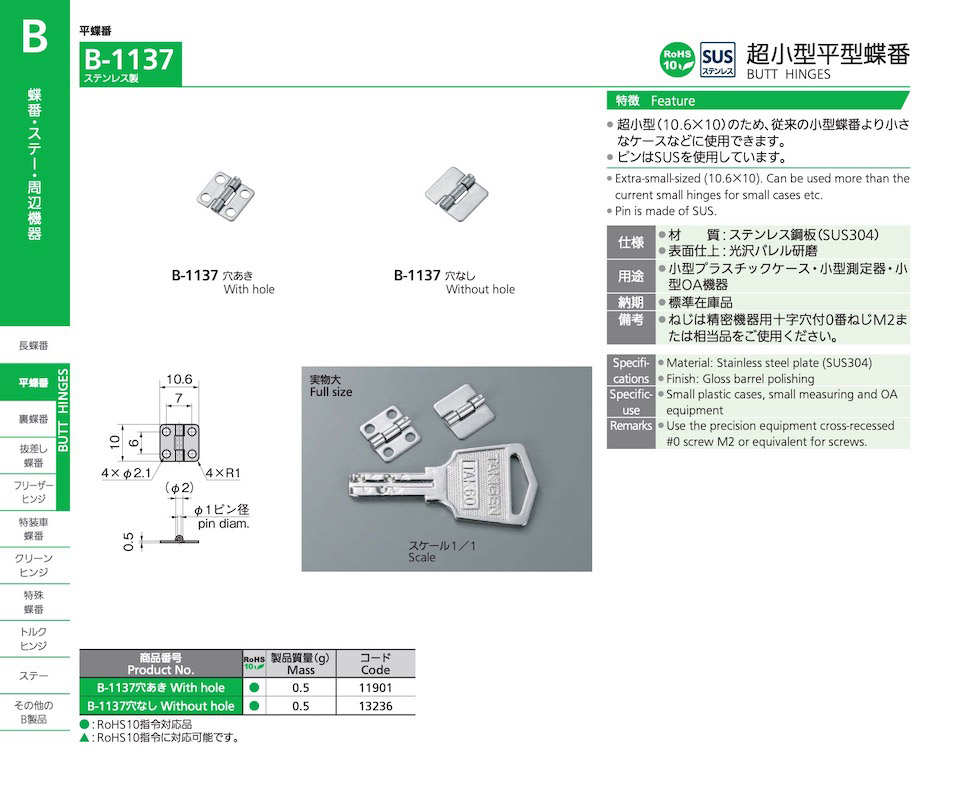

B-1137
BUTT HINGES
Catalogue View
| Product No. | RoHS | Remarks | Code | Ask Price | 2D | 3D |
|---|---|---|---|---|---|---|
| B-1137 |
|
With hole | 11901 | |||
| B-1137 |
|
Without hole | 13236 |
Features
- Extra-small-sized (10.6×10). Can be used more than the current small hinges for small cases etc.
- Pin is made of SUS.
Specifications
- Mass: 0.5g
- Material: Stainless steel plate (SUS304)
- Finish: Gloss barrel polishing
Specific Use
- Small plastic cases, small measuring and OA equipment
Remarks
- Use the precision equipment cross-recessed #0 screw M2 or equivalent for screws.
