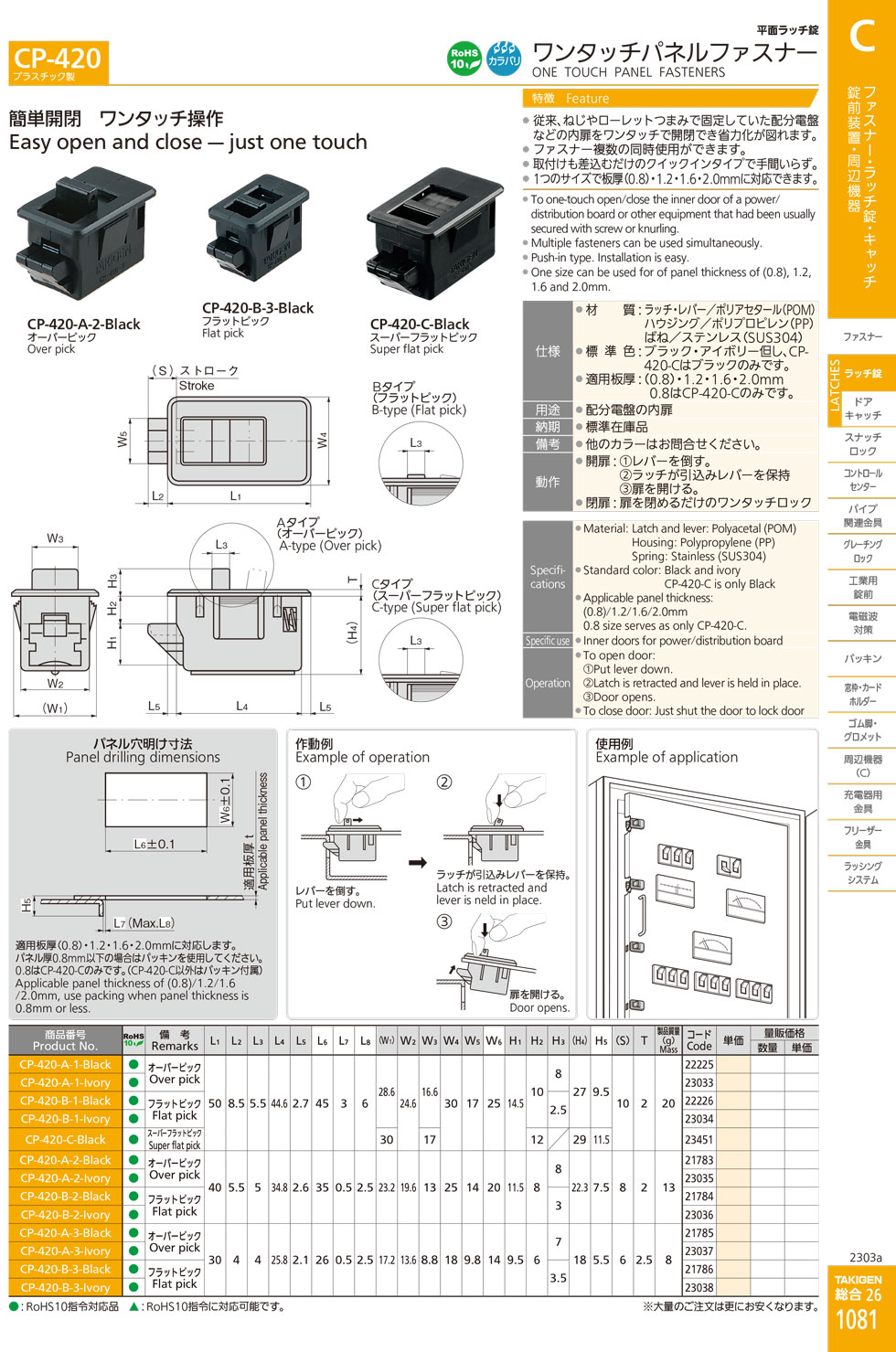

ONE TOUCH PANEL FASTENERS Spec Sheet
Product No.	Remarks	Code	Ask Price	2D	3D
CP-420-A-1-Black	Over pick　Black	22225	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-A-1-Ivory	Over pick　Ivory	23033	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-B-1-Black	Flat pick　Black	22226	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-B-1-Ivory	Flat pick　Ivory	23034	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-C-Black	Super flat pick　Black	23451	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-A-2-Black	Over pick　Black	21783	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-A-2-Ivory	Over pick　Ivory	23035	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-B-2-Black	Flat pick　Black	21784	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-B-2-Ivory	Flat pick　Ivory	23036	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-A-3-Black	Over pick　Black	21785	Request for Quote	DXF
CP-420-A-3-Ivory	Over pick　Ivory	23037	Request for Quote	DXF
CP-420-B-3-Black	Flat pick　Black	21786	Request for Quote	DXF	SAT STEP X_T IGS
CP-420-B-3-Ivory	Flat pick　Ivory	23038	Request for Quote	DXF	SAT STEP X_T IGS

To one-touch open/close the inner door of a power/distribution board or other equipment that had been usually secured with screw or knurling.
Multiple fasteners can be used simultaneously.
Push-in type. Installation is easy.
One size can be used for of panel thickness of (0.8), 1.2, 1.6 and 2.0mm.

Material: Latch and lever: Polyacetal (POM)
Housing: Polypropylene (PP)
Spring: Stainless (SUS304)
Standard color: Black and ivory
CP-420-C is only Black
Applicable panel thickness: (0.8)/1.2/1.6/2.0mm
0.8 size serves as only CP-420-C.
